Product Description

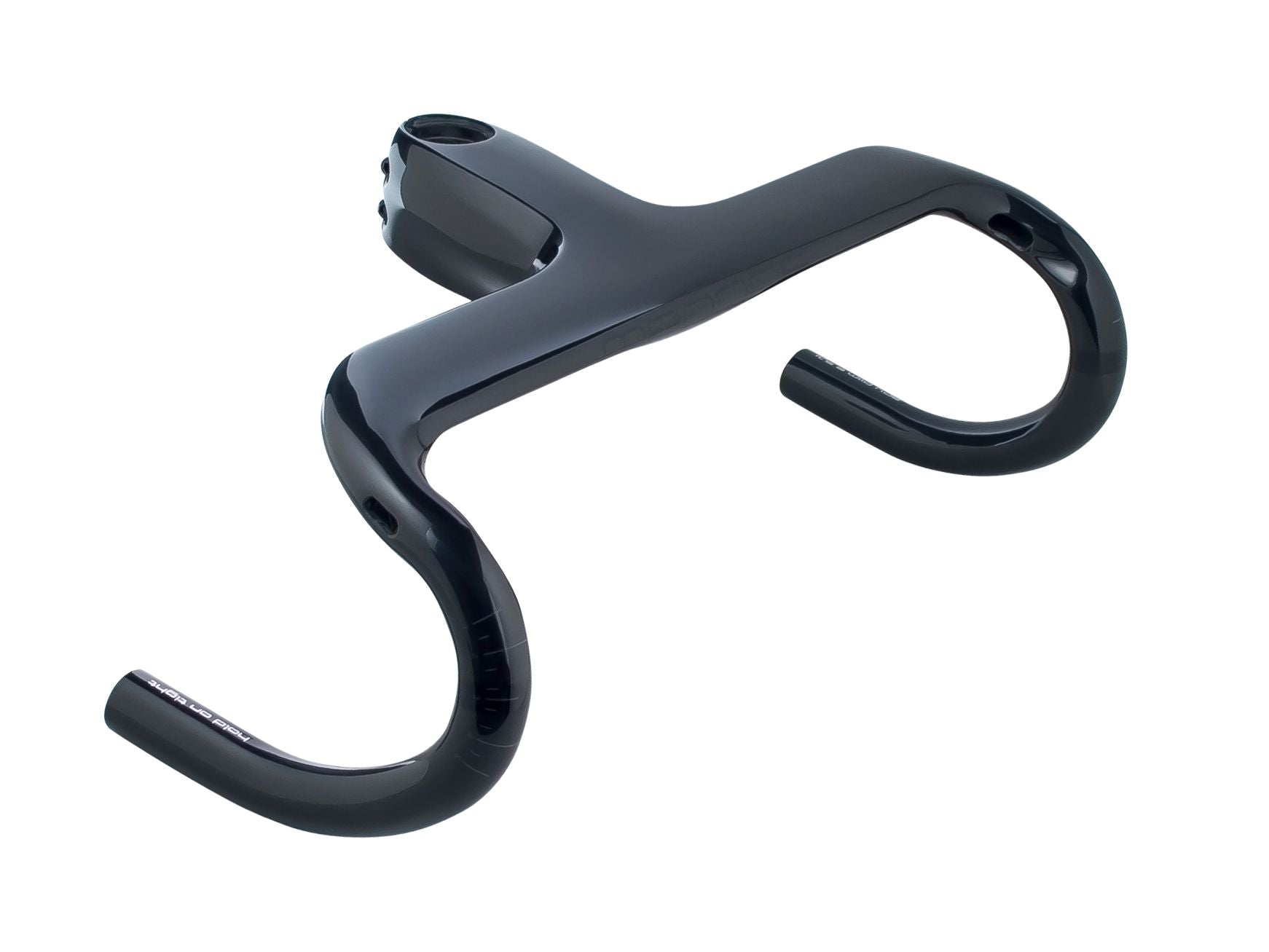

The Trek Madone KVF Aero Integrated Handlebar/Stem is the original-equipment integrated cockpit designed specifically for 2016+ Trek Madone 9-Series bikes.
Constructed from 100% OCLV carbon fiber, the integrated design combines Trek's KVF aerodynamic shaping with a stiff, lightweight one-piece bar and stem. The VR-CF bend provides wrist clearance while riding in the drops, and internal cable routing maintains the clean aerodynamic profile of the Madone cockpit.
Available in multiple handlebar widths and stem lengths. Select your required size from the variation menu.
Important Compatibility Note
This is the earlier Trek Madone 9-Series KVF integrated bar/stem system.
It should not be confused with the integrated cockpits used on later Trek Madone Gen 6, Gen 7, or Gen 8 bikes. It is also not safe to assume compatibility based solely on a bike being labeled Madone SLR or SLR 9.
Trek specifies this component for the 2016+ Madone 9-Series platform and states that it is not compatible with other bikes.
Available Variations
| Hood / Drop Width |
Stem Length |
Weight |
| 400mm / 400mm |
90mm |
333g |
| 400mm / 400mm |
100mm |
340g |
| 400mm / 400mm |
110mm |
347g |
| 400mm / 400mm |
120mm |
354g |
| 420mm / 420mm |
90mm |
343g |
| 420mm / 420mm |
100mm |
350g |
| 420mm / 420mm |
110mm |
357g |
| 420mm / 420mm |
120mm |
364g |
| 420mm / 420mm |
130mm |
371g |
| 440mm / 440mm |
90mm |
353g |
| 440mm / 440mm |
100mm |
360g |
| 440mm / 440mm |
110mm |
367g |
| 440mm / 440mm |
120mm |
374g |
Key Features
-
Original-equipment cockpit for 2016+ Trek Madone 9-Series
-
Integrated handlebar and stem construction
-
100% OCLV carbon fiber
-
Trek KVF aerodynamic shaping
-
VR-CF Variable Radius Compact Flare bend
-
Internal cable routing
-
123mm drop
-
93mm reach
-
0° drop flare
-
Hood and drop widths are equal
-
Compatible with applicable Blendr accessory bases and mounts
-
Blendr accessories sold separately
-
Multiple width and stem-length combinations available
Specifications
-
Brand: Trek
-
Model: Madone KVF Aero Integrated Handlebar/Stem
-
Product Type: Integrated Road Handlebar / Stem
-
Intended Platform: 2016+ Trek Madone 9-Series
-
Material: OCLV Carbon
-
Bend: VR-CF
-
Reach: 93mm
-
Drop: 123mm
-
Drop Flare: 0°
-
Cable Routing: Internal
-
Width Options: 400mm, 420mm, 440mm
-
Stem Length Options: 90mm, 100mm, 110mm, 120mm, 130mm depending on width
-
Color: Dnister Black
Compatibility
Specifically designed for the proprietary cockpit system used on compatible 2016+ Trek Madone 9-Series bikes.
Not intended as a universal integrated road bar/stem.
Not for:
-
Trek Madone Gen 6 cockpit systems
-
Trek Madone Gen 7 cockpit systems
-
Trek Madone Gen 8 cockpit systems
-
Other Trek road bike platforms
-
Standard 31.8mm stem applications
Because several generations of Madone use completely different cockpit designs, buyers should confirm the exact bike generation and original cockpit before ordering.
