Product Description

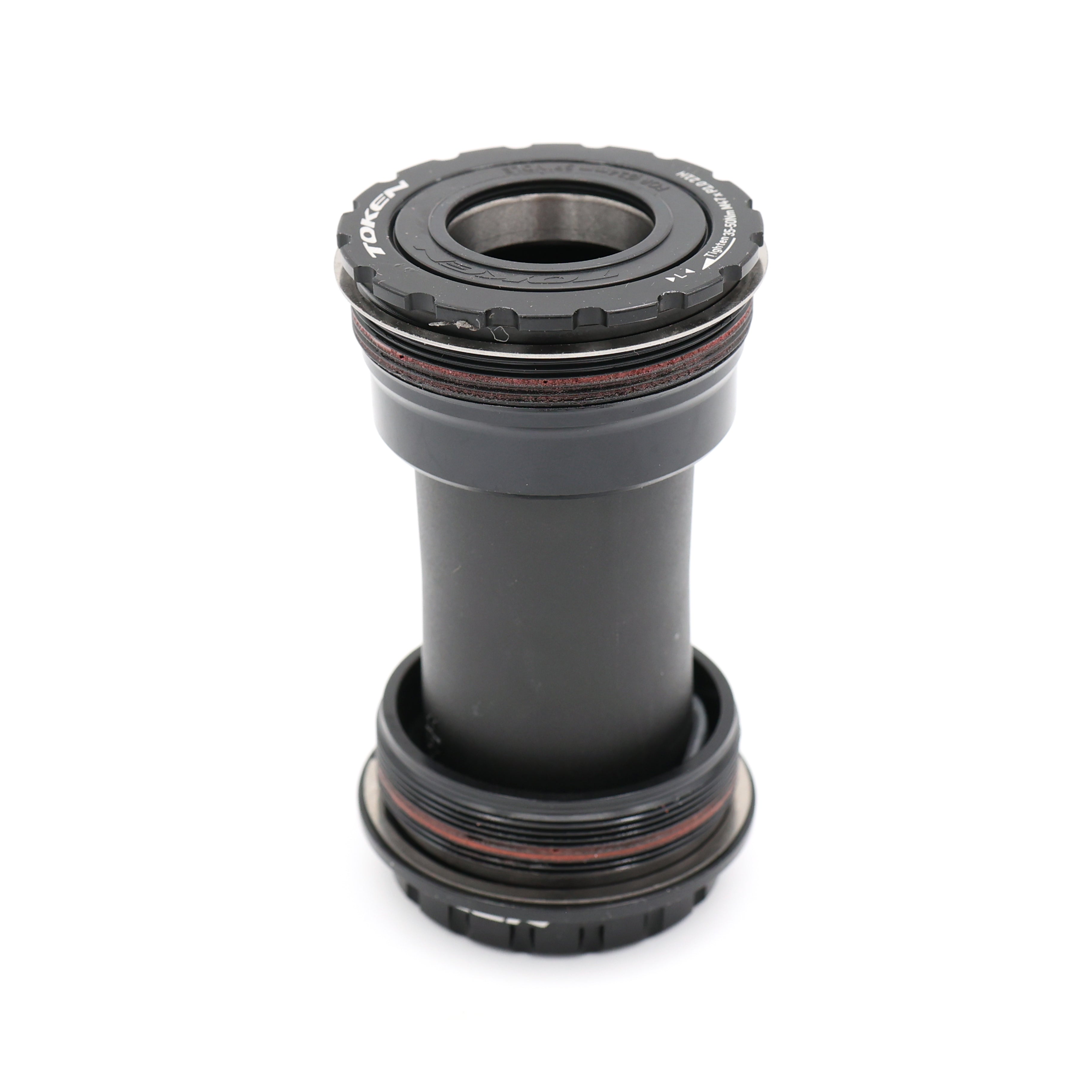

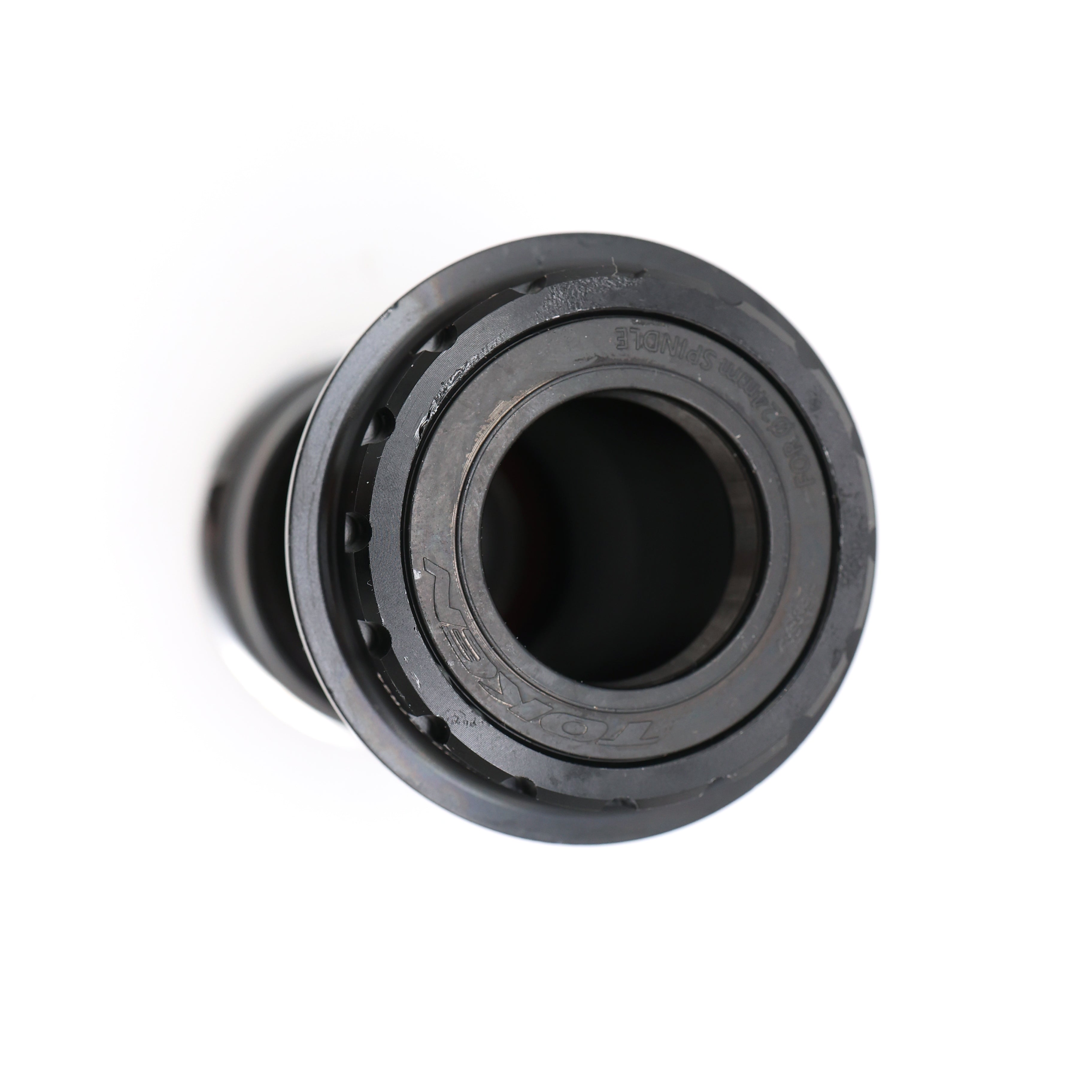

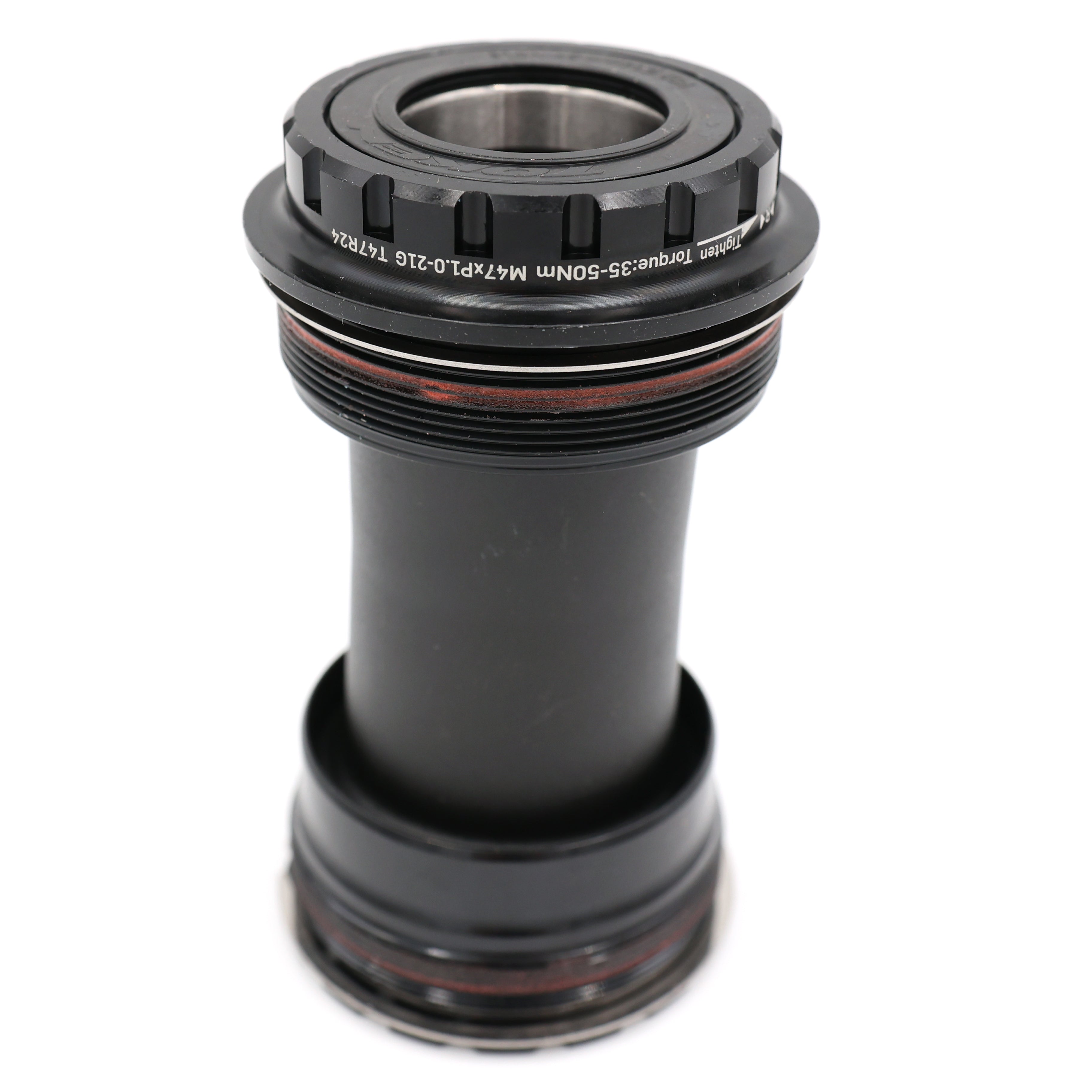

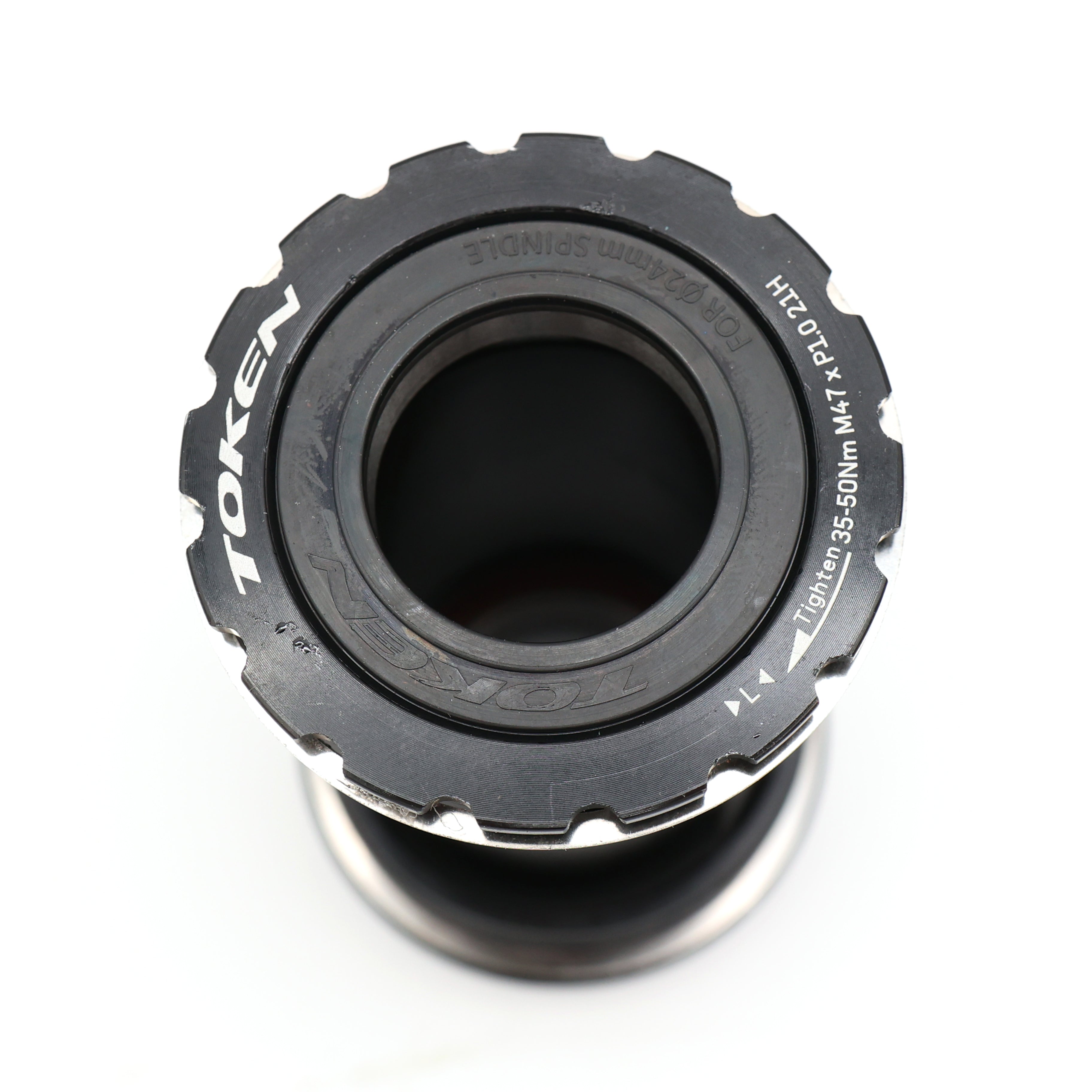

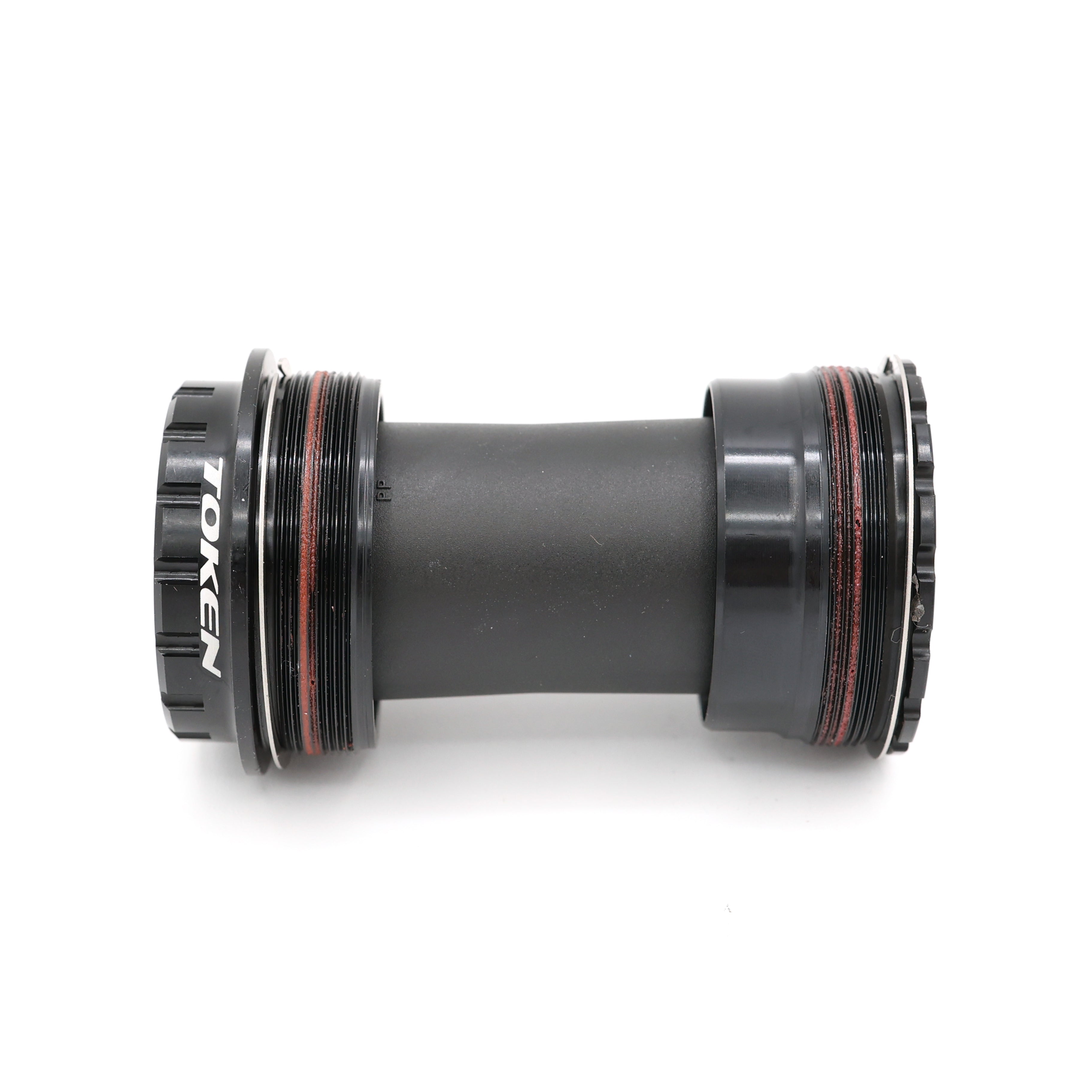

The TOKEN BB47A24 is a threaded bottom bracket designed specifically for T47A / T47 Asymmetric frames and Shimano cranksets using a 24mm spindle.
This version uses TOKEN’s Premium high-carbon steel bearings, not the ceramic TBT bearing upgrade. TOKEN’s X-Seal system helps protect the bearings from water and contamination while maintaining smooth rotation.
This bottom bracket was removed from a new bicycle and is being sold as a new take-off.
Key Features
- TOKEN BB47A24
- Designed for T47A / T47 Asymmetric frames
- Compatible with Shimano 24mm spindle cranksets
- Premium high-carbon steel bearings
-
Non-ceramic version
- TOKEN X-Seal bearing protection
- Threaded installation
- Black finish
Specifications
- Brand: TOKEN
- Model: BB47A24
- Product Type: Threaded Bottom Bracket
- Frame Standard: T47 Asymmetric / T47A
- Frame Interface: M47 x 76.75mm
- Crank Compatibility: Shimano 24mm
- Spindle Diameter: 24mm
- Bearing Type: Premium High-Carbon Steel
- Ceramic Bearings: No
- Bearing Size: 37 x 24 x 7mm
- Cup Tool Interface: 48.5mm OD, 16-notch
- Color: Black
- Claimed Weight: 123g
- TOKEN Tool: TF4630-3SPA-2
- Compatible Park Tool: BBT-27.3
Compatibility
Designed for frames using the T47 Asymmetric M47 x 76.75mm bottom bracket standard and compatible Shimano cranksets with a straight 24mm spindle.
Common Shimano 24mm crank systems include applicable Hollowtech II road and gravel cranksets, provided the frame itself uses the correct T47A shell.
Important Fitment Note
T47A is not the same as every T47 bottom bracket standard.
TOKEN offers separate T47 bottom brackets for:
- T47A Asymmetric, 76.75mm
- T47 Inboard
- T47 Outboard 68/73mm
Confirm that your frame specifically uses the T47 Asymmetric / T47A standard before ordering.
Included
- TOKEN BB47A24 drive-side cup/bearing
- TOKEN BB47A24 non-drive-side cup/bearing
- Center sleeve/seals as installed and shown
Condition
- New take-off
- Removed from a new bicycle prior to use
- Standard Premium steel bearings, not ceramic
- May show minor installation/removal marks on the cups, tool interface, or threads
- No known functional issues
- Non-retail packaged
