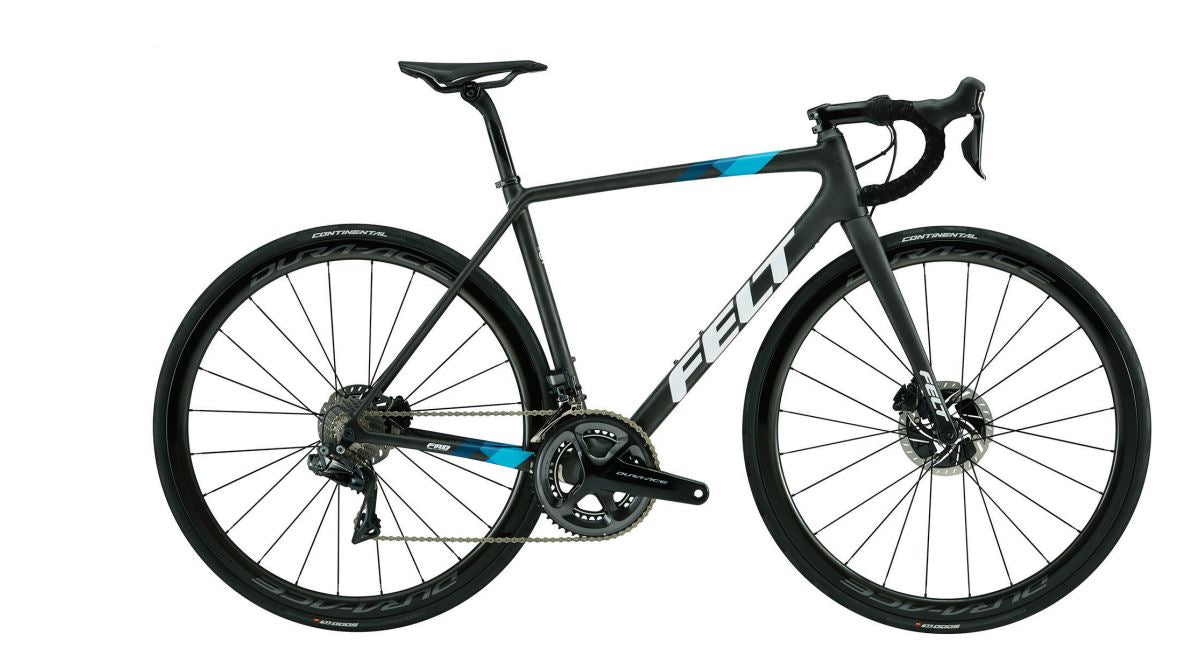

Felt FR FRD | Ultimate | Dura-Ace Di2 11-Speed | 43cm
The FR FRD Ultimate is Felt’s top-tier race platform built for riders who want a pure road race bike feel: light on the climb, razor precise in corners, and rock solid when you are pushing the pace. This build pairs the UHC Ultimate + TeXtreme carbon frameset with Shimano Dura-Ace Di2 for crisp, consistent electronic shifting and confident hydraulic disc braking.
Rolling on Shimano Dura-Ace C40 tubeless carbon wheels with Continental GP5000 TL 25c tires, this is a race-ready package built for fast group rides, climbing days, and high-level road events.
Product Specifications
Frameset
-
Frame: Felt Road 3.0, UHC Ultimate + TeXtreme carbon fiber
-
Fork: Felt Road 3.0, UHC Advanced + TeXtreme carbon fiber
-
Headset (43cm): IS (IS-2)
-
Thru Axles: 12x100 front, 12x142 rear
Brakes and Drivetrain
-
Speed: 2x11-speed
-
Shifters / Brake Levers: Shimano Dura-Ace Di2 ST-R9170
-
Front Derailleur: Shimano Dura-Ace Di2 FD-R9150, braze-on
-
Rear Derailleur: Shimano Dura-Ace Di2 RD-R9150, short cage
-
Crankset: Shimano Dura-Ace FC-R9100, 52/36T
-
Bottom Bracket: CeramicSpeed EVO386 for Shimano Road
-
Cassette: Shimano Dura-Ace CS-R9100, 11-28T
-
Chain: Shimano Dura-Ace HG901
-
Brakes: Shimano Dura-Ace R9170 hydraulic disc, flat mount
-
Rotors: Shimano Dura-Ace RT900 Center Lock, 160mm front / 140mm rear
Wheels and Tires
-
Wheelset: Shimano Dura-Ace C40 Tubeless (R9170 series)
-
Tires: Continental Grand Prix 5000 TL, 700x25c
-
Tubeless Valves: Shimano tubeless valve stems included
Cockpit
Seating
Included Accessories
-
Shimano SM-BCR2 battery charger
-
Shimano hose fitting kit (2 olives and connector inserts)
-
Shimano tubeless valve stems
-
Carbon assembly paste
Sizing Guide (This listing is for 43cm)
Recommended Rider Height: 4'9" to 5'0" (144.7 to 152.4 cm)
Recommended Inseam: 26.5" to 28.0" (67.3 to 71.2 cm)
Geometry (43cm)
(A) Top Tube Length: 495 mm
(B) Seat Tube Length: 405 mm
(C) Seat Tube Angle: 75.25°
(D) Head Tube Length: 90 mm
(E) Steering Angle: 70.5°
(F) Chain Stay Length: 403 mm
(G) Wheel Base: 965 mm
(H) Standover Height: 657 mm
(I) BB Drop: 72 mm
(K) Fork Offset: 52 mm
(L) Stack: 499 mm
(M) Reach: 362 mm
(N) Stem Length: 80 mm
(O) Crank Length: 167.5 mm
Important Information
-
Bought direct from Felt
-
Ships in a factory box
-
Professional assembly is required due to the complexity of the aero front end and internal routing. An experienced road shop is strongly recommended.
-
Full Felt warranty applies when assembled by a brick-and-mortar bike shop. Keep your receipt for warranty support.
-
Max tire size is 28c (verify tire clearance based on tire model and rim width)
