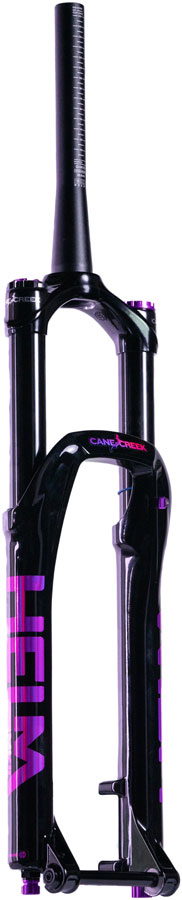

The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.
Key Features
- Compression and midvalve circuit offer increased support and control
- SKF oil seal head cartridge and wiper seals are low friction
- The redesigned air spring offers increased air volume for better traction and suppleness
- The threadless air seal head allows for easier travel change

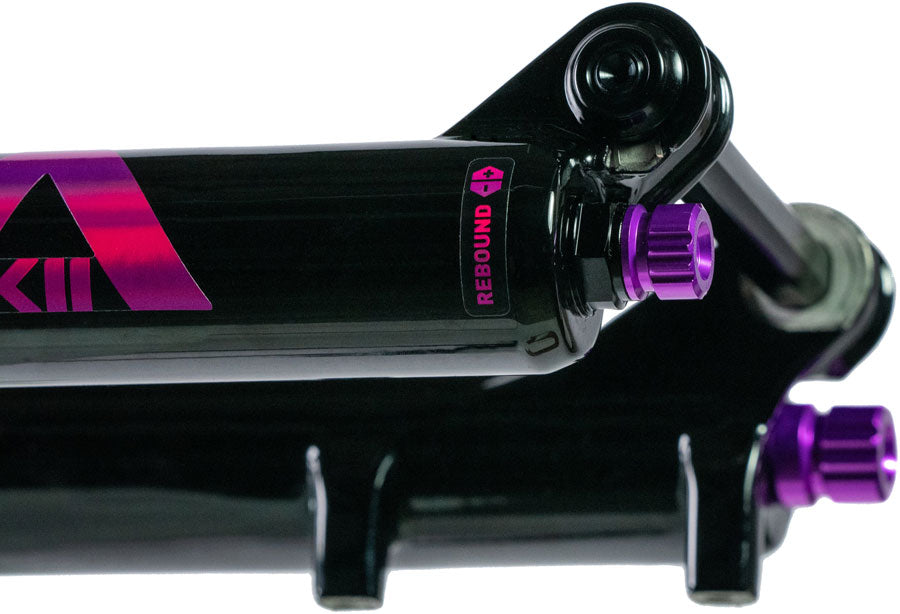

- Damping features include: high speed compression, low speed compression, and low speed rebound

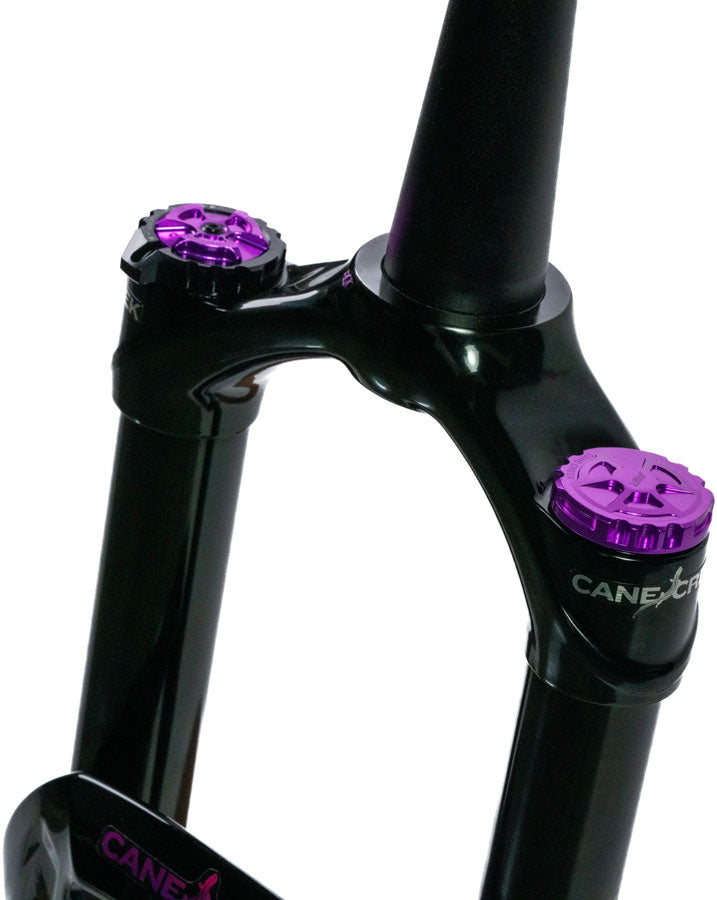

- Adjustment options include: high speed compression (10 positions), low speed compression (17 positions), Low speed rebound (10 positions), independent positive air spring, independent negative air spring, and an indexed travel system (8 positions)
- Double-Air spring system: high volume positive and negative air springs
- "D-Loc" 15mm bolt-on thru axle
Specifications
| Steerer Type |
Tapered |
| Brake Type |
Post Mount 180 |
| Negative Spring |
Air |
| Travel (mm) |
160 |
| Offset |
44 |
| Axle to Crown Length |
573 |
| Front Axle |
15mm Thru x 110mm |
| Maximum Tire Width |
65 |
| S.H.I.S. Stem Clamp Diameter |
28.6 |
| Color |
Black/Purple |
| Crown Race |
40 |
| Weight |
2080 |
| Wheel Size |
29" |
| External Adjustments |
High Speed Compression Damping |
| External Adjustments |
Low Speed Compression Damping |
| External Adjustments |
Rebound Damping |
| Defined Color |
Black |
| Positive Spring |
Air |
| Stanchion Diameter |
35 |
| Steerer Tube Length (mm) |
265 |
