Product Description

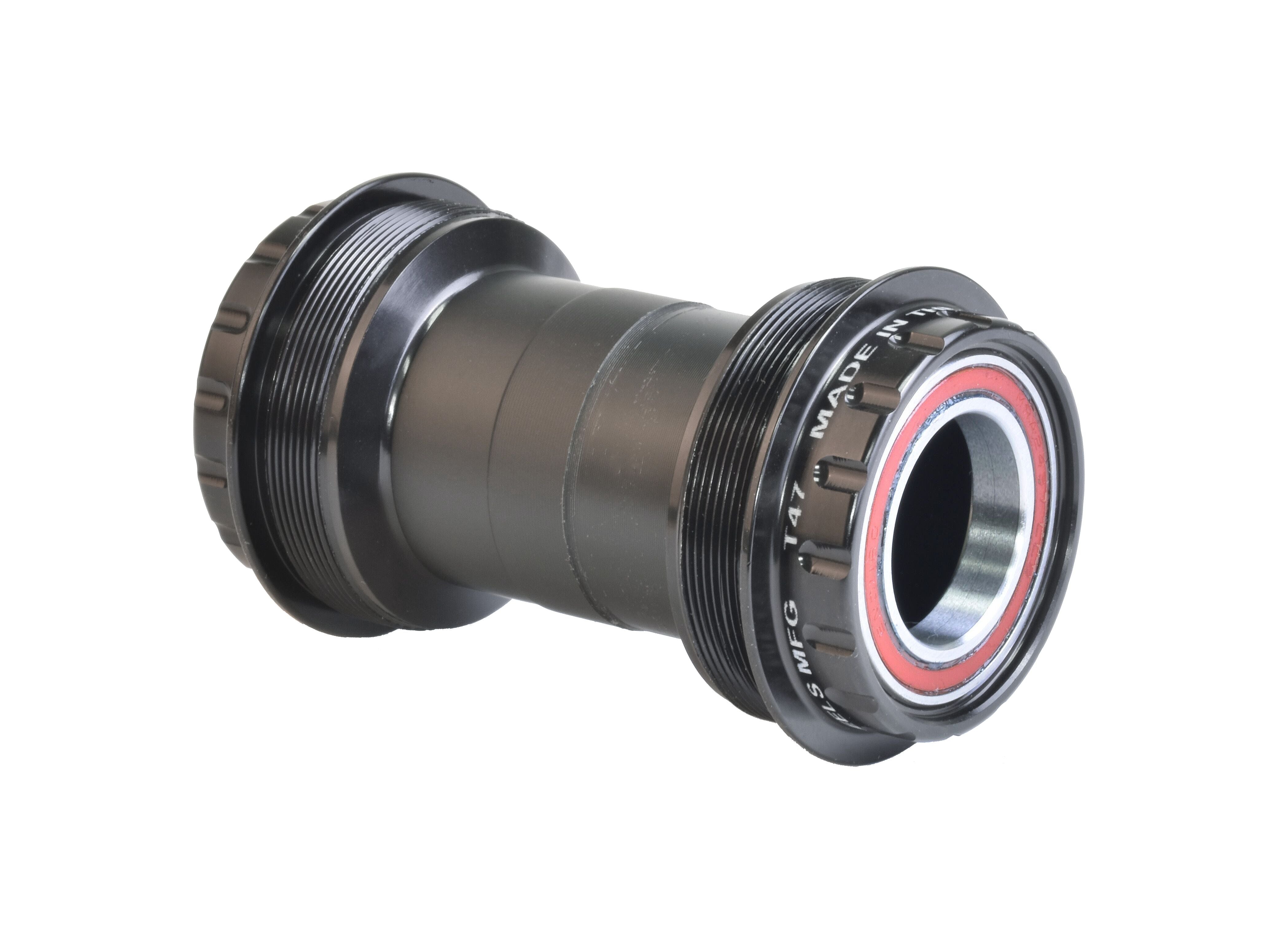

The Wheels Manufacturing T47 Outboard Bottom Bracket is designed for compatible T47 threaded frames and SRAM/Truvativ cranksets using the traditional 22/24mm stepped GXP spindle.
Machined aluminum cups thread directly into the frame and position the bearings outboard of the shell, similar to a traditional external BSA bottom bracket. High-quality Enduro angular contact bearings provide smooth support and can be serviced or replaced as needed.
This version is intended for T47 shells from 68mm through 100mm depending on the frame and crank configuration.
Key Features
-
Wheels Manufacturing T47 outboard bottom bracket
-
Designed for SRAM / Truvativ GXP 22/24mm spindles
-
Enduro angular contact bearings
-
Machined aluminum cups
-
Threaded T47 interface
-
Outboard bearing design
-
Serviceable and replaceable bearings
-
Compatible with multiple T47 shell widths
-
Black finish
Specifications
-
Brand: Wheels Manufacturing
-
Model: T47-OUT-SRAM-AC
-
Product Type: Threaded Bottom Bracket
-
Frame Interface: T47
-
Shell I.D.: 47mm
-
Shell Width Compatibility: 68 / 73 / 83 / 100mm
-
Spindle Interface: SRAM / Truvativ GXP
-
Spindle Diameter: 24mm drive side / 22mm non-drive side
-
Bearing Type: Angular Contact
-
Cup Material: Machined Aluminum
-
Color: Black
-
Claimed Weight: 162g
Compatibility
Designed for compatible T47-threaded frames and cranksets using the SRAM / Truvativ GXP stepped spindle standard.
Common applications include compatible SRAM and Truvativ GXP cranksets with:
This bottom bracket is not intended for:
Important Fitment Note
T47 bottom brackets are available in several cup and shell configurations. Confirm your frame uses a T47 threaded shell and that your crankset uses the 22/24mm GXP spindle before ordering.
Included
Condition
