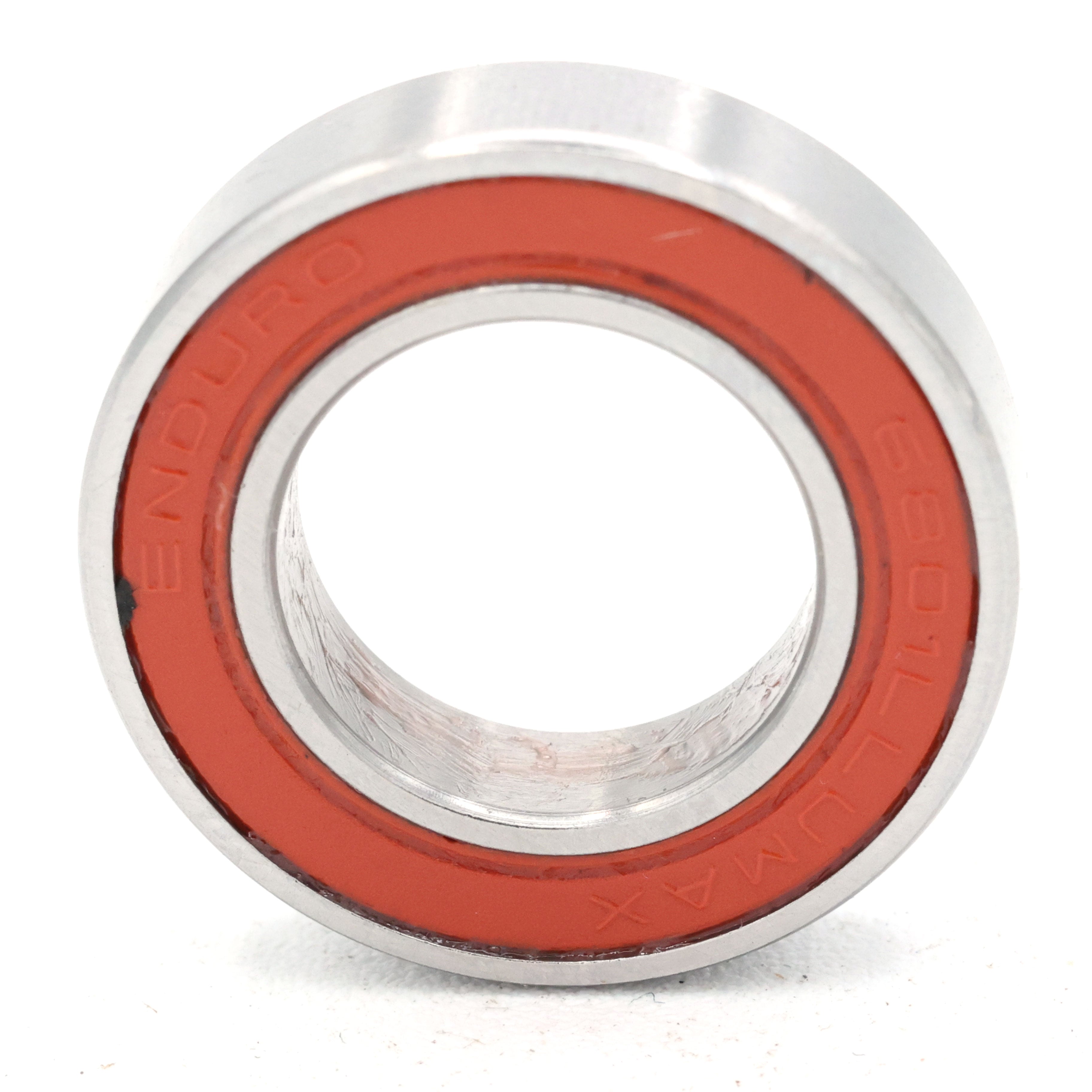

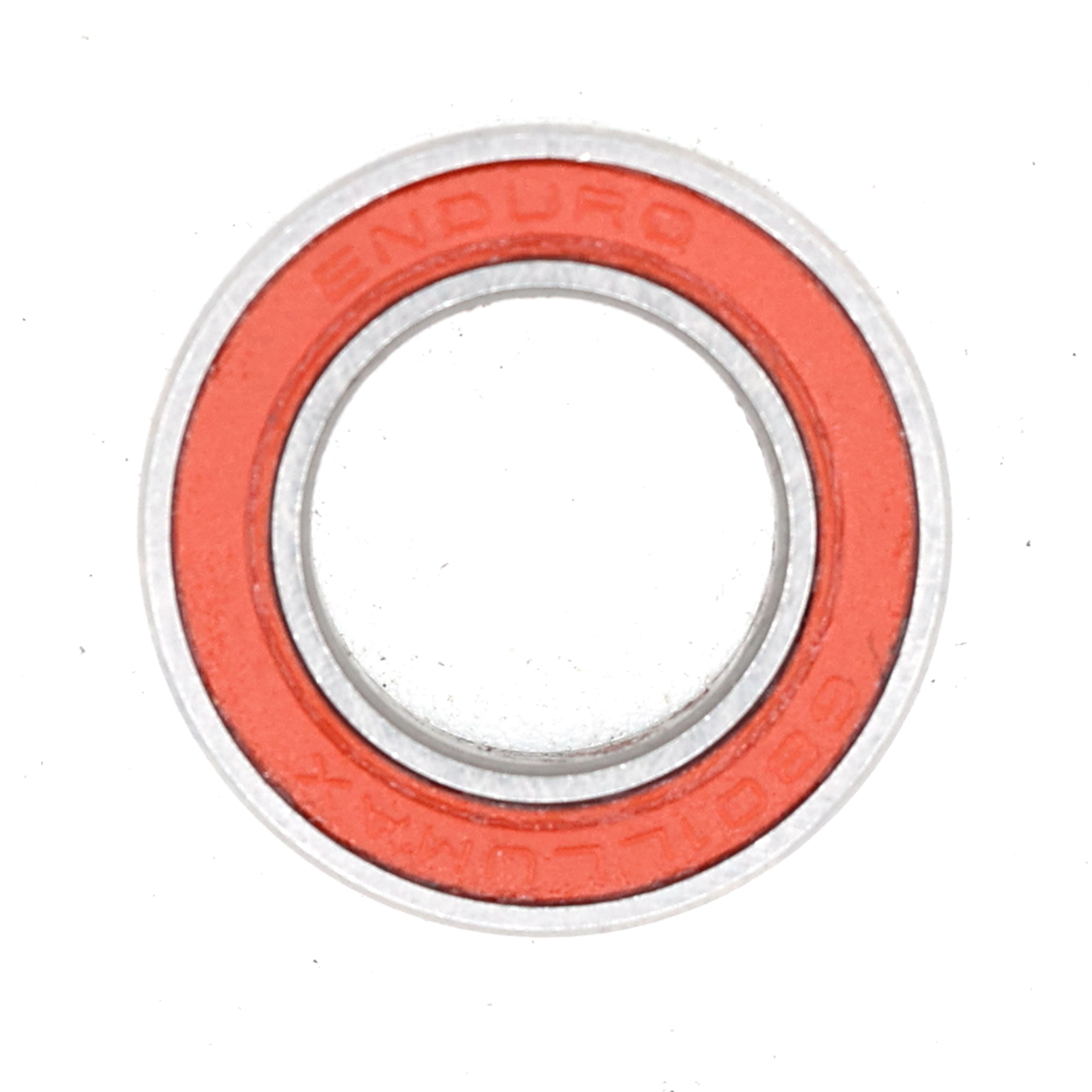

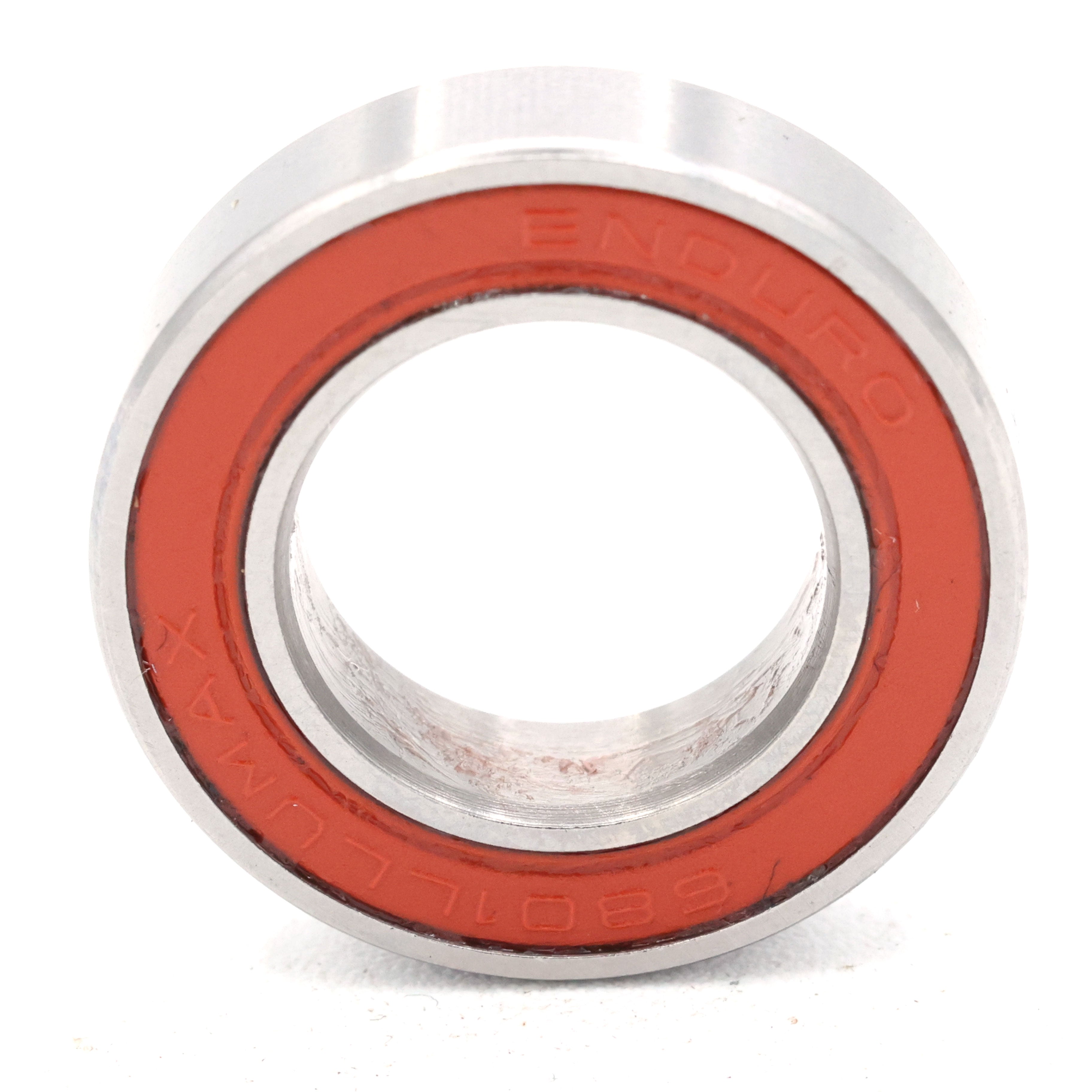

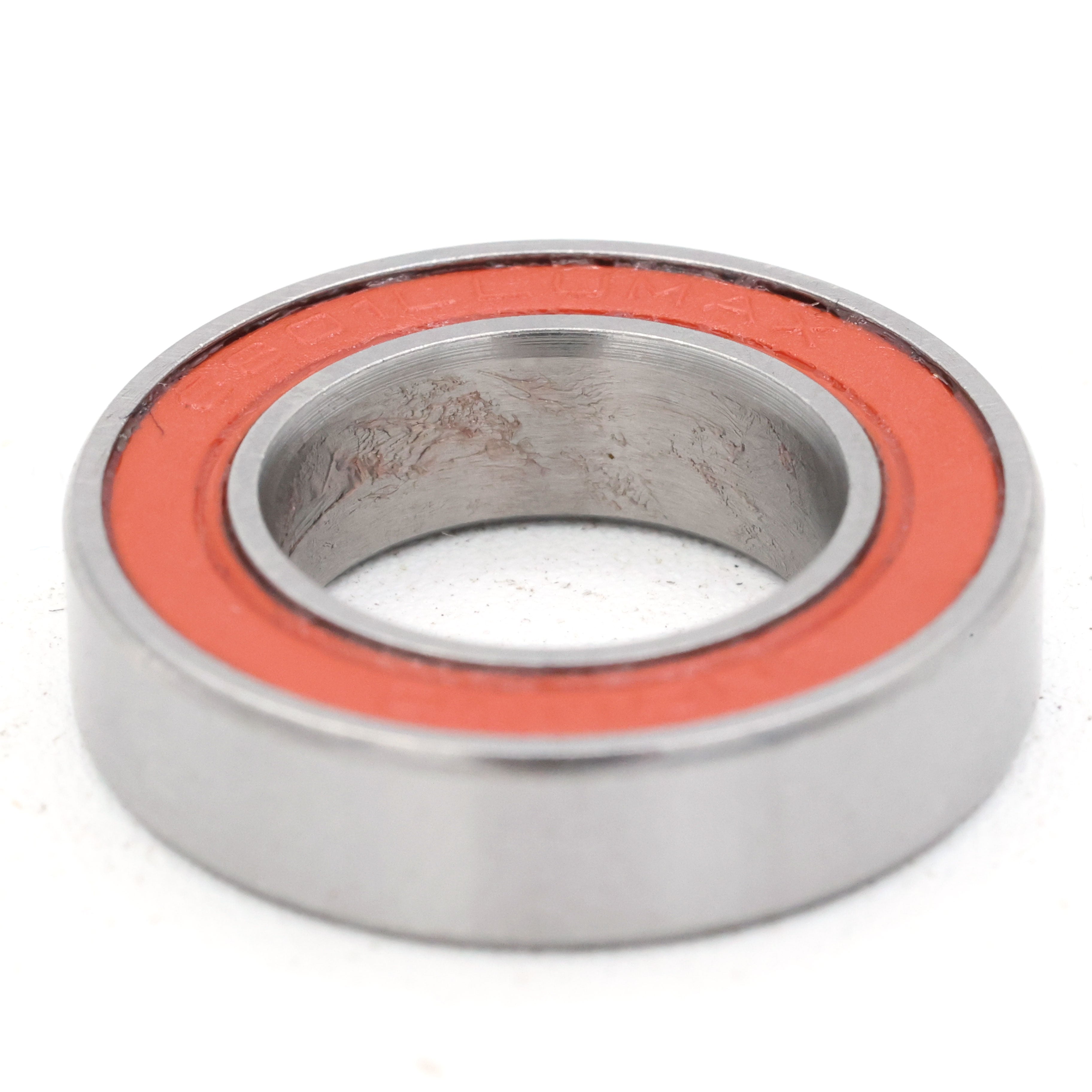

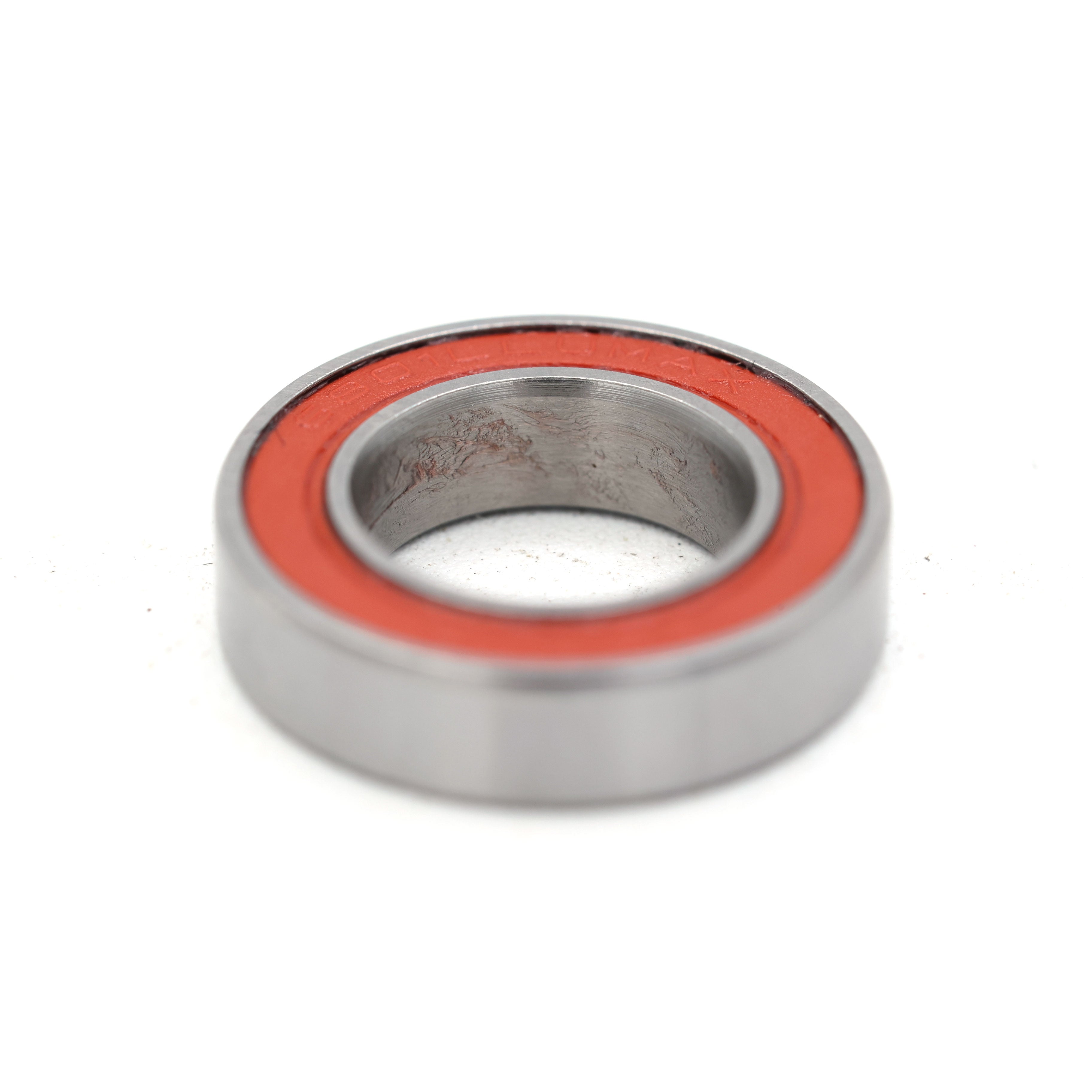

Enduro MAX 6801 LLU Rear Suspension Bearing
The Enduro 6801 LLU MAX is a radial cartridge bearing designed specifically for bicycle suspension pivots. Its MAX construction uses a greater number of bearing balls and deep race grooves to support the high-load, multidirectional forces found in mountain bike suspension systems.
Product Details
-
Brand: Enduro Bearings
-
Model: 6801 LLU MAX
-
Bearing Type: MAX-design radial suspension bearing
-
Primary Application: Bicycle suspension pivots and linkages
-
Inner Diameter: 12mm
-
Outer Diameter: 21mm
-
Width: 5mm
-
Seals: Full-contact, double-lip LLU labyrinth seals
-
Bearing Balls: Grade 10
-
Lubrication: 90% fill of Almagard high-pressure grease
-
Static Load Rating: 409 lbf / 1.82 kN
-
Weight: Approximately 5.8g
MAX Suspension Design
Enduro MAX bearings are designed with the maximum possible number of bearing balls rather than the retaining cage used in many standard radial bearings. According to Enduro, this provides approximately 35–40% greater load capacity, making the bearing well suited to the relatively slow movement and high loads encountered at suspension pivots.
Compatibility
Suspension bearing requirements vary by bicycle brand, model, frame size, and model year. Please verify the 12mm inner diameter, 21mm outer diameter, and 5mm width against the bearing being replaced or the bicycle manufacturer’s specifications before ordering.
What’s Included
This item comes exactly as pictured. Please review all photos for the included components, packaging, and condition.
