Detailed Specifications
-
Brand: Campagnolo
-

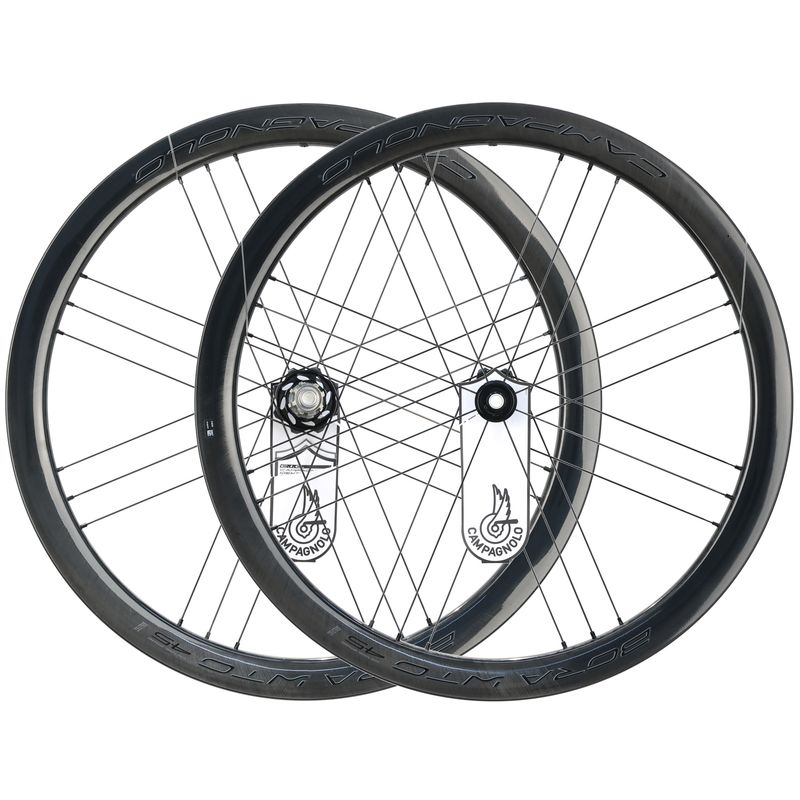

Model: Bora WTO 45 Disc Brake Wheelset
-
Wheel Size: 700c
-
Rim Type: 2-Way Fit (Tubeless Ready / Clincher Compatible)
-
Rim Depth: 45mm
-
Internal Width: 19mm
-
External Width: 26.5mm
-
Rim Material: Unidirectional Carbon Fiber
-

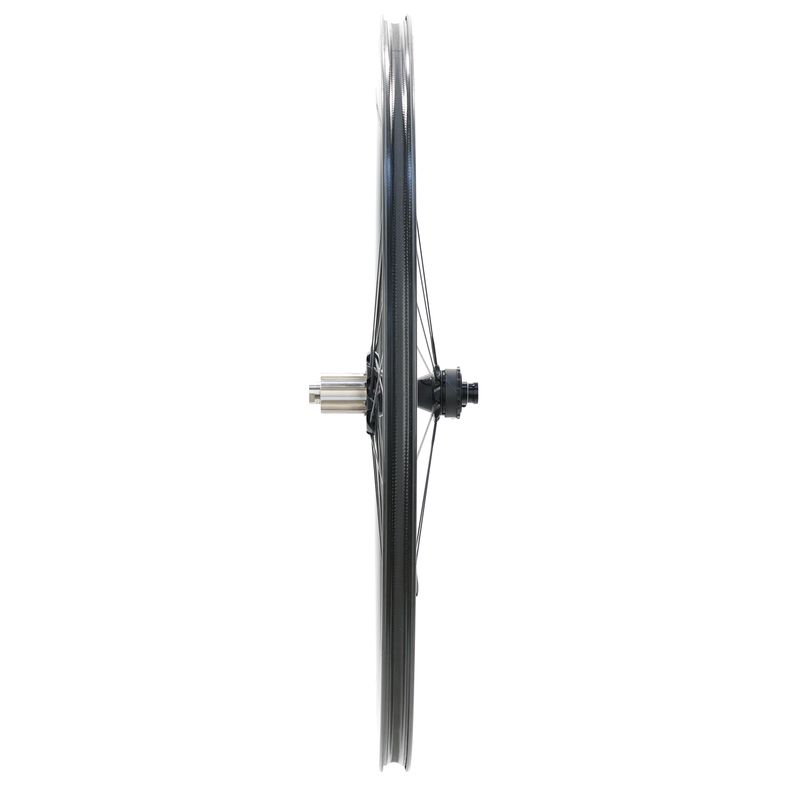

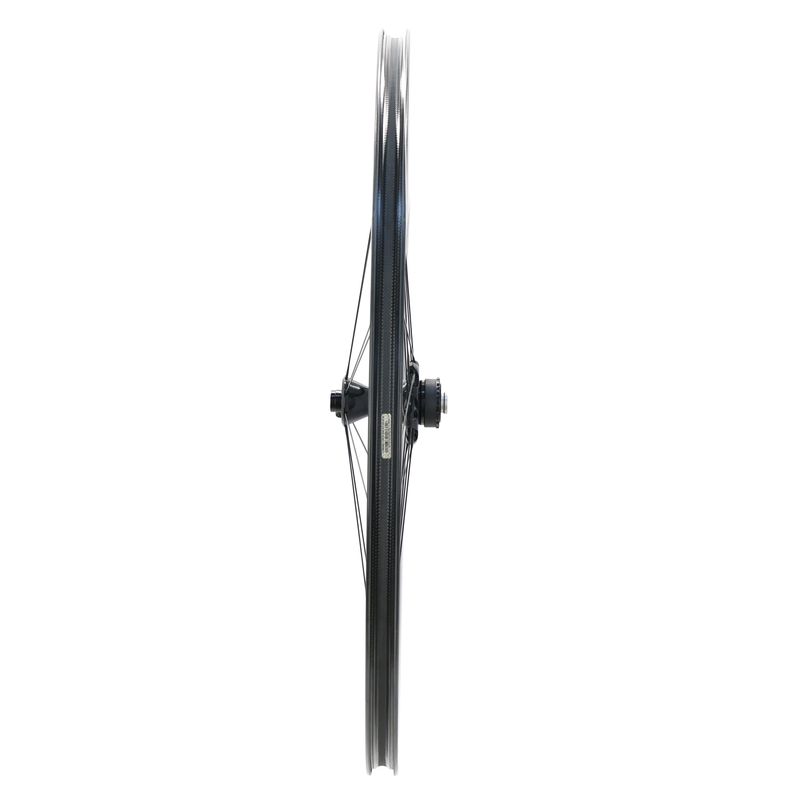

Hub Type: Campagnolo WTO DB Aluminum Monolithic
-
Bearing System: USB (Ultra Smooth Bearing) ceramic/steel cup-and-cone
-
Spoke Count: 24 front / 24 rear (G3 Disc-specific lacing)
-
Spoke Type: Aero stainless steel, elliptical cross-section
-
Nipples: External steel nipples
-
Axle Type: 12mm Thru-Axle (Front: 12x100mm / Rear: 12x142mm)
-
Brake Type: Center Lock disc (alloy lockrings included)
-
Freehub: Campagnolo 10/11/12-speed compatible
-
Tire Compatibility: 23–28mm recommended
-
Valve Type: Presta (tubeless-ready valve included)
-
Color: Carbon (Dark Label graphics)
-
Weight: 1524g (set, bare)
Additional Features
-
Wind Tunnel Optimized (WTO): Every element—rim shape, hub design, and spoke profile—engineered in the wind tunnel for maximum aerodynamic efficiency.
-

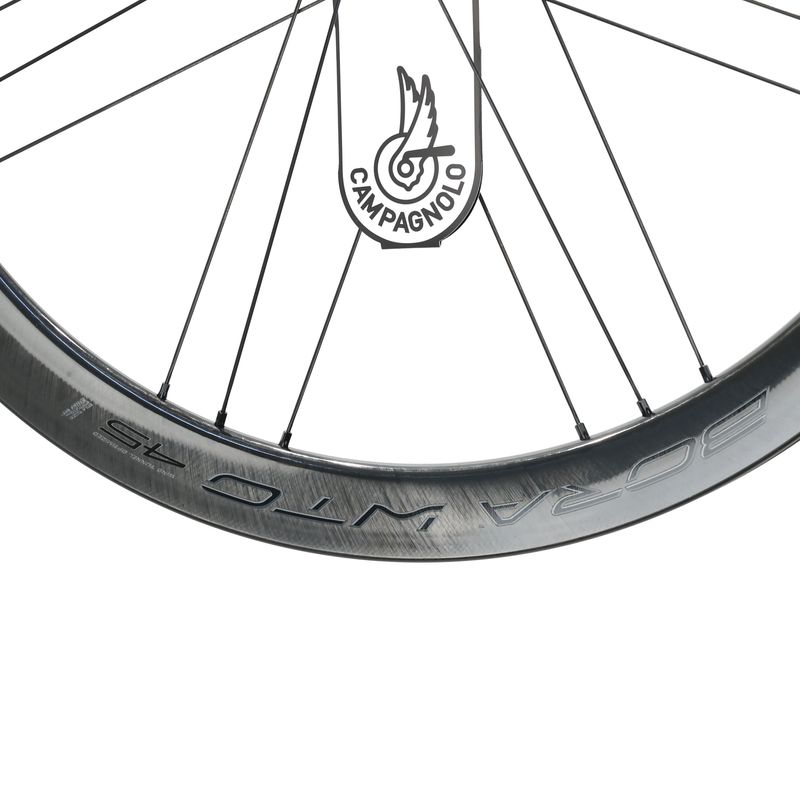

45mm Aero Carbon Rim: Ideal mid-depth profile for superior speed, stability, and control across all terrains.
-
Hand-Built Precision: Each wheel is hand-assembled and electronically verified by Campagnolo technicians for perfect tension and balance.
-
Ultra Smooth Bearings (USB): Ceramic cup-and-cone system reduces friction up to 50% versus standard bearings, ensuring exceptional rolling efficiency.
-
2-Way Fit Technology: Run tubeless for reduced rolling resistance and improved puncture protection, or with tubes for traditional setups.
-

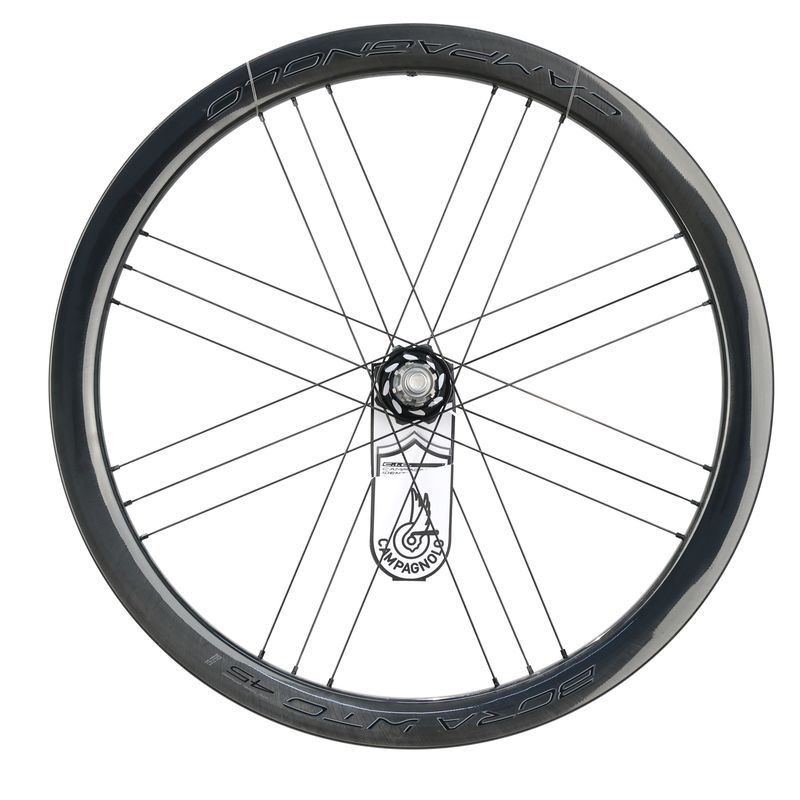

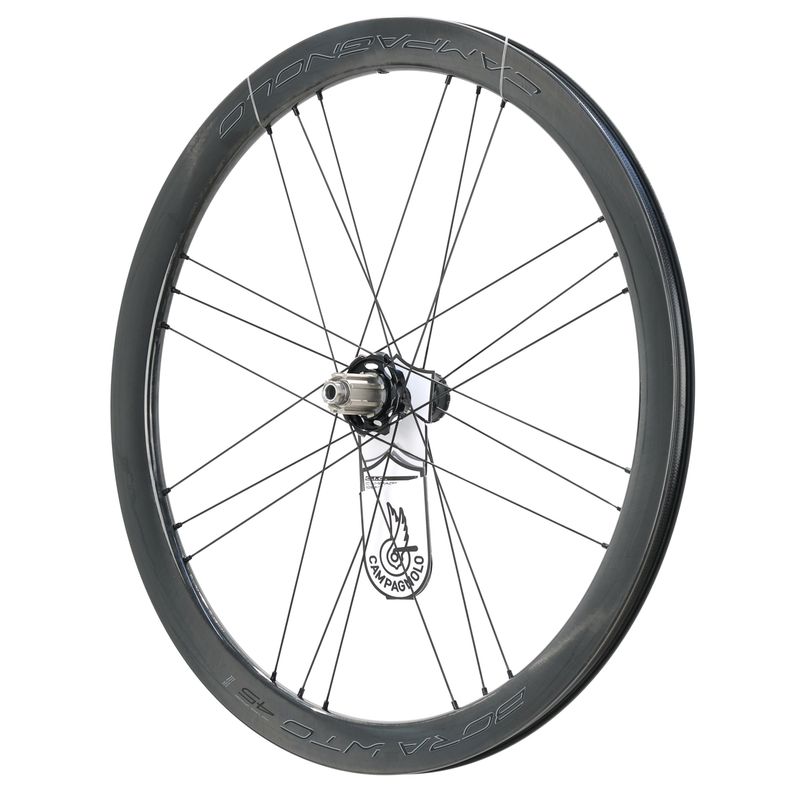

G3 Disc Lacing: Campagnolo’s proprietary spoke pattern delivers consistent spoke tension and efficient power transfer with precise braking control.
-
Reinforced Hub Aerodynamics: Sleek hub design with reduced frontal surface area improves airflow and stiffness.
-
Center Lock System: Simplified rotor installation with included alloy lockrings for reliability and ease of maintenance.
-

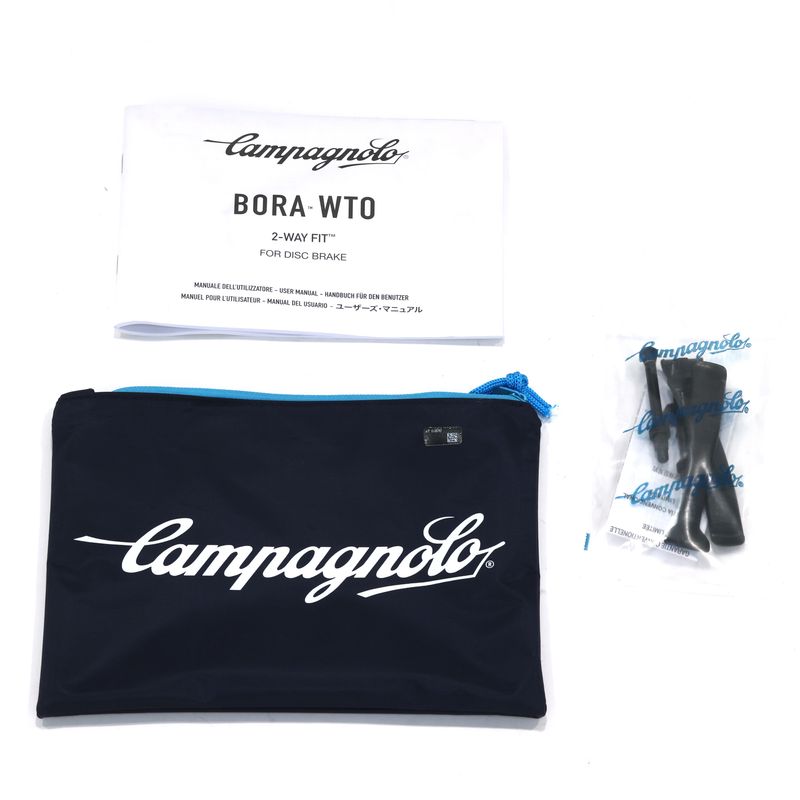

Includes: Tubeless valves, valve extenders, valve hole bushings, tire levers, and Campagnolo lockrings.
Important Usage Notes
-
Compatible with Campagnolo 10/11/12-speed drivetrains. For Shimano/SRAM XDR use, separate freehub body required.
-
Designed for 12mm Thru-Axle frames only. Not compatible with quick-release frames.
-
Use only Campagnolo-approved brake rotors and lockrings for optimal fit.
-
Recommended tire sizes: 23–28mm for best aero integration and ride quality.
-
Follow Campagnolo torque and installation specifications. Professional wheel setup is strongly advised.
Riding Impressions
The Bora WTO 45 Disc is where speed meets control. Its 45mm carbon rim delivers aerodynamic performance rivaling deeper-section wheels while maintaining a lighter, more responsive feel for climbing and acceleration. Ceramic USB bearings glide effortlessly, translating power directly into forward motion. Stability in crosswinds, confidence in descents, and unmatched smoothness define its ride character. Ideal for racers, triathletes, and performance-focused road cyclists seeking one wheelset to excel on every course.
Disclosure
Genuine Campagnolo Bora WTO 45 Disc Brake Wheelset, retail packaged and covered under Campagnolo’s manufacturer warranty. Includes wheelset (front and rear), tubeless valves, valve extenders, valve bushings, tire levers, and lockrings. Cassette, rotors, and tires not included.
