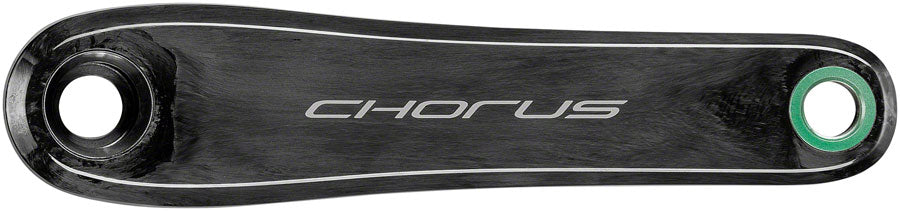

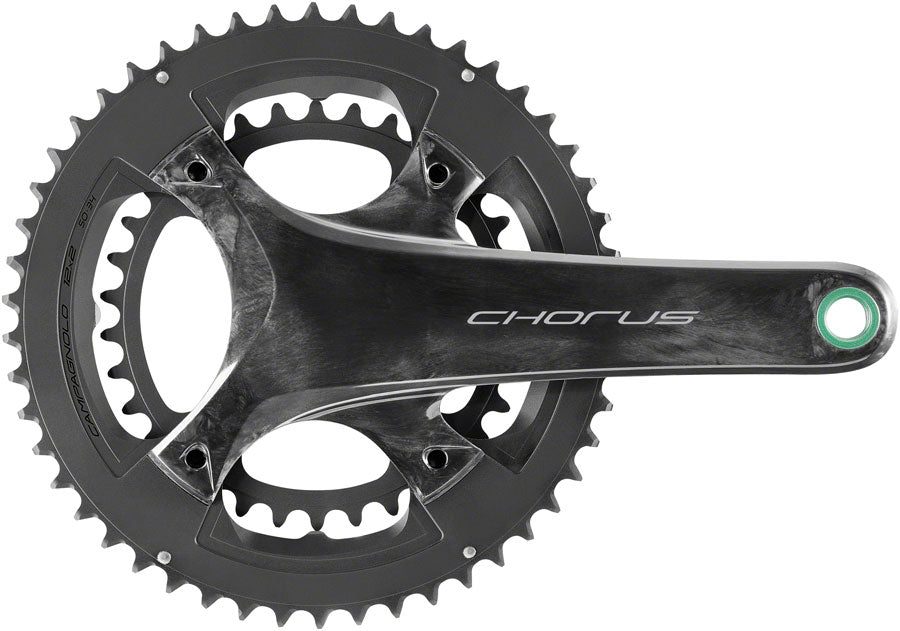

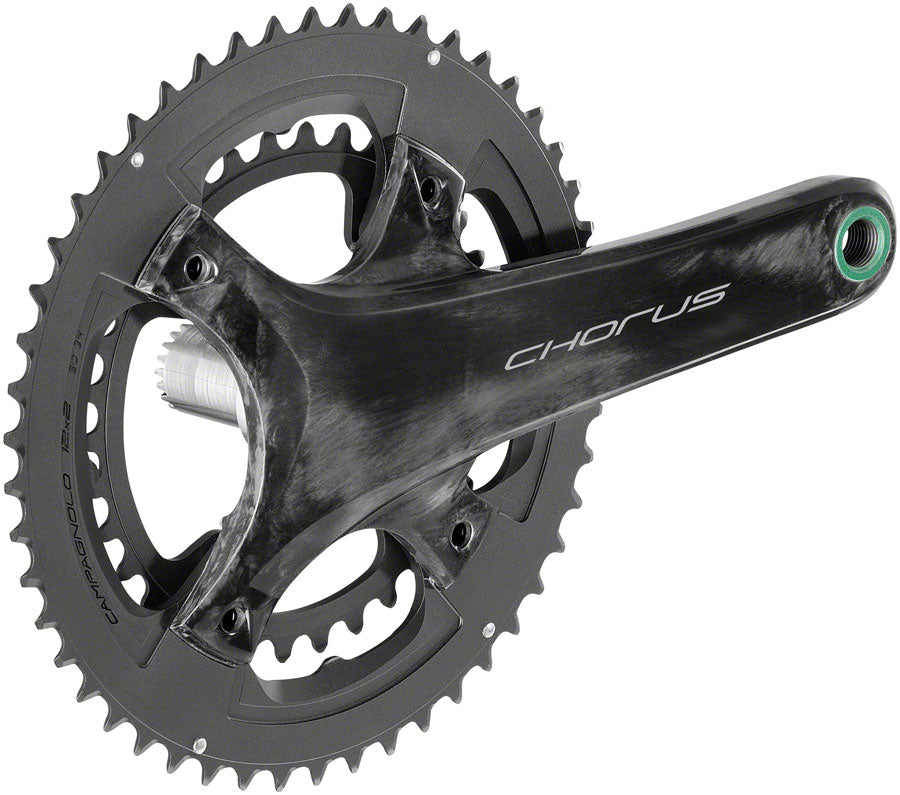

The Campagnolo Chorus 12-Speed Crankset features lightweight carbon crank arms, and is optimized for Campagnolo's Ultra-Torque crank system.
Key Features
- Utilizes Campagnolo's Ultra-Torque crank system to provide a very light weight and stiff system that transfers power to the pedals without power loss
- Directly molded unidirectional carbon fiber cranks, steel axle, and aluminum chainrings provide exceptional stiffness and optimum power transmission
- Symmetrical teeth on the internal chainring allow for fluid and precise transmission, even with extreme cross-chaining
- Chainrings are surface treated for longer life
- Q-Factor: 145.5mm
- Design is optimized to run multiple chainring combinations
Specifications
| Color |
Carbon |
| Rings |
48/32 |
| Number of Chainrings |
Double |
| Crank Length (mm) |
170 |
| Crank Intended Use |
Road |
| Drivetrain Speeds |
12 |
| Weight |
686 |
| BB Included |
No |
| Pedal Spindle |
9/16" |
| Spindle Interface Type |
Campagnolo Ultra-Torque |
| Chainring BCD |
96 |
| Chainline/Hub Compatibility |
130 Hubs |
| Chainline/Hub Compatibility |
135/142 Road Disc Hubs > 415 mm Chainstay |
| Defined Color |
Carbon |
