Product Description
The SRAM XX1 Eagle crankset combines lightweight Carbon Tuned construction with the strength, stiffness, and durability required for high-performance mountain biking.
This configuration features 170mm carbon crank arms, an included 34T direct-mount X-SYNC 2 chainring, a SRAM DUB spindle, and a 49mm chainline. X-SYNC 2 tooth shaping is engineered specifically for SRAM Eagle chains and drivetrains, providing dependable chain retention, quieter operation, improved mud clearance, and long service life.
This is the standard 49mm chainline version and is not compatible with Quarq power meter spiders. A frame-compatible SRAM DUB bottom bracket is required and sold separately.
Key Features
- Genuine SRAM XX1 Eagle carbon crankset
- Carbon Tuned crank-arm construction
-
170mm crank length
- Included 34T X-SYNC 2 direct-mount chainring
- SRAM DUB spindle interface
- 49mm chainline
- Designed for SRAM Eagle 1x12 drivetrains
- Excellent stiffness-to-weight ratio
- X-SYNC 2 tooth profile for secure chain retention
- Improved mud clearance and quieter drivetrain performance
- Lunar Gray finish
- New and retail packaged
Specifications
- Brand: SRAM
- Series: XX1 Eagle
- Product Type: Mountain Bike Crankset
- Drivetrain Configuration: 1x12
- Crank Length: 170mm
- Chainring Size: 34T
- Number of Chainrings: Single / 1x
- Chainring Type: X-SYNC 2
- Chainring Mount: SRAM Direct Mount
- Spindle Interface: SRAM DUB
- Chainline: 49mm
- Crank-Arm Material: Carbon
- Color: Lunar Gray
- Bottom Bracket Included: No
Compatibility
Designed for compatible mountain bikes requiring:
- SRAM DUB crank spindle interface
- 49mm chainline
- SRAM Eagle-compatible 1x12 drivetrain
-
170mm crank-arm length
- Compatible SRAM direct-mount chainring configuration
Important Power Meter Compatibility
This crankset is not compatible with Quarq power meter spiders.
Do not confuse this complete direct-mount crankset with SRAM 8-bolt crank-arm assemblies designed for use with Quarq power meter spiders.
Important Chainline Information
This is the 49mm chainline version. It should not automatically be substituted for:
- 52mm Boost cranksets
- 55mm DUB Wide cranksets
- Fat bike cranksets
- Other chainline or spindle configurations
Please confirm the required chainline, crank length, frame clearance, drivetrain configuration, and bottom bracket standard before ordering.
Included

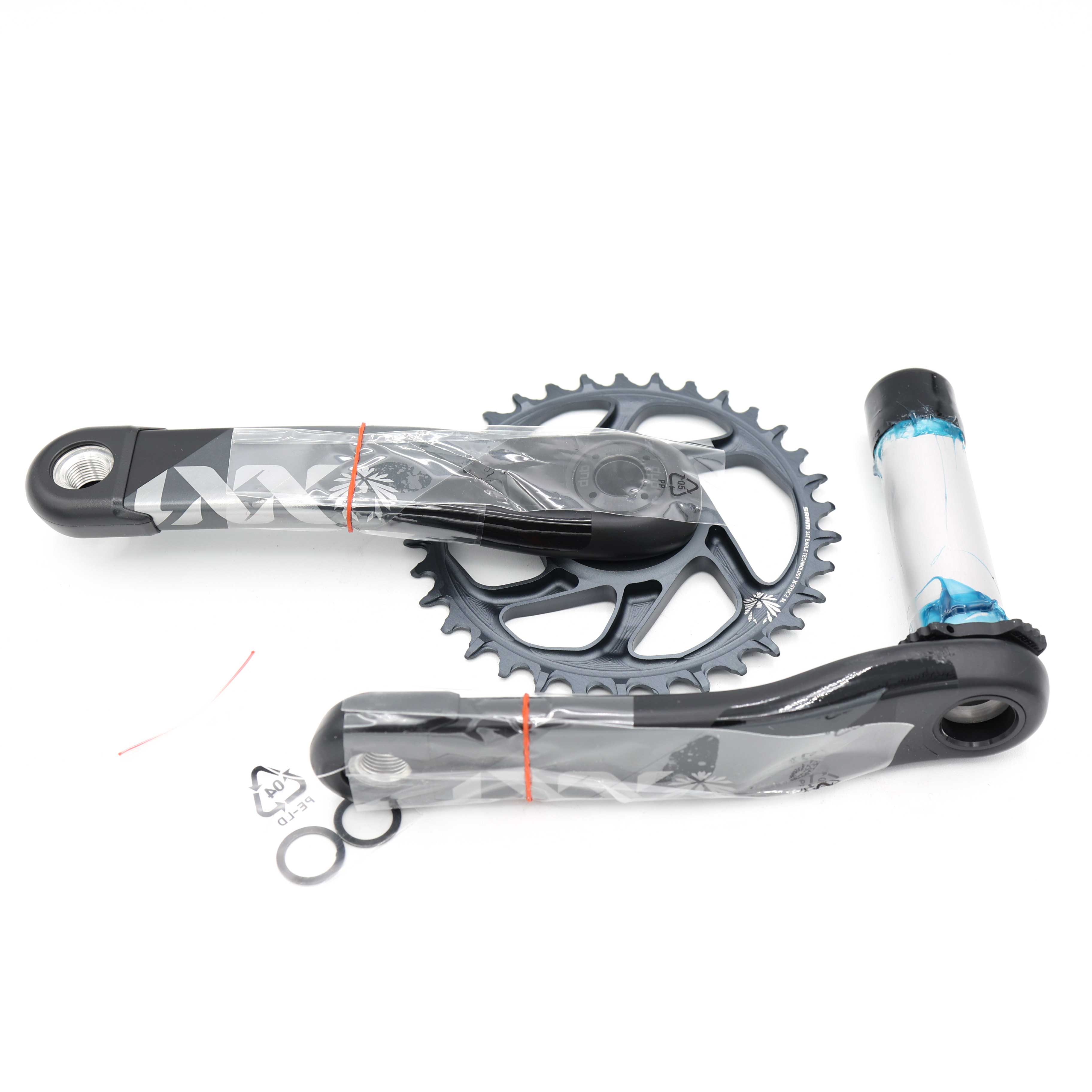

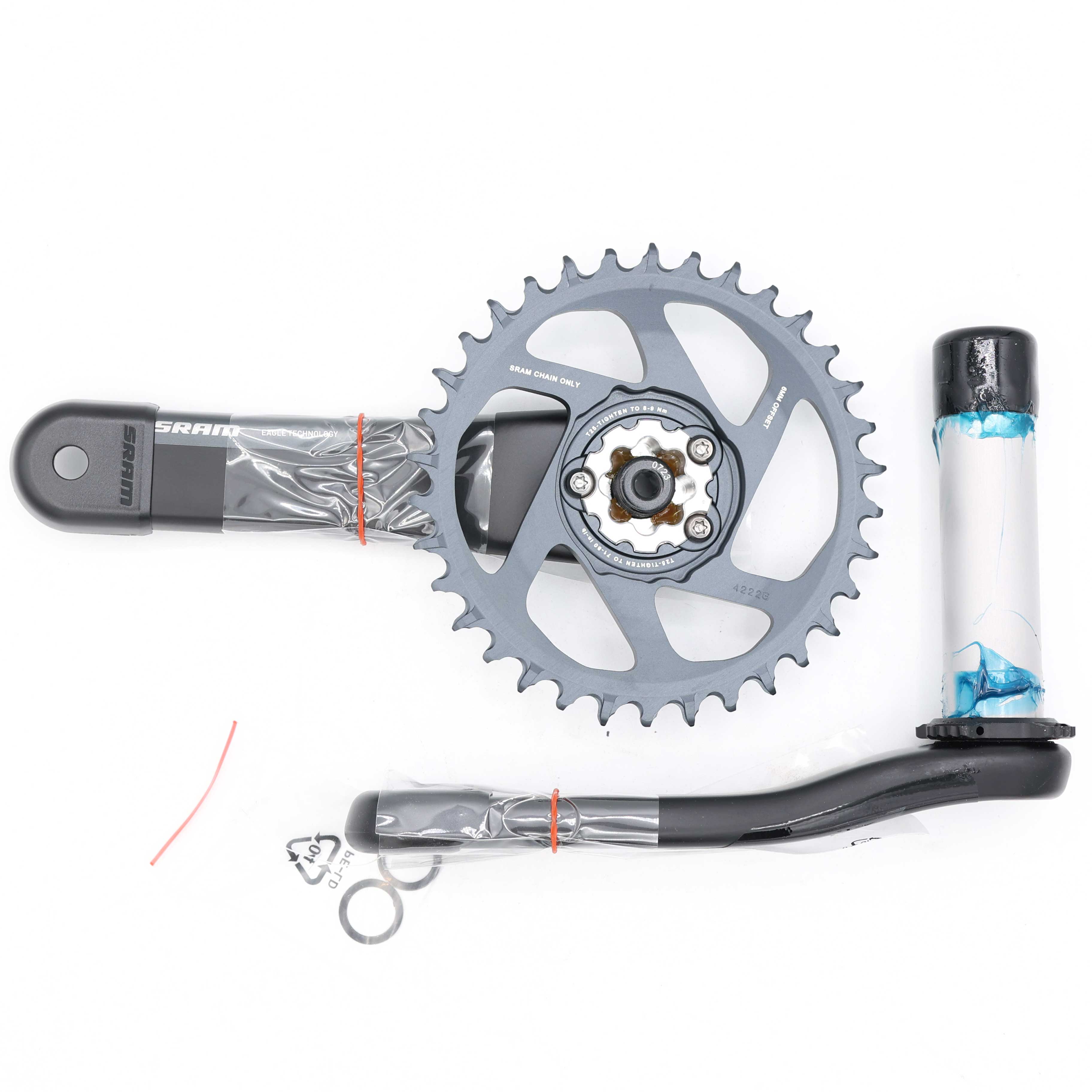

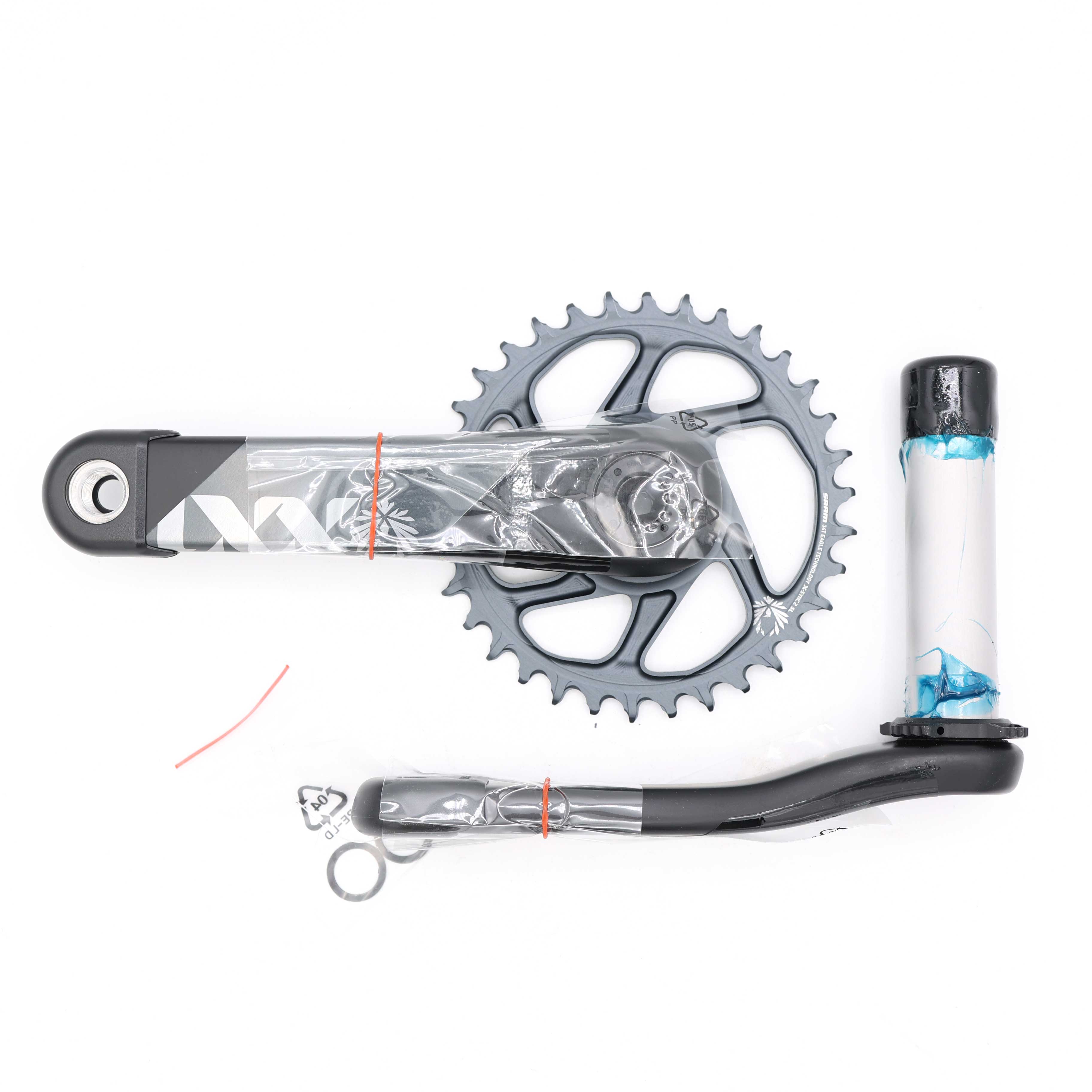

- SRAM XX1 Eagle 170mm carbon crankset

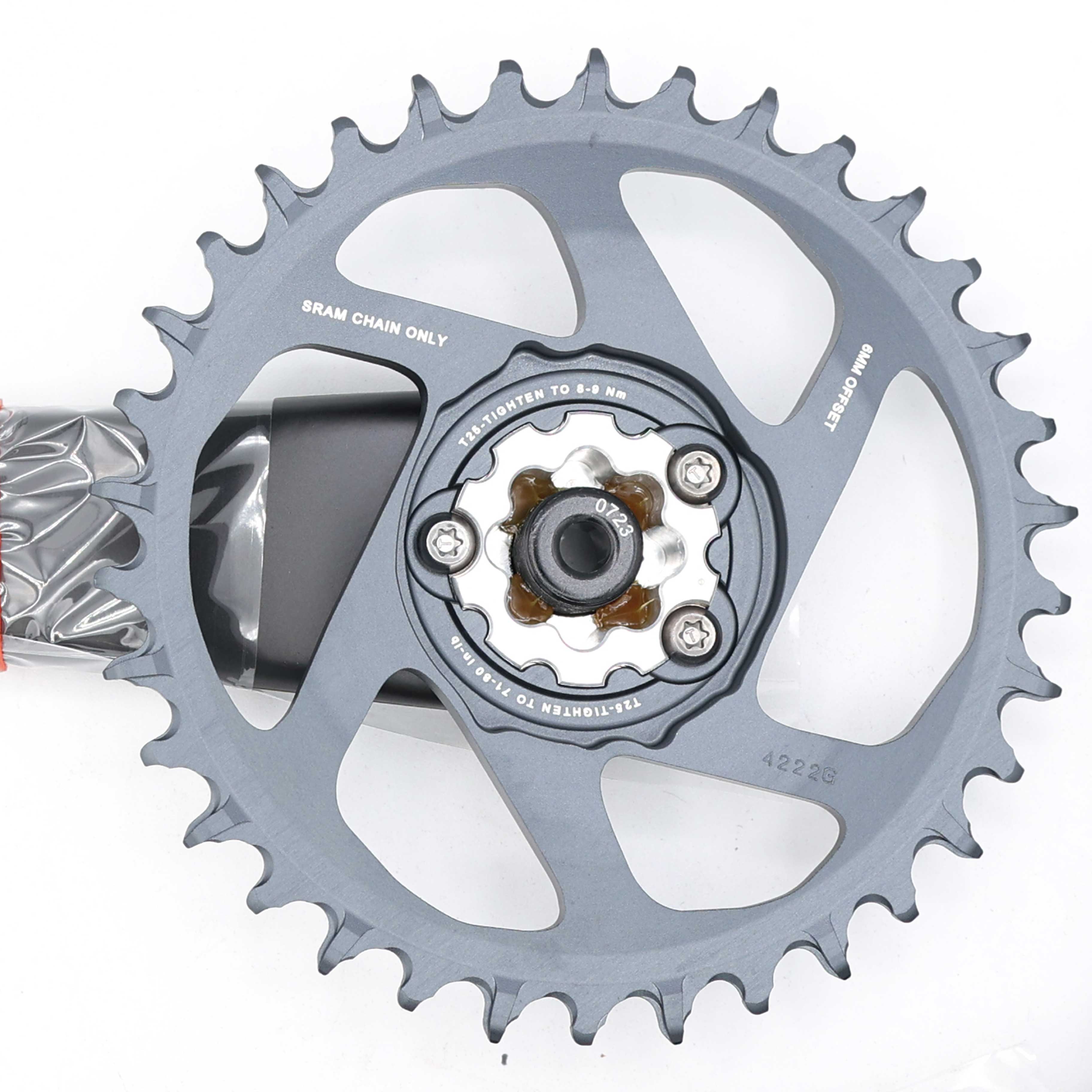

- 34T X-SYNC 2 direct-mount chainring
- Retail packaging
- Includes only what is pictured and described
Warranty and Notes
- Genuine SRAM component
- Not compatible with Quarq power meter spiders
- Bottom bracket cups are not included
- All SRAM DUB cranksets require a compatible DUB bottom bracket
- The required DUB bottom bracket must match the bicycle frame’s bottom bracket standard
- Carbon crank installation should follow SRAM procedures and torque specifications
Condition
- New
- Retail packaged
- Genuine SRAM product
- Includes only what is pictured and described
