SRAM RED AXS D1 Quarq Power Meter Crankset 172.5mm 46/33T DUB 2x12-Speed
The SRAM RED AXS D1 power-meter crankset combines hollow carbon crankarms with an integrated Quarq DZero power meter and one-piece aluminum chainring assembly. This flagship road crankset is engineered for low weight, high stiffness and accurate performance measurement.
The spider-based Quarq power meter measures total power, cadence and left/right power balance with an accuracy of ±1.5%. Temperature compensation maintains consistent readings as riding conditions change, while ANT+ and Bluetooth connectivity support compatible cycling computers and mobile devices.
SRAM’s 46/33T X-Range gearing provides a broad usable range and smoother progression between gears. The consistent 13-tooth difference between the chainrings is engineered specifically for fast and reliable SRAM AXS front shifting.
Features
- Original SRAM RED AXS D1-generation power-meter crankset
- Ultra-light hollow carbon-fiber crankarms
- Integrated Quarq DZero spider-based power meter
- Measures total power, cadence and left/right power balance
- Power readings accurate to within ±1.5%
- Temperature-compensated measurement for changing riding conditions
- ANT+ and Bluetooth Low Energy wireless connectivity
- AXS-enabled for firmware updates and battery monitoring
- Approximately 200 hours of use from a replaceable CR2032 battery
- One-piece integrated power-meter and chainring assembly
- 46/33T X-Range gearing with a consistent 13-tooth jump
- Optimized for SRAM 2x12-speed AXS road drivetrains
- DUB spindle provides a durable and simplified bottom-bracket interface
Specifications
| Brand |
SRAM |
| Series |
RED AXS D1 |
| Model ID |
PM-RED-D1 |
| Crankarm Length |
172.5mm |
| Chainring Combination |
46/33T |
| Drivetrain Configuration |
2x12-speed road |
| Crankarm Material |
Hollow carbon fiber |
| Chainring Material |
Aluminum |
| Power Meter |
Quarq DZero spider-based |
| Power Measurement |
Total power with left/right balance |
| Power Accuracy |
±1.5% |
| Wireless Communication |
ANT+ and Bluetooth Low Energy |
| Battery |
Replaceable CR2032 coin-cell battery |
| Battery Life |
Approximately 200 riding hours |
| Spindle Interface |
SRAM DUB, 28.99mm |
| Bottom-Bracket Compatibility |
SRAM Road DUB bottom brackets |
| Chainline |
45mm standard road |
| Chainring Offset |
0mm |
| Crank Interface |
SRAM 8-bolt direct mount |
| Chainring Construction |
Integrated one-piece power-meter and chainring assembly |
| Compatible Chain |
SRAM Road Flattop 12-speed |
| Color |
Natural Carbon / Black |
| SRAM MPN |
00.3018.208.172 |
| UPC |
710845823183 |

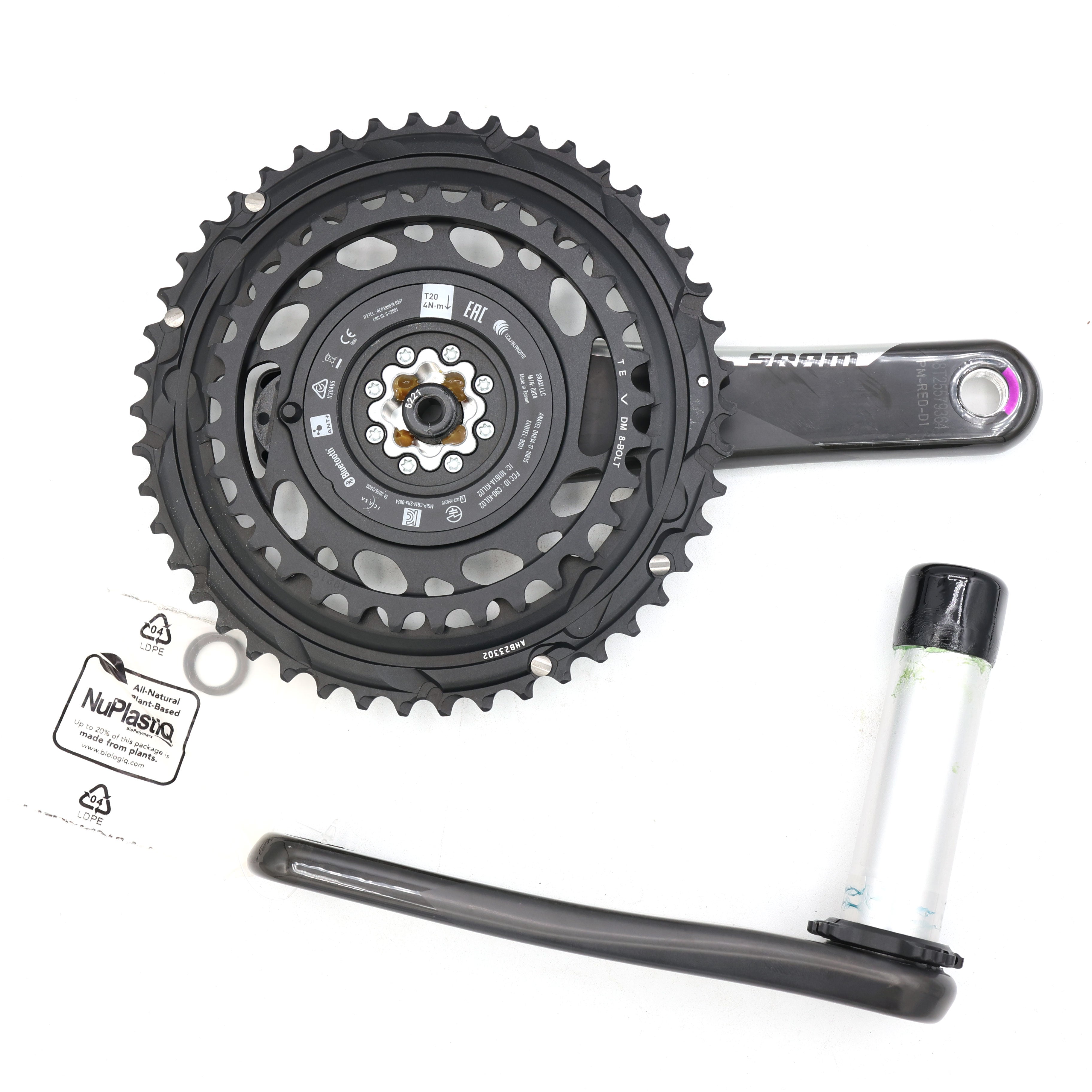

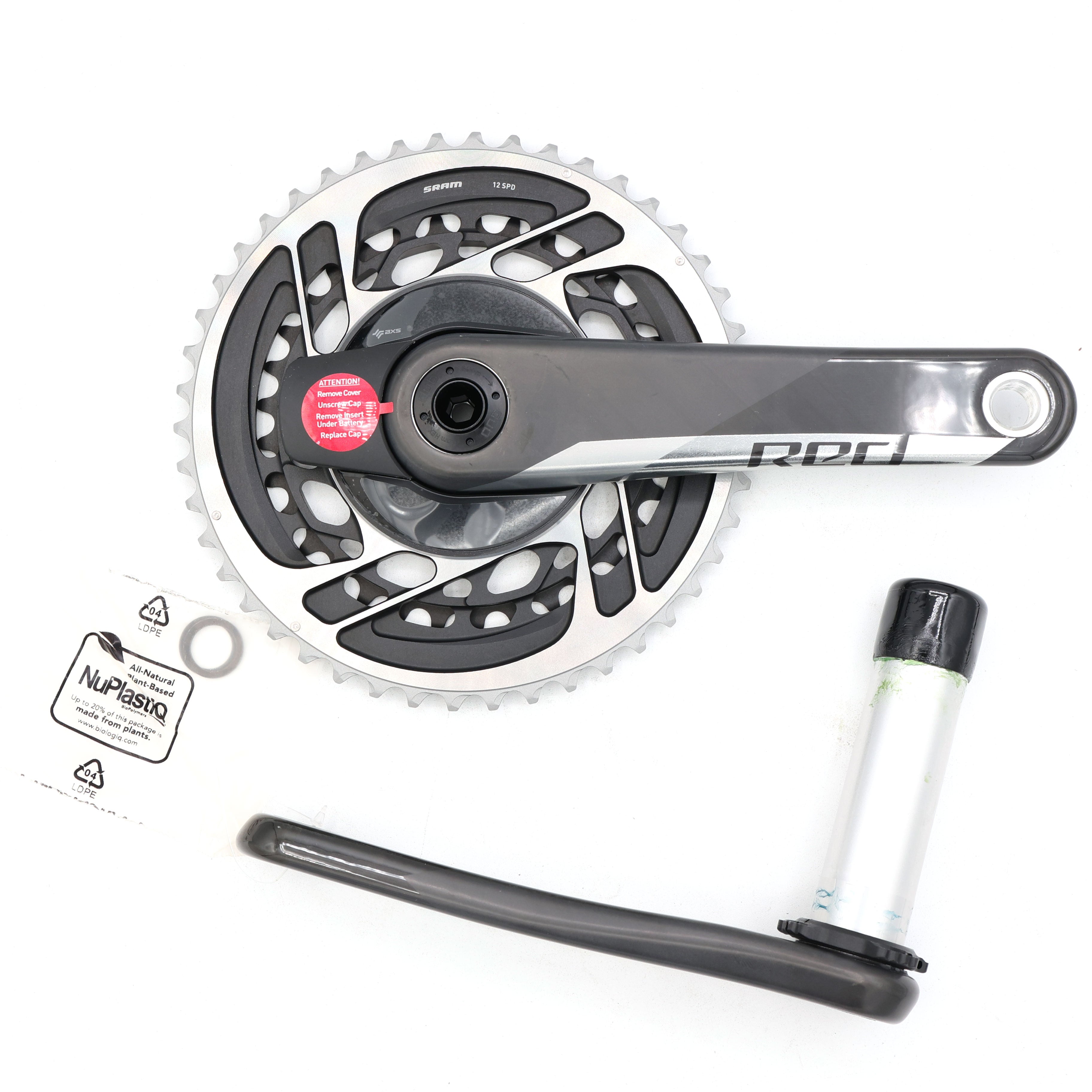

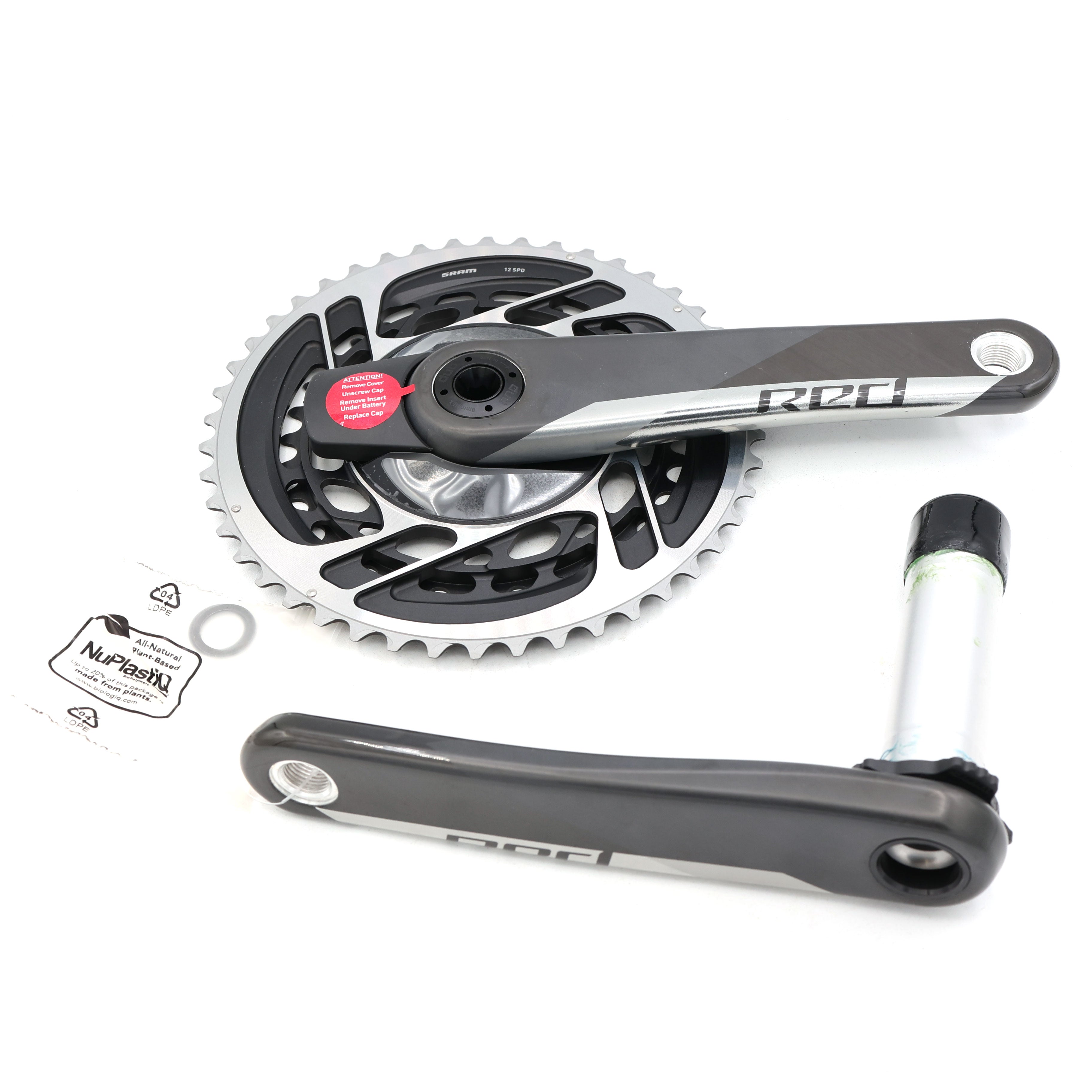

Included
- Drive-side 172.5mm SRAM RED D1 hollow-carbon crankarm

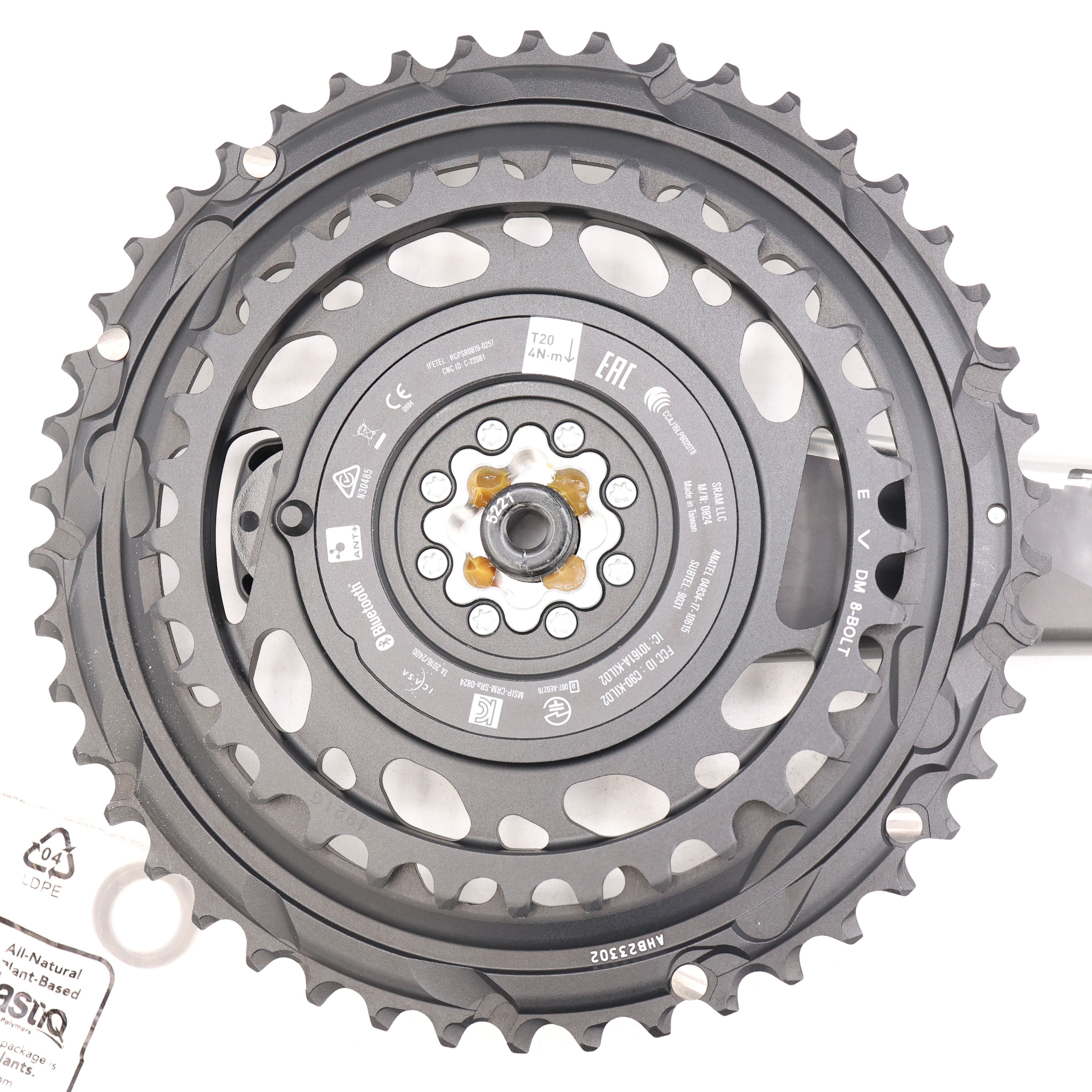

- Integrated Quarq DZero power meter
- Integrated 46/33T aluminum chainring assembly

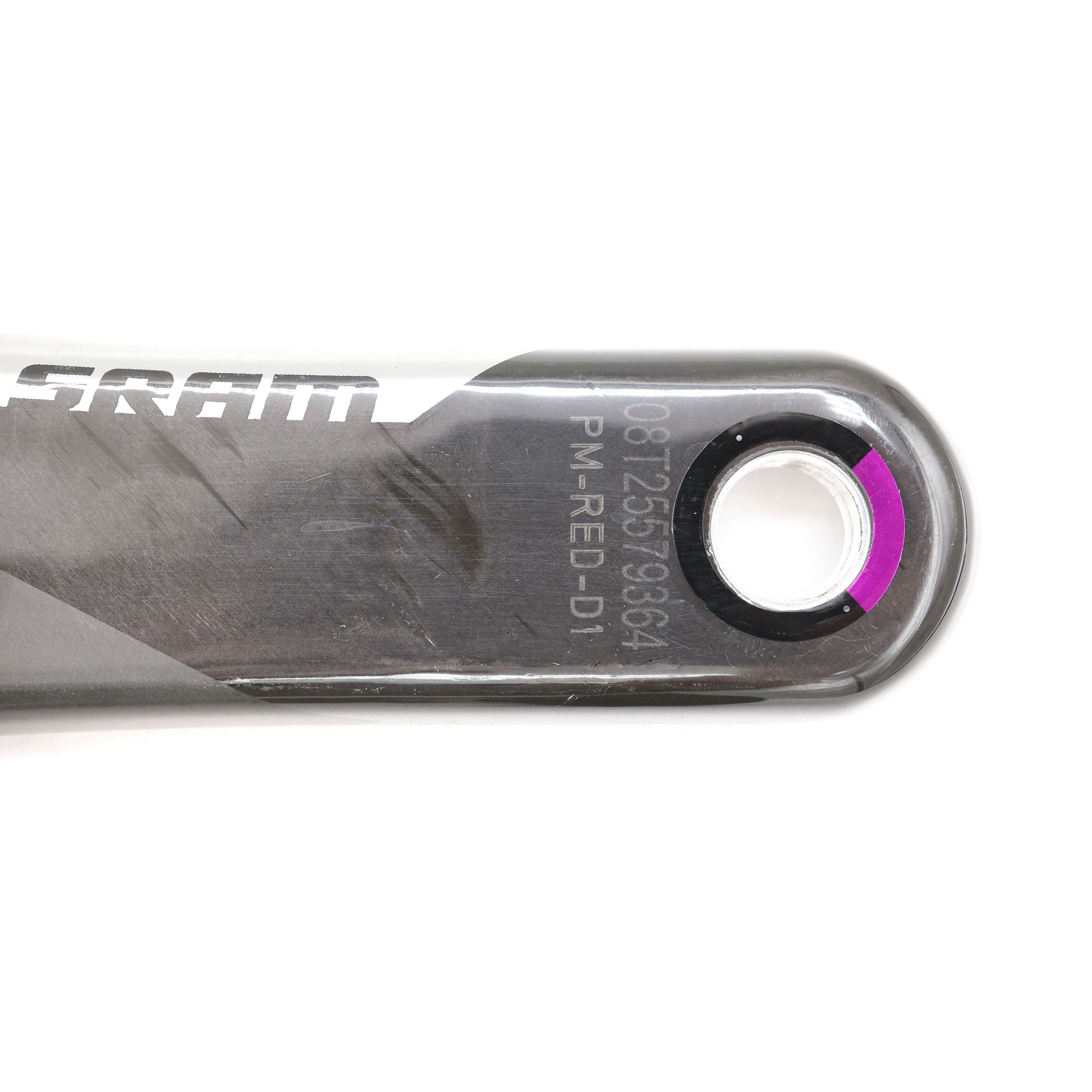

- Non-drive-side 172.5mm SRAM RED D1 hollow-carbon crankarm
- SRAM DUB spindle
Please note: This is the original D1 version, not the newer E1-generation crankset. The D1 power meter and 46/33T chainrings form an integrated assembly. If the chainrings become worn or a different gearing combination is desired, the complete compatible power-meter and chainring assembly must be replaced.
This is the standard 45mm-chainline road version, not a DUB Wide crankset. A compatible SRAM Road DUB bottom bracket, pedals and installation tools are not included unless specifically pictured.
This is a genuine SRAM OEM component and may be supplied without retail packaging. Please review the listing photographs for the exact included hardware and cosmetic condition. The CR2032 battery is a consumable item, and its remaining service life is not guaranteed.
Professional installation and initial power-meter pairing or calibration are recommended. Please confirm crank length, gearing, chainline, bottom-bracket standard and drivetrain compatibility before purchasing.
