Shimano Deore XT BL-M8100 BR-M8100 Front Hydraulic Disc Brake 850mm J-Kit
The Shimano Deore XT M8100 front hydraulic disc brake combines an adjustable BL-M8100 brake lever with the lightweight BR-M8100 two-piston caliper. It provides reliable stopping power, predictable modulation and responsive control for cross-country and trail mountain bikes.
Shimano Servo Wave technology moves the pads rapidly toward the rotor during the lever’s initial stroke and then progressively increases braking power. The lever features tool-free reach adjustment and adjustable free stroke, allowing the rider to customize its position and braking feel.
This OEM front-brake J-Kit uses an 850mm SM-BH90-SBM hydraulic hose. J-Kit components are prepared for easier installation and internal routing, with the hose connection potentially separated at the lever. Connection, hose trimming and a final bleed may be required during installation.
Features
- Shimano Deore XT M8100-series front hydraulic disc brake

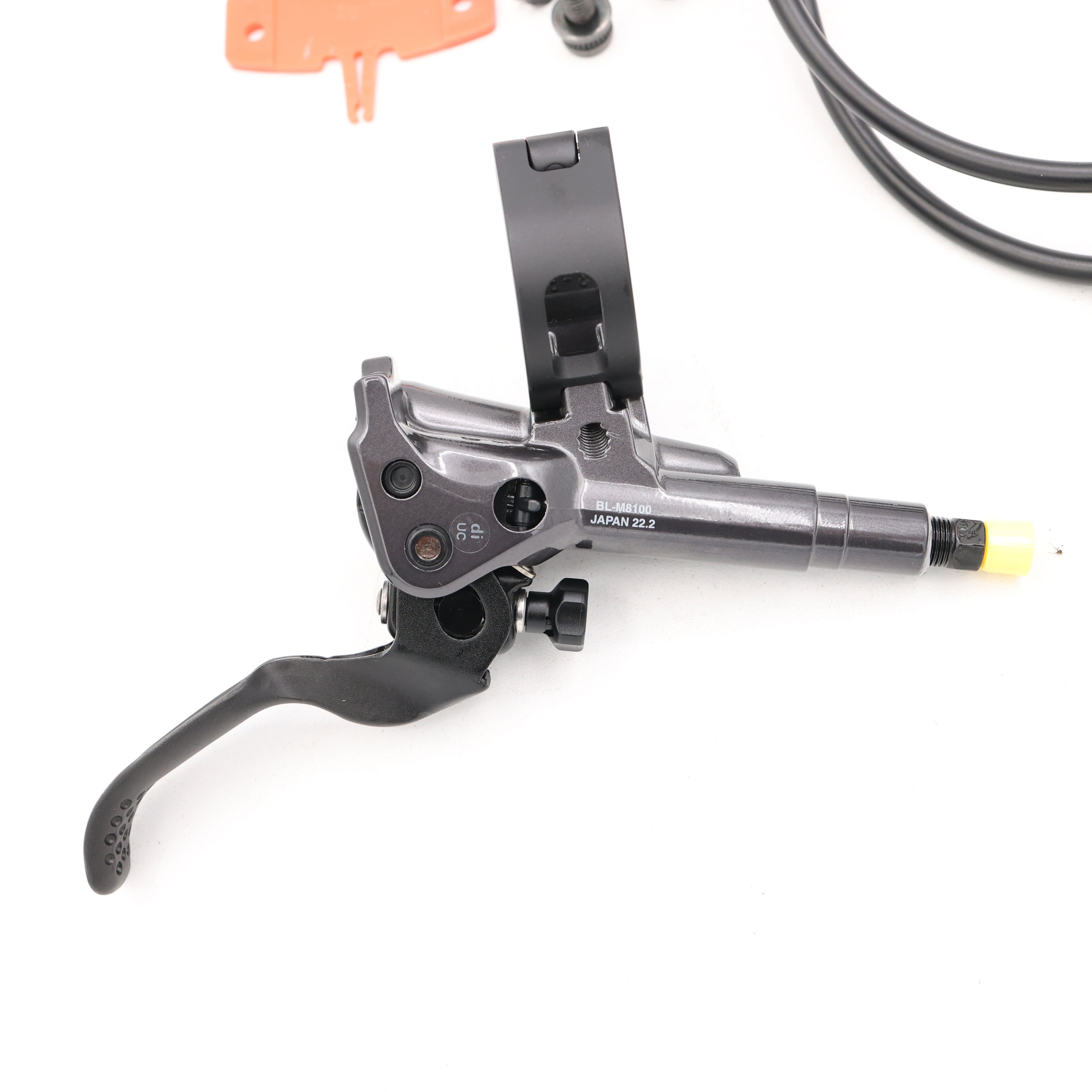

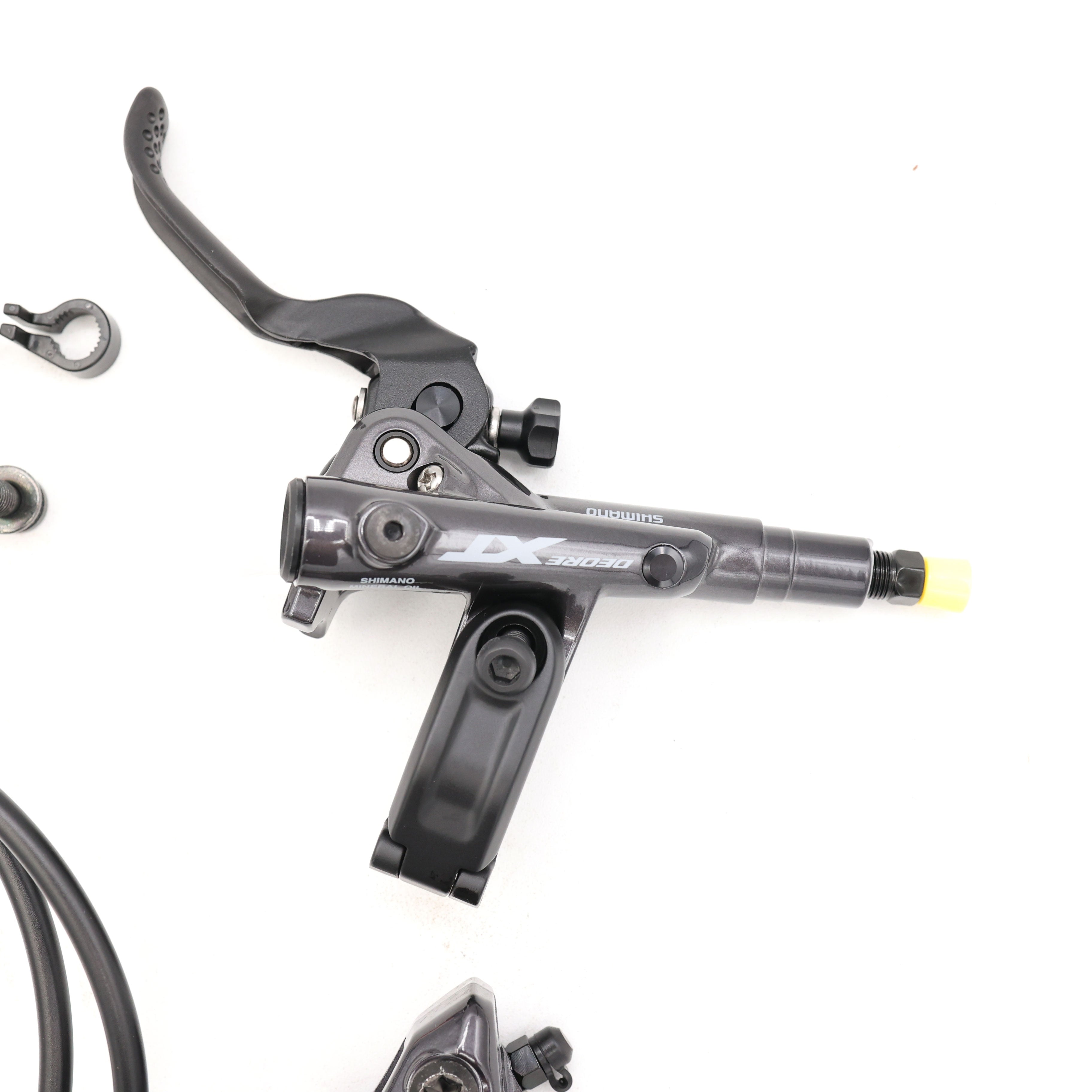

- Left-hand BL-M8100 brake lever

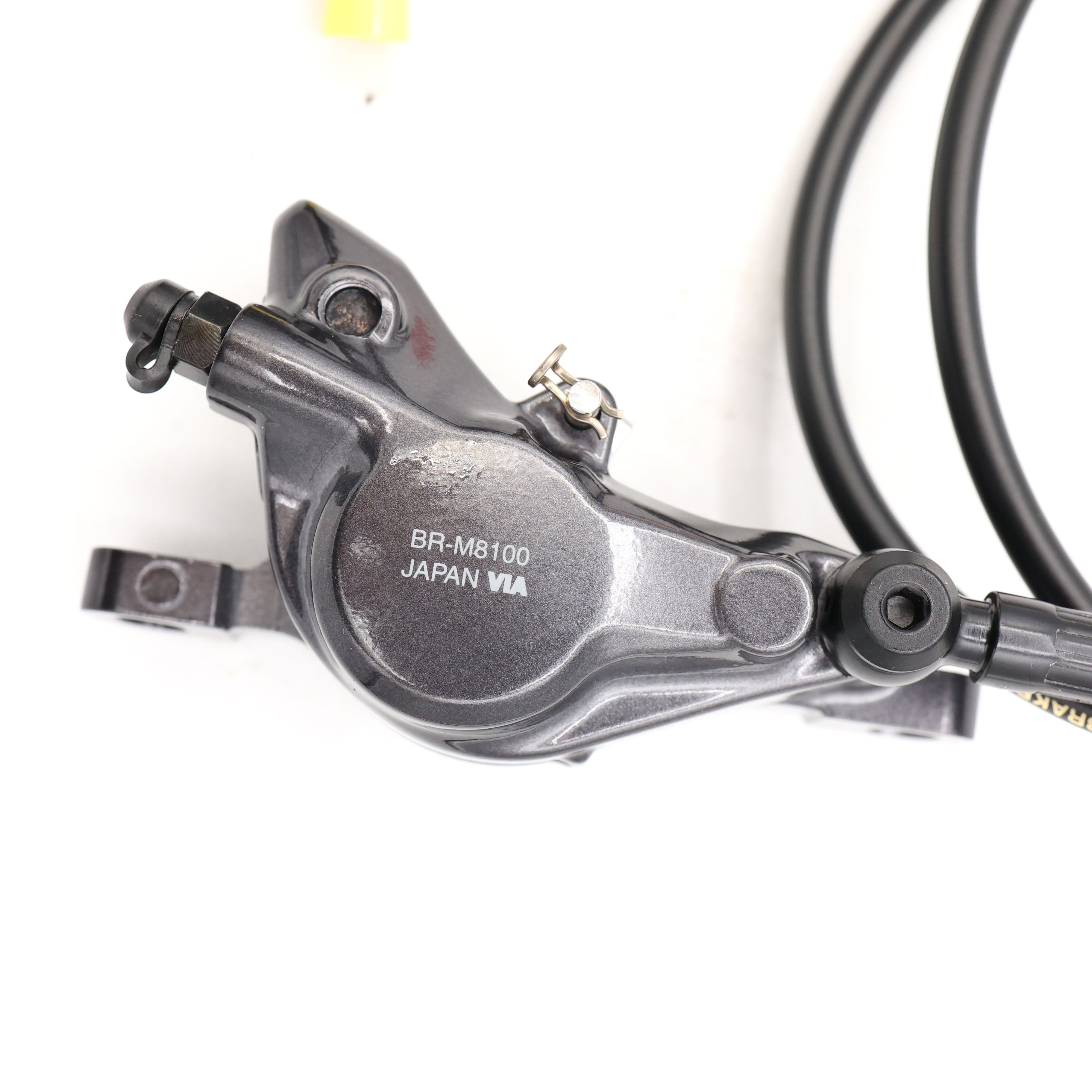

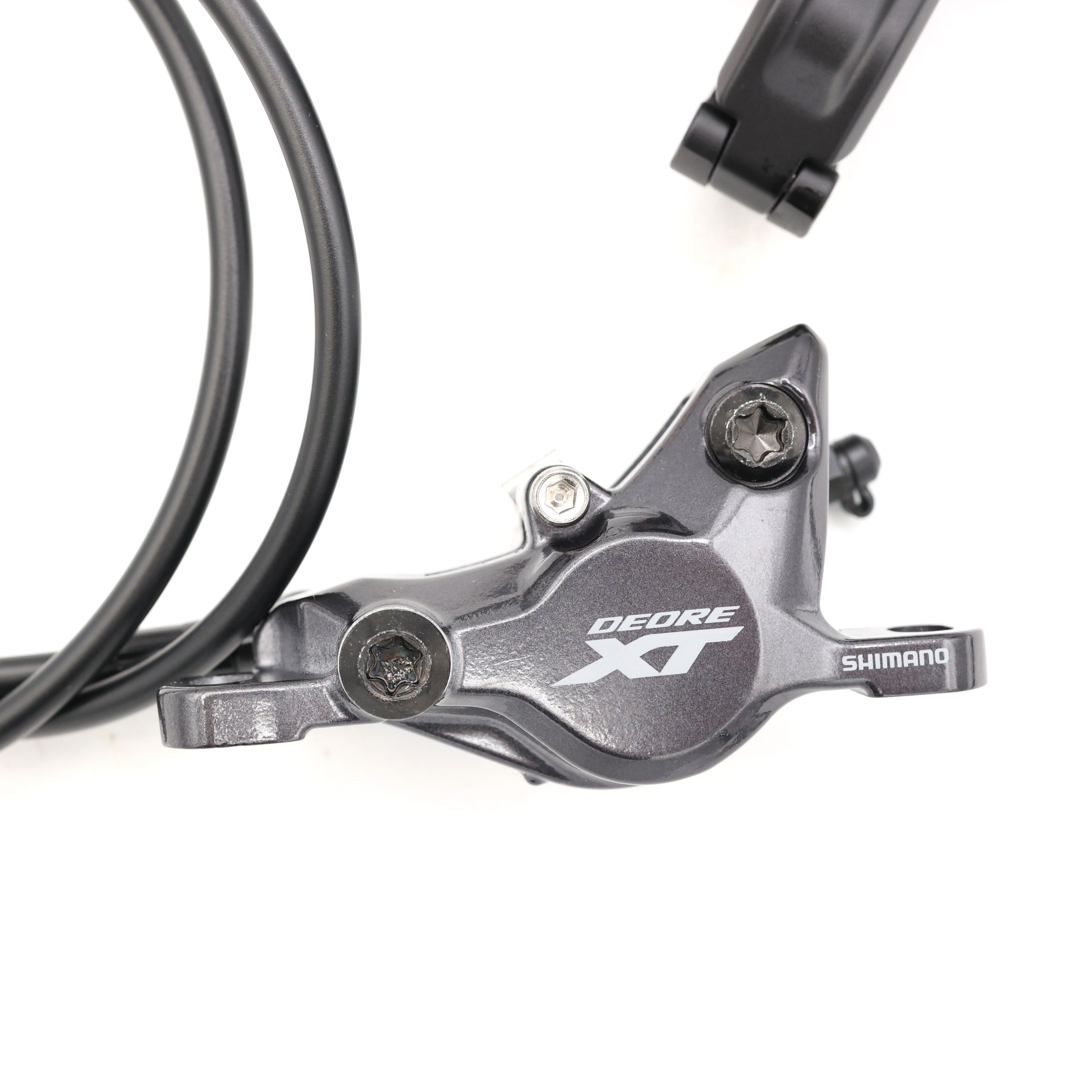

- Lightweight BR-M8100 two-piston brake caliper
- Servo Wave lever action provides quick pad engagement and controlled power
- Tool-free lever-reach adjustment
- Adjustable free stroke
- Additional lever-body contact point increases rigidity
- I-SPEC EV compatible for integrated Shimano shifter mounting
- One-Way Bleeding design simplifies brake maintenance
- Uses Shimano mineral hydraulic brake fluid
- Compatible with Shimano ICE Technologies finned brake pads
- 850mm hose is sized for front-brake installations
- J-Kit configuration facilitates internally routed installations
Specifications
| Brand |
Shimano |
| Series |
Deore XT M8100 |
| Position |
Left lever / front brake |
| Brake Lever |
BL-M8100 |
| Brake Caliper |
BR-M8100 |
| Brake Type |
Hydraulic disc brake |
| Number of Pistons |
2 |
| Caliper Mount |
Post mount |
| Brake Hose |
Shimano SM-BH90-SBM |
| Hose Length |
850mm |
| Hose Connection |
J-Kit / banjo caliper connection |
| Brake Fluid |
Shimano mineral oil |
| Lever Adjustment |
Tool-free reach and adjustable free stroke |
| Shifter Integration |
Shimano I-SPEC EV compatible |
| Pad Compatibility |
Shimano J-series resin or metal pads, including finned options |
| Recommended Rotor |
Shimano RT-MT800 or compatible Shimano rotor |
| Color |
Black |
Included

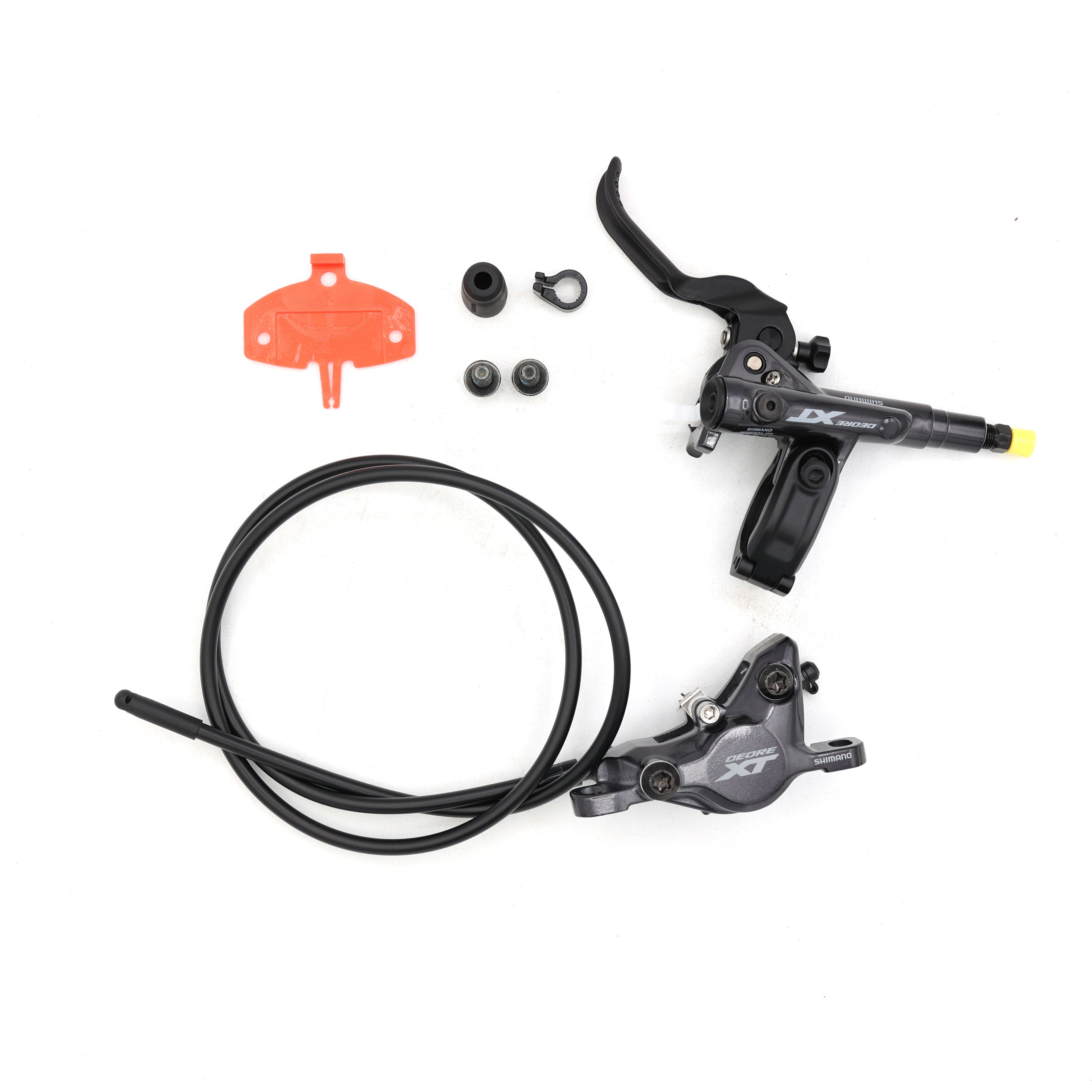

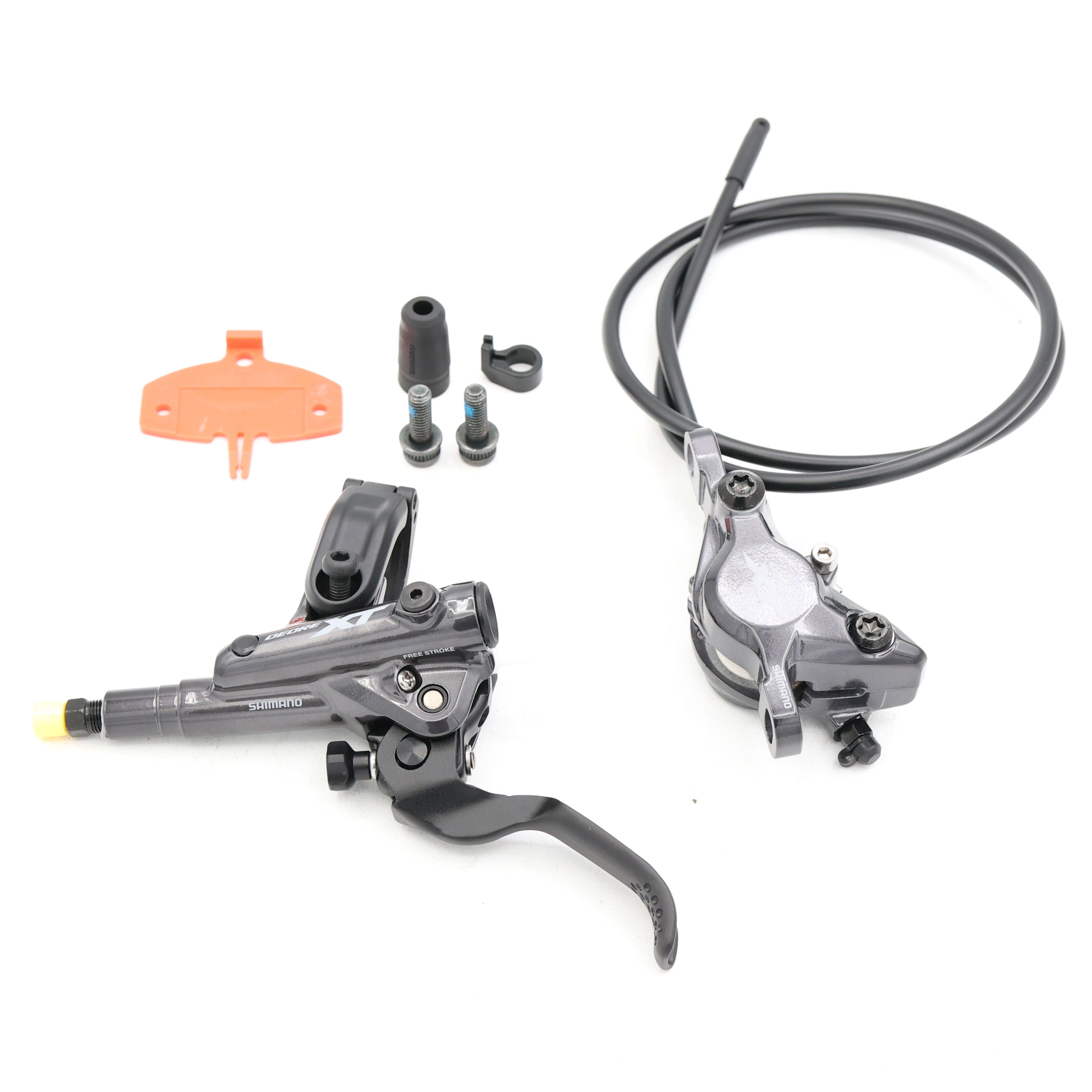

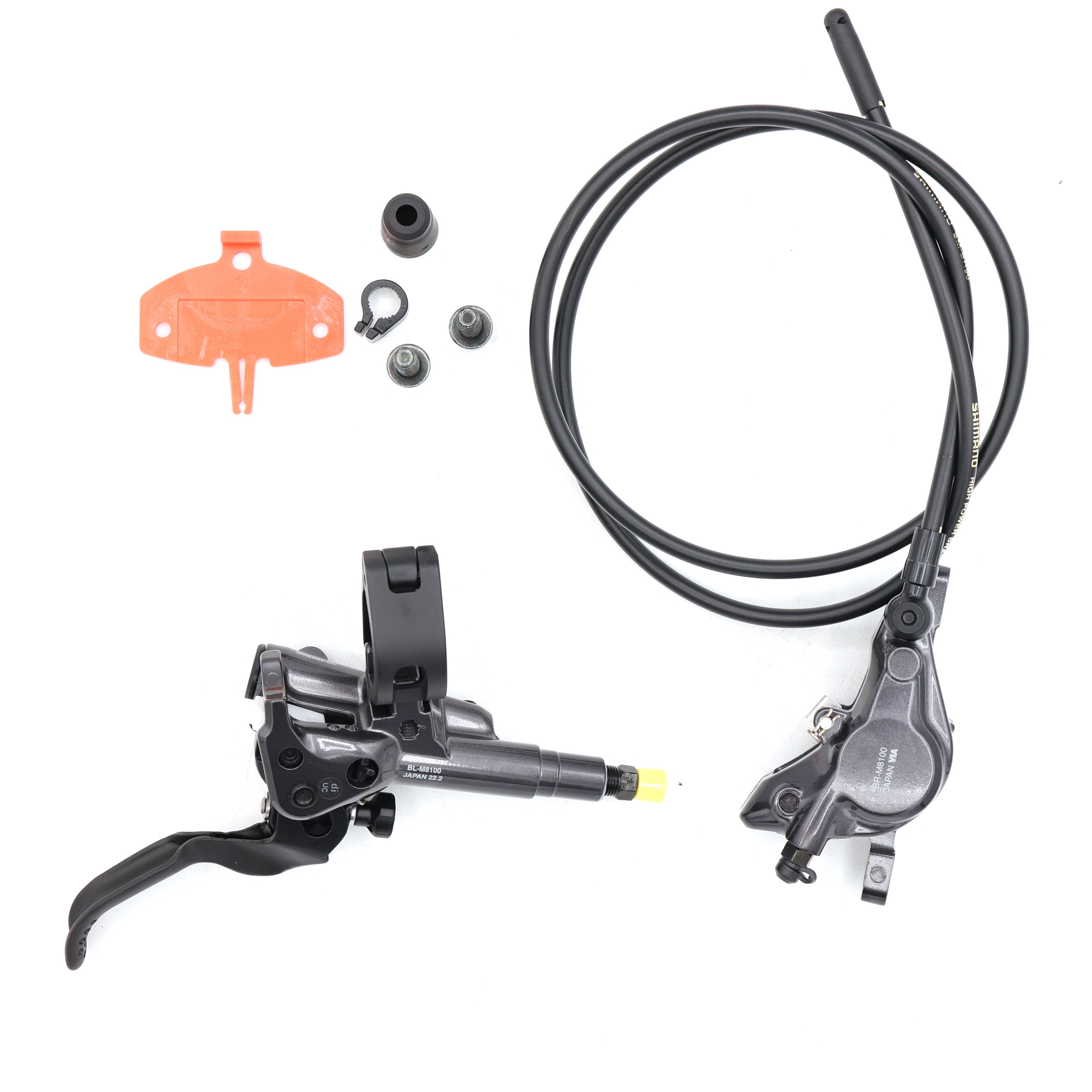

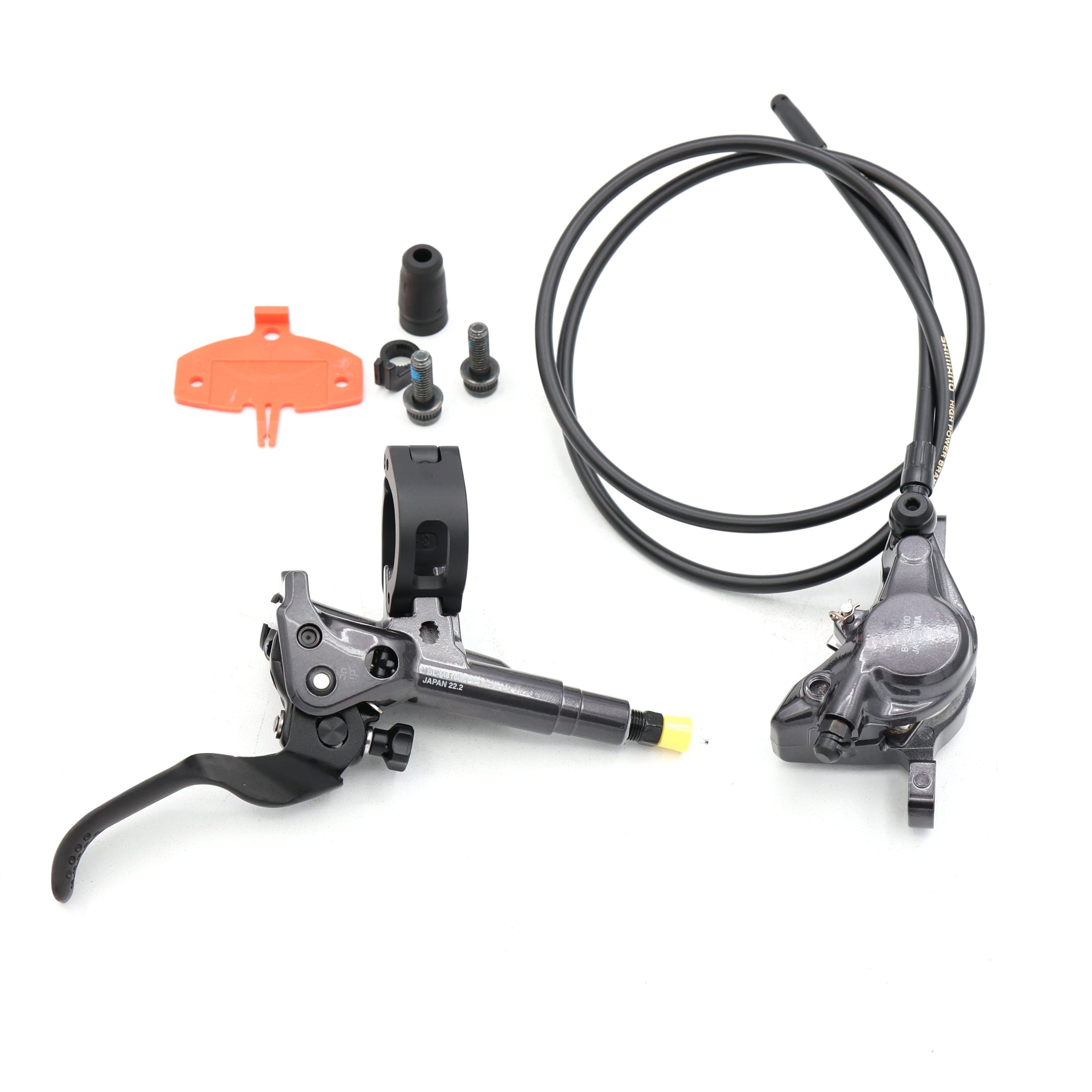

- Shimano Deore XT BL-M8100 left brake lever with clamp
- Shimano Deore XT BR-M8100 two-piston front brake caliper
- 850mm Shimano SM-BH90-SBM hydraulic brake hose
- Installed Shimano brake pads
- J-Kit connection components supplied with the assembly
Please note: The brake-pad compound and fin configuration can vary between OEM production batches; please review the listing photographs for the exact installed pads. The disc-brake rotor, rotor lockring or bolts, frame- or fork-specific caliper adapter and mounting hardware are not included unless specifically pictured.
J-Kit brakes may arrive with the hose disconnected from the lever to permit internal routing. Installation may require routing or shortening the hose, fitting the connector insert and performing a final mineral-oil bleed. Do not use DOT brake fluid with this system.
This is the BR-M8100 two-piston post-mount version, not the four-piston BR-M8120 model or flat-mount BR-M8110 caliper. Confirm the required caliper mounting standard, hose length, lever orientation and rotor size before purchasing.
This is a genuine Shimano OEM component and may be supplied without retail packaging. Please review the listing photographs for the exact included hardware and cosmetic condition. Professional installation is strongly recommended.
