Product Description
The Trek Project One Fuel EX Gen 6 is a versatile carbon trail platform built for riders who want confident descending, efficient climbing, and modern all-around trail performance. This bare frame uses OCLV Mountain Carbon construction and is designed around 140mm rear travel with progressive trail geometry that adds control on descents while keeping the rear end efficient under power.
As a Project One frame, it is a unique custom Trek offering rather than a standard off-the-shelf frameset. It features premium frame details like internal storage, adjustable geometry, guided internal routing, magnesium rocker link, UDH, and Boost148 spacing, making it an excellent foundation for a high-end custom build.
Key Features
-

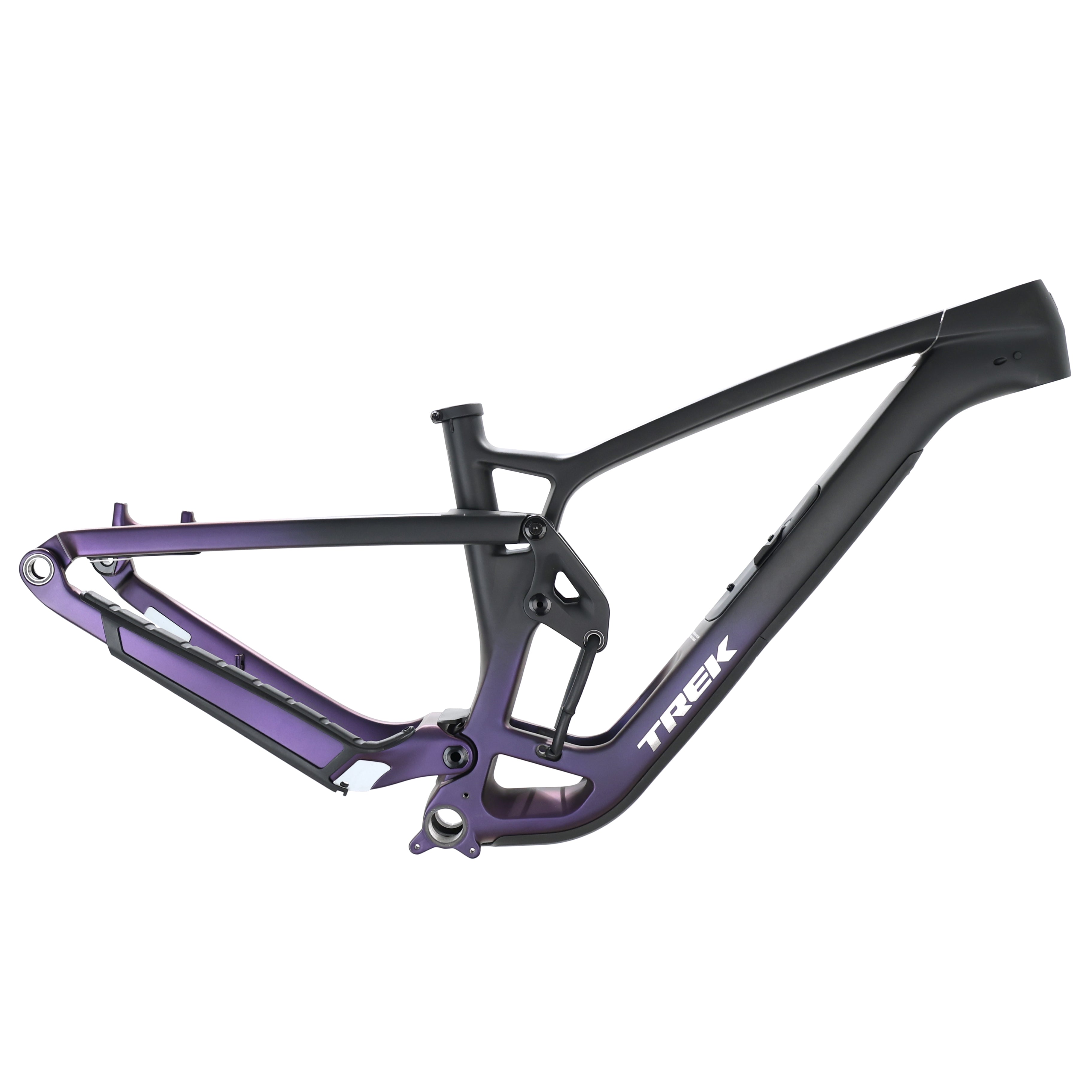

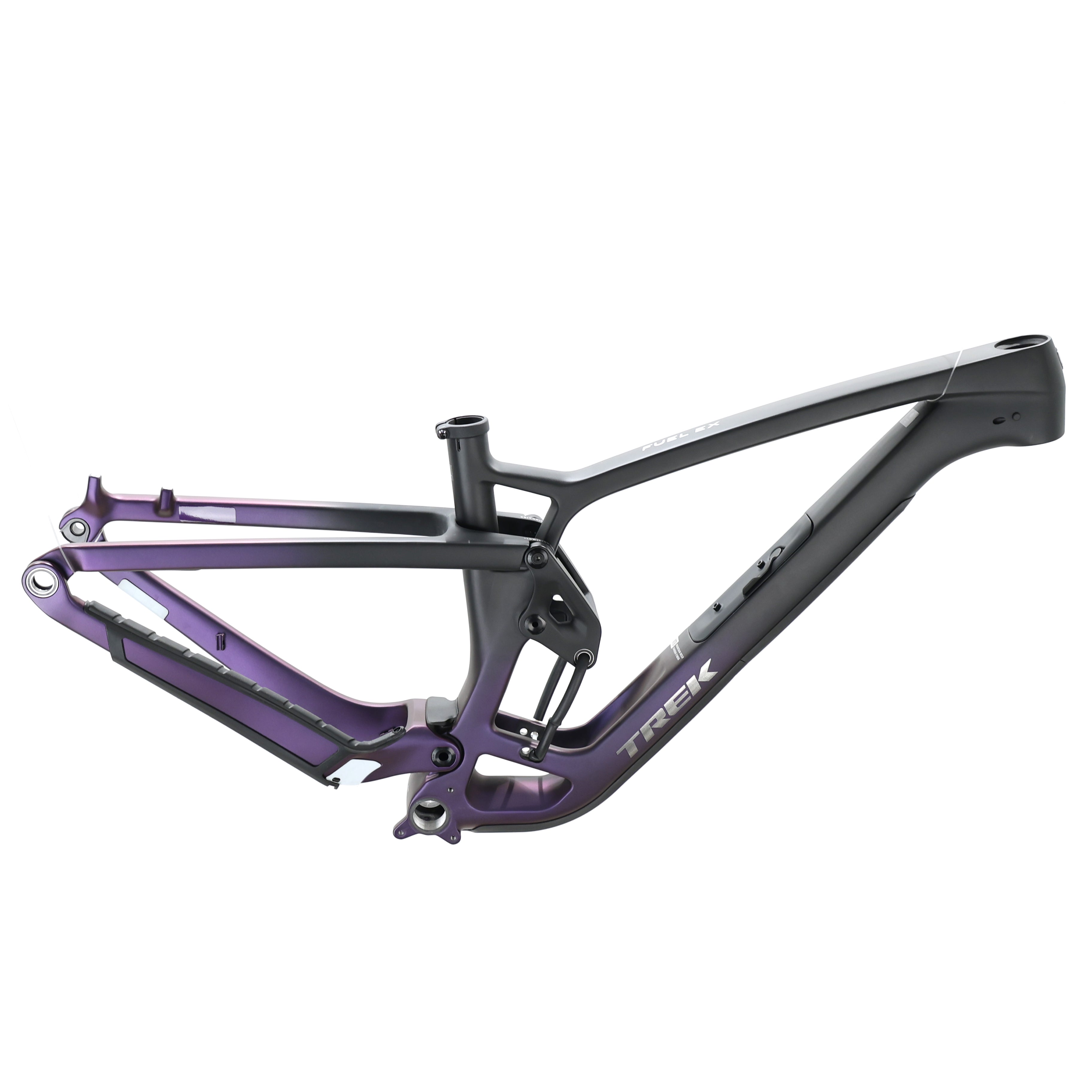

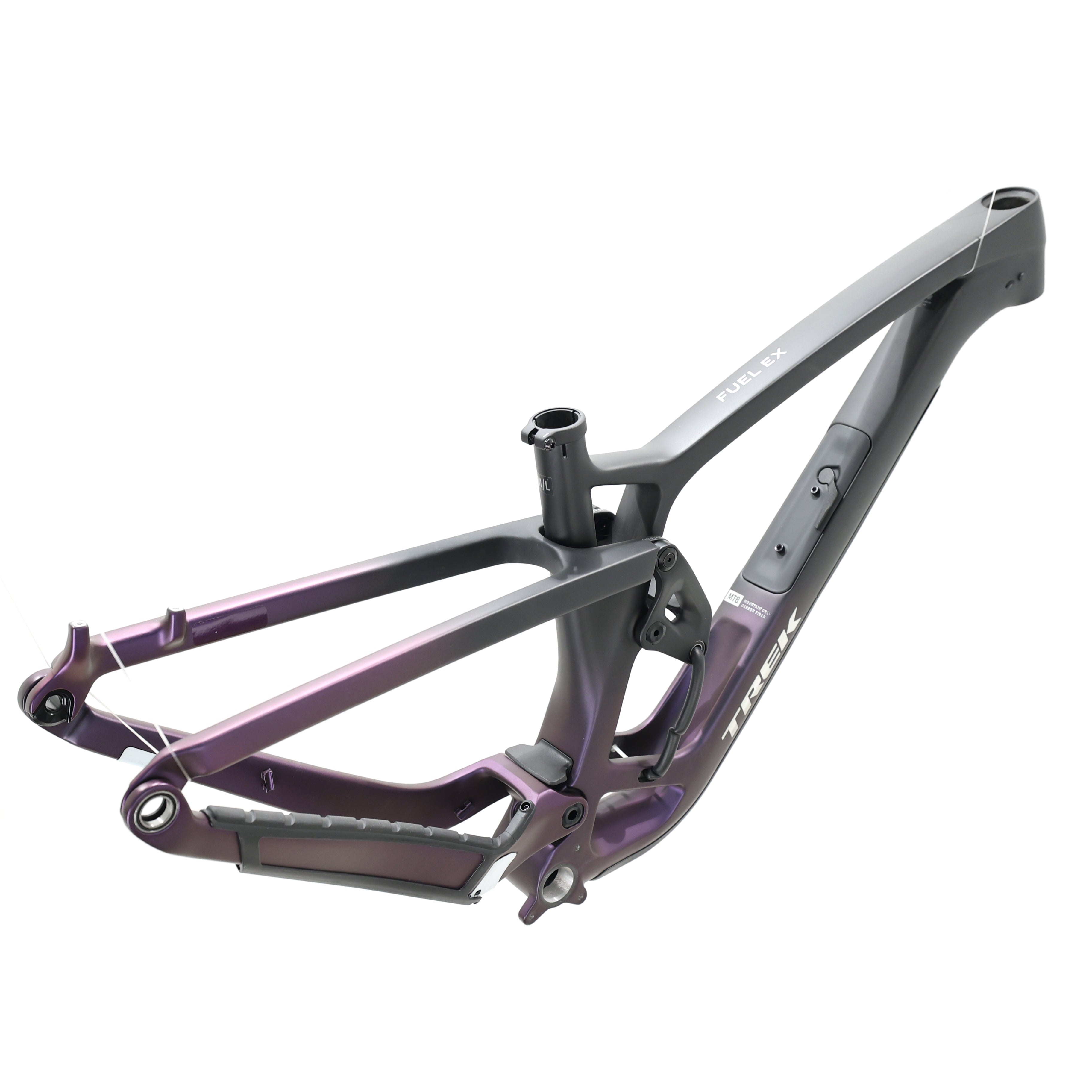

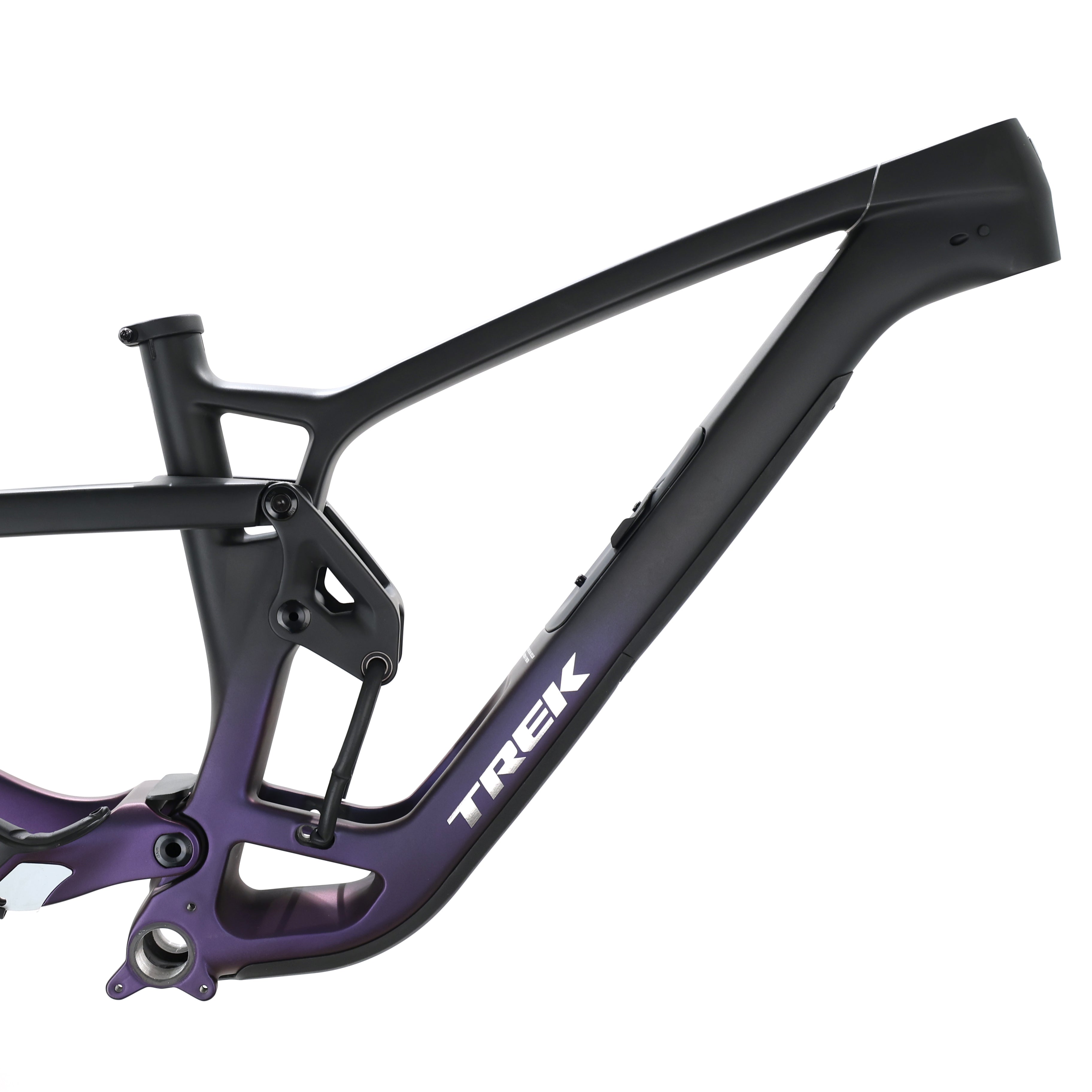

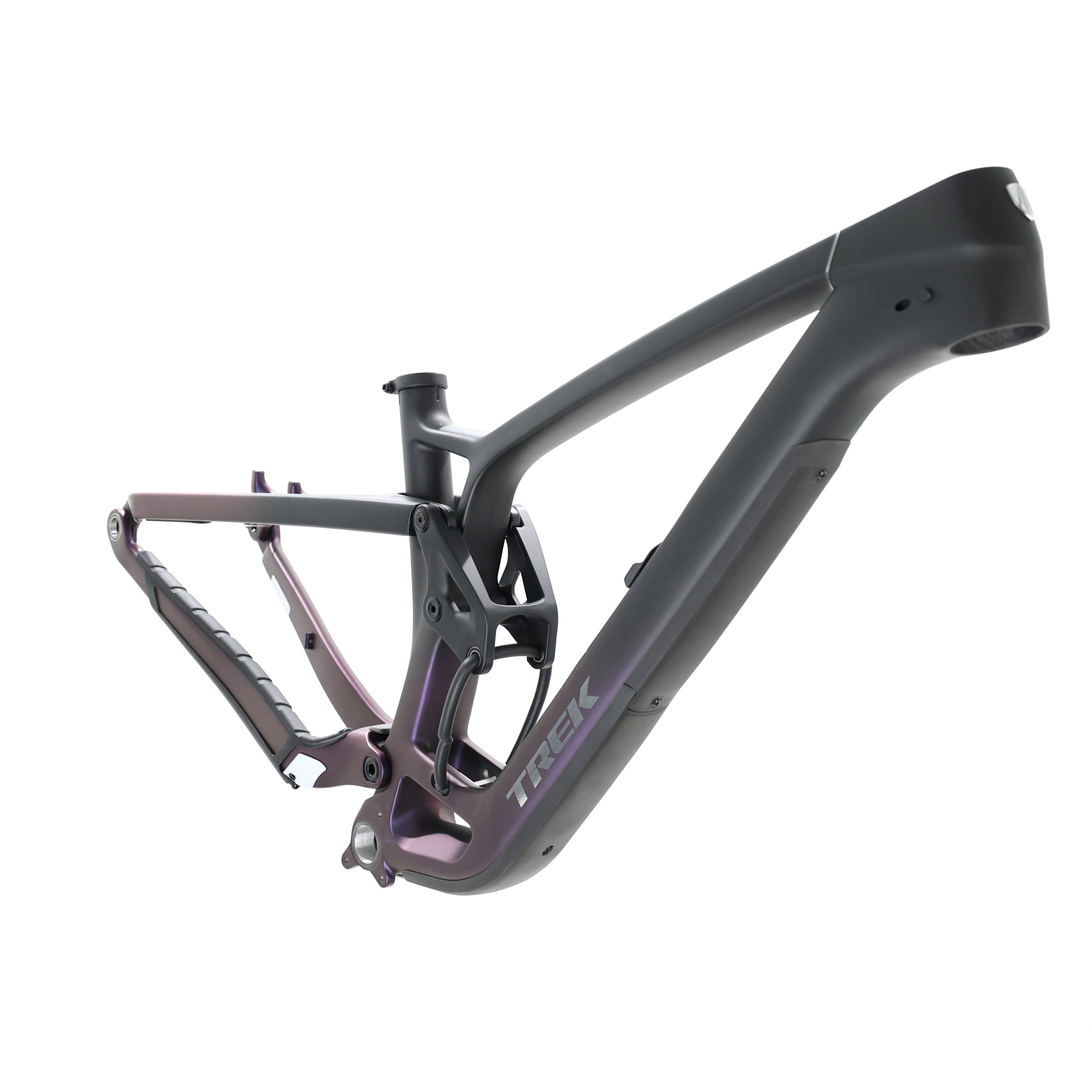

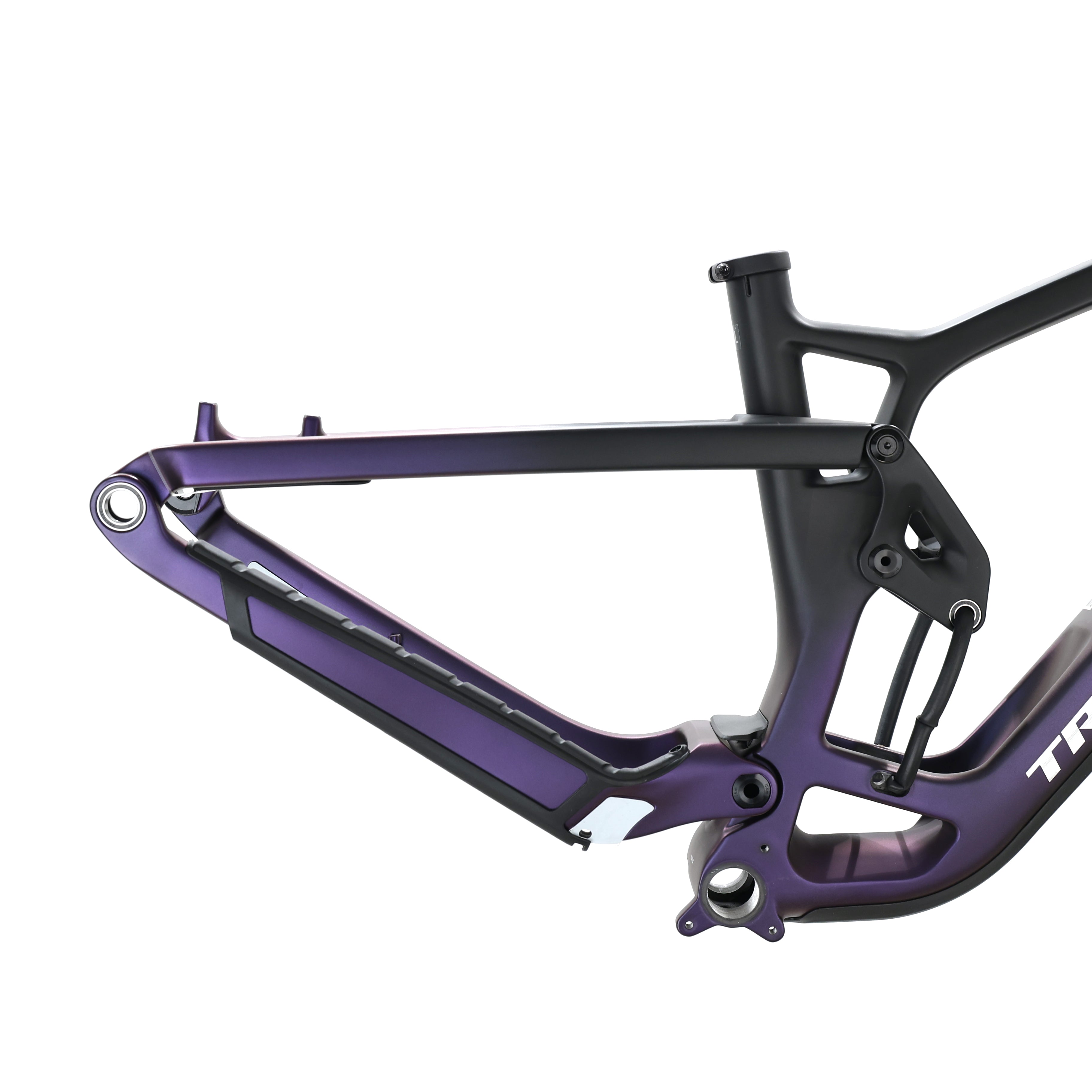

Trek Project One Fuel EX Gen 6 bare frame
-
OCLV Mountain Carbon construction
- Built for aggressive trail riding with 140mm rear travel

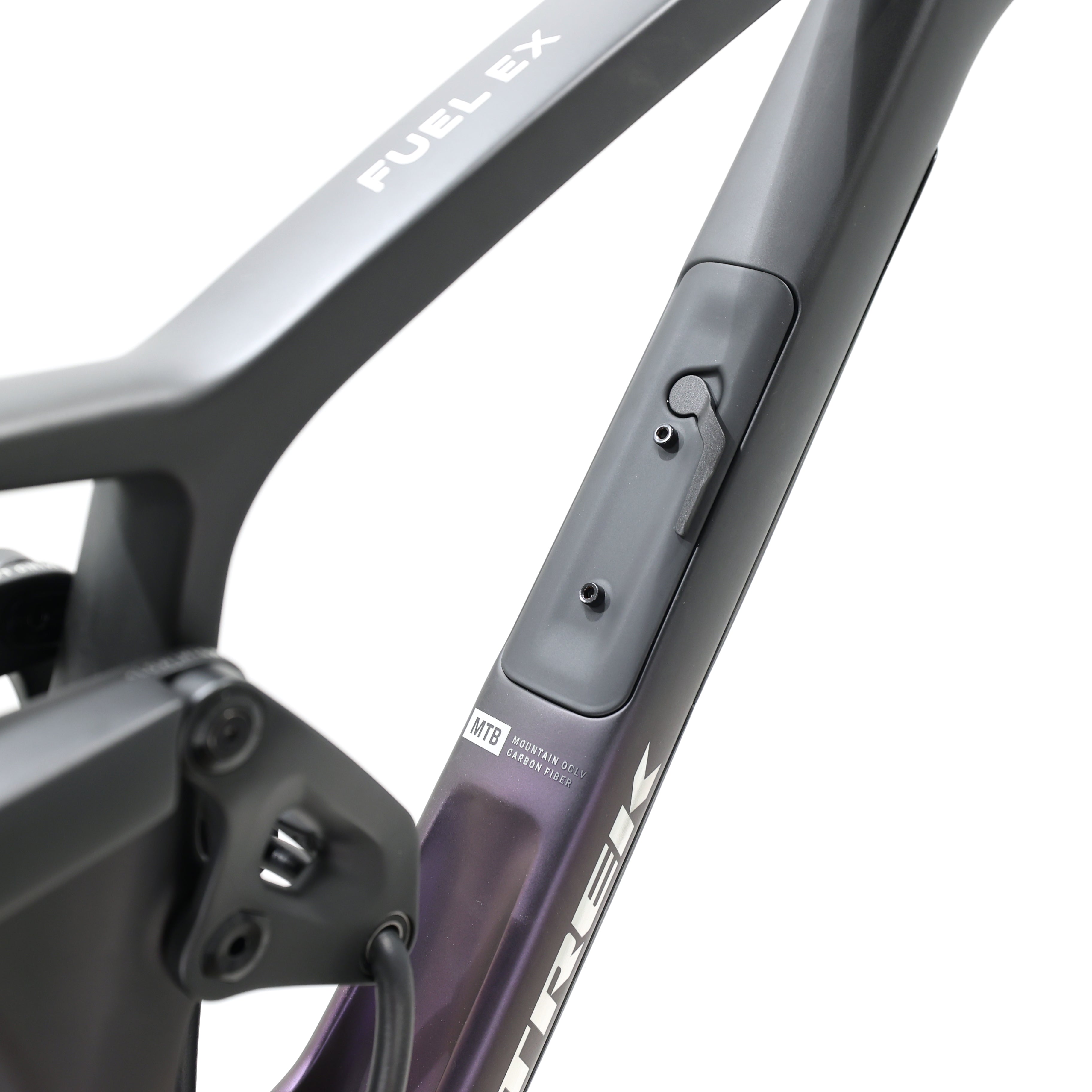

- Internal storage
- Angle-adjust headset compatible
-
Mino Link adjustable geometry
- Adjustable leverage rate
- Guided internal routing
- Magnesium rocker link
- 34.9mm seat tube
-
ISCG 05 tabs
- 55mm chainline
-
BSA 73 threaded bottom bracket shell
-
Downtube guard and shuttle guard
-
ABP suspension design
-
UDH derailleur hanger compatibility
-
Boost148 rear spacing
- Compatible with 29 x 2.50" tires on this frame size
- Max chainring size: 34T round / 32T oval
- Minimum chainring size: 28T
Specifications
- Brand: Trek
- Model: Project One Fuel EX Gen 6 Frame
- Year: 2024
- Color: Deep Smoke
- Wheel Size: 29"
- Frame Material: OCLV Mountain Carbon
- Rear Travel: 140mm
- Rear Spacing: Boost148
- Bottom Bracket: BSA 73 threaded
- Chainline: 55mm
- Seat Tube Diameter: 34.9mm
- Headset Type: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle-adjust cup compatible
- Suspension Features: Mino Link, adjustable leverage rate, ABP, magnesium rocker link
- Routing: Guided internal routing
- Protection: Downtube guard, shuttle guard
- ISCG Mount: ISCG 05
- Max Tire Size: 29 x 2.50"
- Max Chainring Size: 34T round / 32T oval
- Min Chainring Size: 28T
- Max Rear Rotor Size: 203mm
- Rear Brake Mount: 180mm direct post mount
- Weight: 3.40 kg / 7.5 lb in size M
Shock Fitment
- Designed for: 185mm x 55mm rear shock
- Stock shock spec: Fox Factory Float X, 2-position damper, 185mm x 55mm
- Aftermarket shock hardware size:
- Upper: 54mm x 10mm Trunnion
- Lower: 40mm x 8mm standard pin mount
Compatibility
Compatible with:
- 29" wheels
- Tires up to 29 x 2.5"
- Forks up to 160mm travel on carbon 29er sizes like this one
- 1x drivetrains only
- Chainrings from 28T to 34T round or 32T oval
- Cranks with 30mm spindles
-
ISCG-05 chain guides
-
UDH derailleur hanger systems
- Alloy or carbon stays for the same wheel size platform
Fit and frame notes:
-
No Knock Block on this generation of Fuel EX
- Mullet setups are possible on Fuel EX Gen 6, but this listing is for the 29er frame platform
- Fuel EX is a purpose-built trail bike and does not have mounts for kickstand, racks, or fenders
Included
- Trek Project One Fuel EX Gen 6 main frame
- Trek Project One Fuel EX Gen 6 rear triangle
Not Included
- Shock
- Fork
- Headset
- Axles
- Hardware
- Small parts
Warranty and Notes
- Bare frame only. This is not a traditional complete off-the-shelf frameset.
- This is a unique Trek Project One frame and a genuine direct-purchased Trek product.
- Includes only what is pictured.
- This listing includes the main frame and rear triangle only.
- No shock, hardware, small parts, axle, or headset included.
- For the best guidance on sourcing the correct build parts, we recommend working with your local Trek dealer. They can help confirm compatibility based on your intended build and setup.
- For size recommendations and geometry charts, please refer to Trek’s official website for the most accurate model-specific fit information.
- This is a genuine Trek product and is eligible for Trek’s full factory warranty when assembled by an authorized Trek dealer. Please retain your build invoice and proof of purchase for any future warranty claim.
Condition
- New
- Genuine OEM product
- Includes only what is shown or described
