Product Description

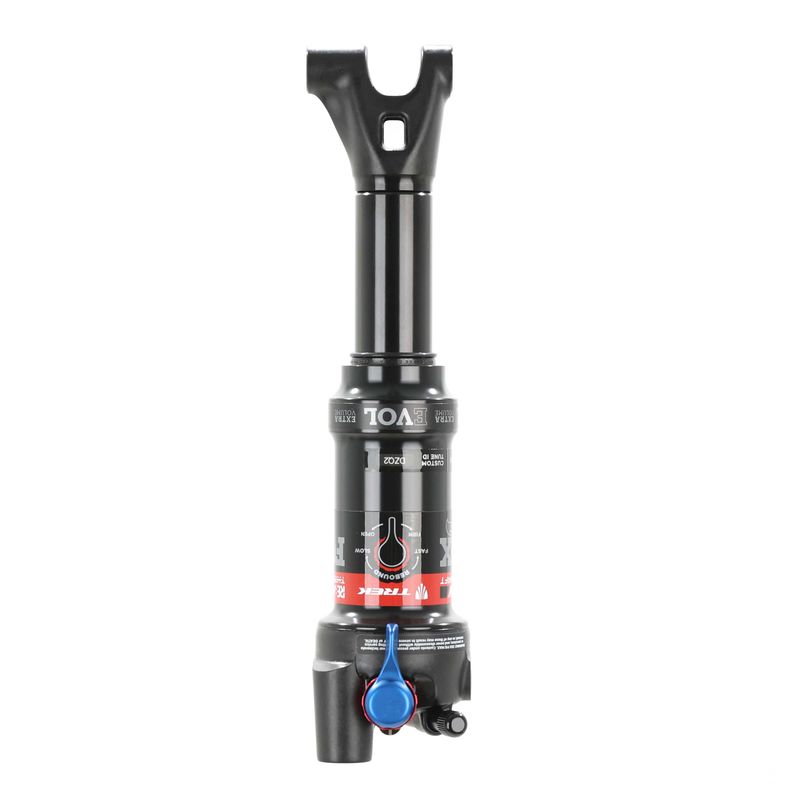

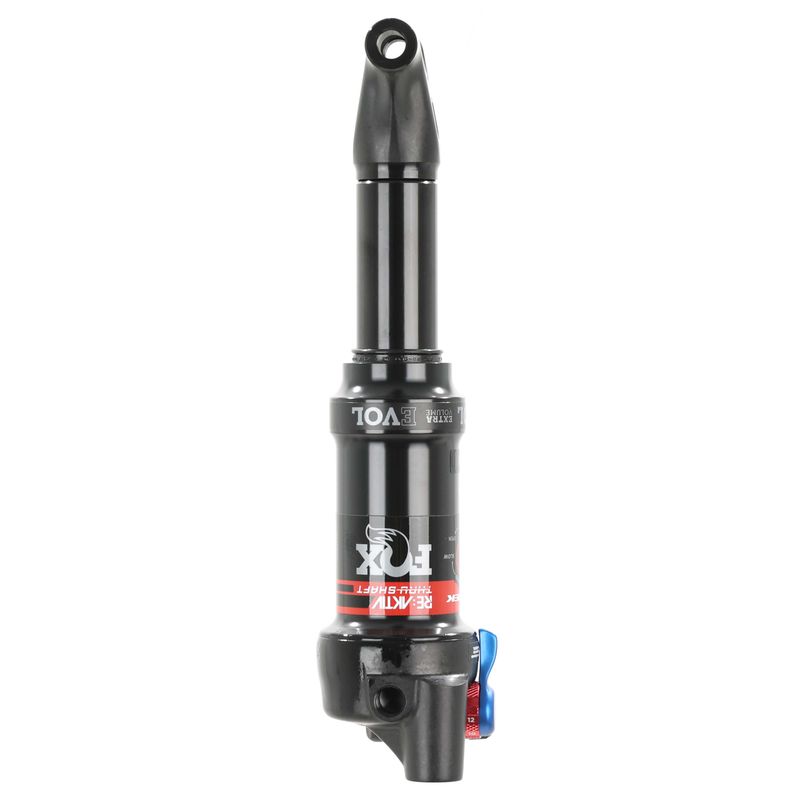

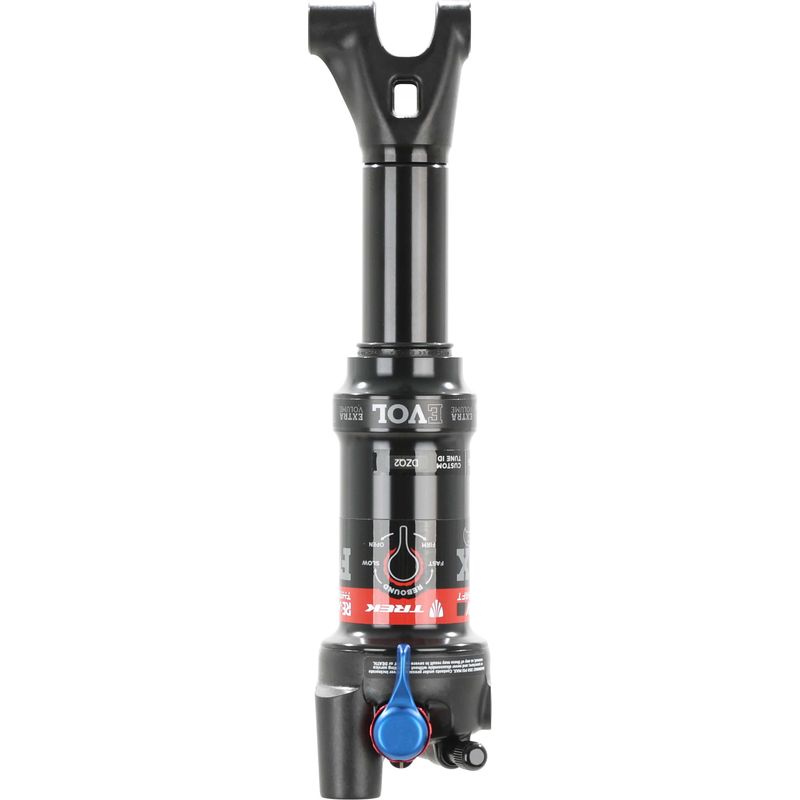

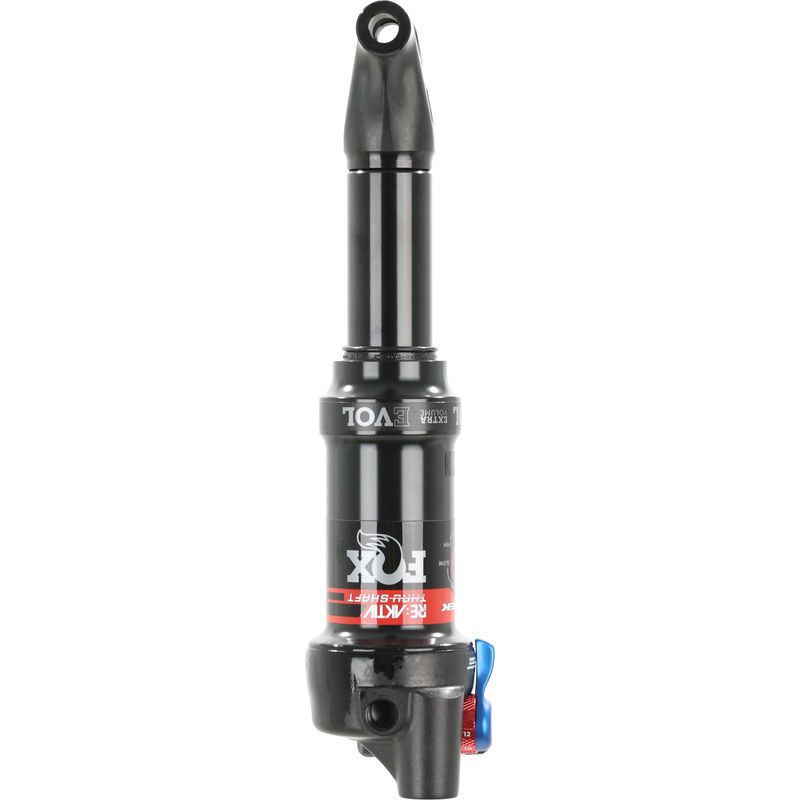

The FOX Performance RE:aktiv Thru Shaft rear shock is a genuine Trek replacement component custom tuned by the Trek Suspension Lab for compatible Trek Fuel EX suspension platforms.
This Trek-specific shock features a 210mm eye-to-eye length, 55mm stroke, EVOL large-volume air sleeve, and ultra-responsive RE:aktiv damping with FOX Thru Shaft technology. The system is designed to provide supportive pedaling performance while reacting quickly to trail impacts for improved traction, control, and suspension consistency.
External rebound adjustment and a three-position damper allow the rider to fine-tune suspension performance for changing terrain and riding conditions. This specialized shock uses Trek-specific trunnion mounting dimensions, so exact bicycle compatibility should be confirmed before purchase.
Key Features
- Genuine FOX Performance rear air shock
- Custom tuned by Trek Suspension Lab
- Designed for compatible Trek Fuel EX models
-

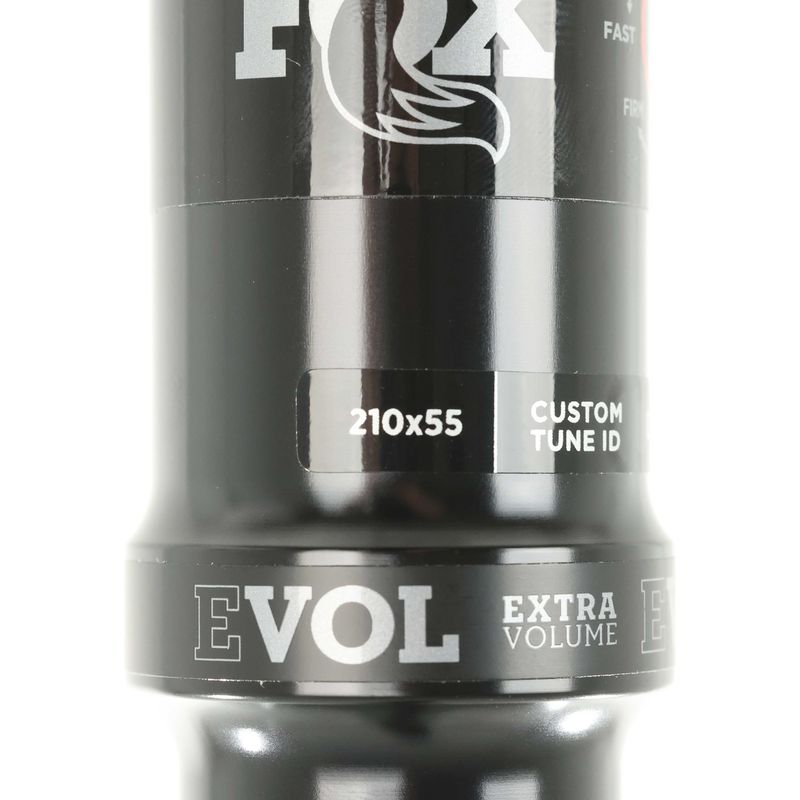

210 x 55mm eye-to-eye and stroke

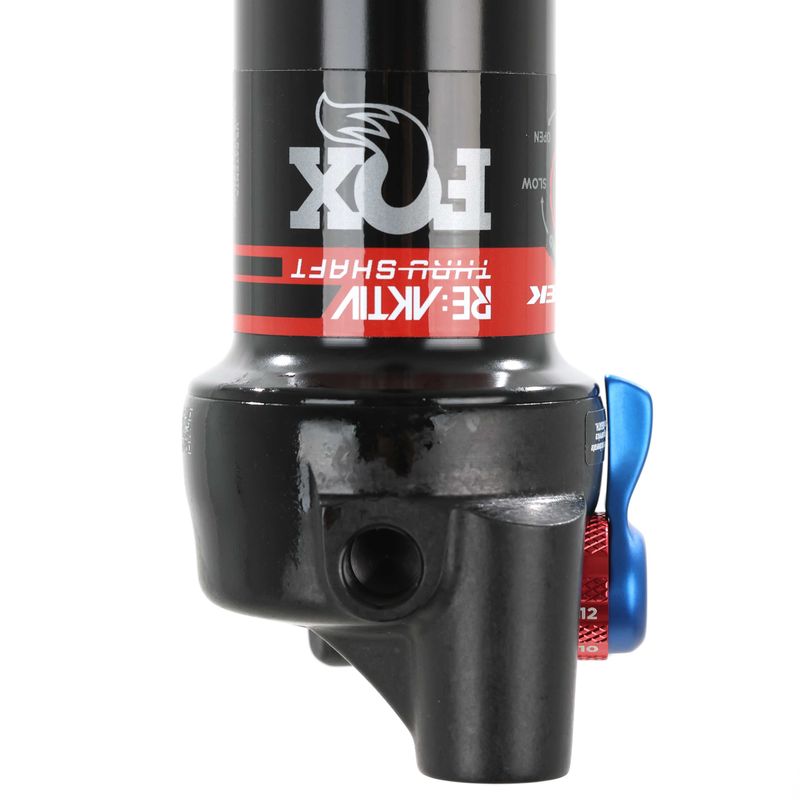

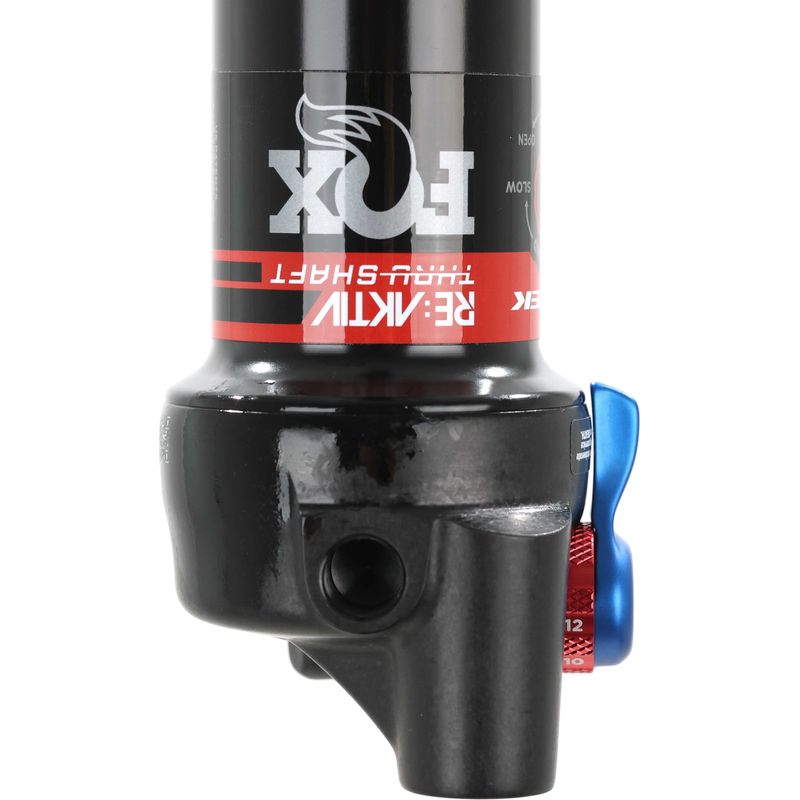

- RE:aktiv with Thru Shaft damping technology
- 9mm Thru Shaft

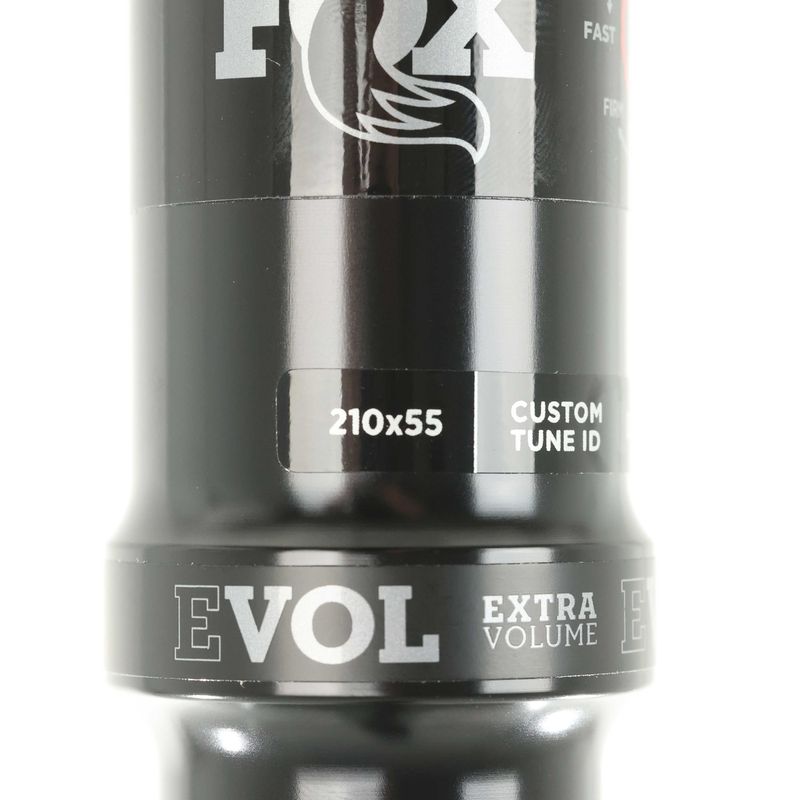

- EVOL large-volume air sleeve

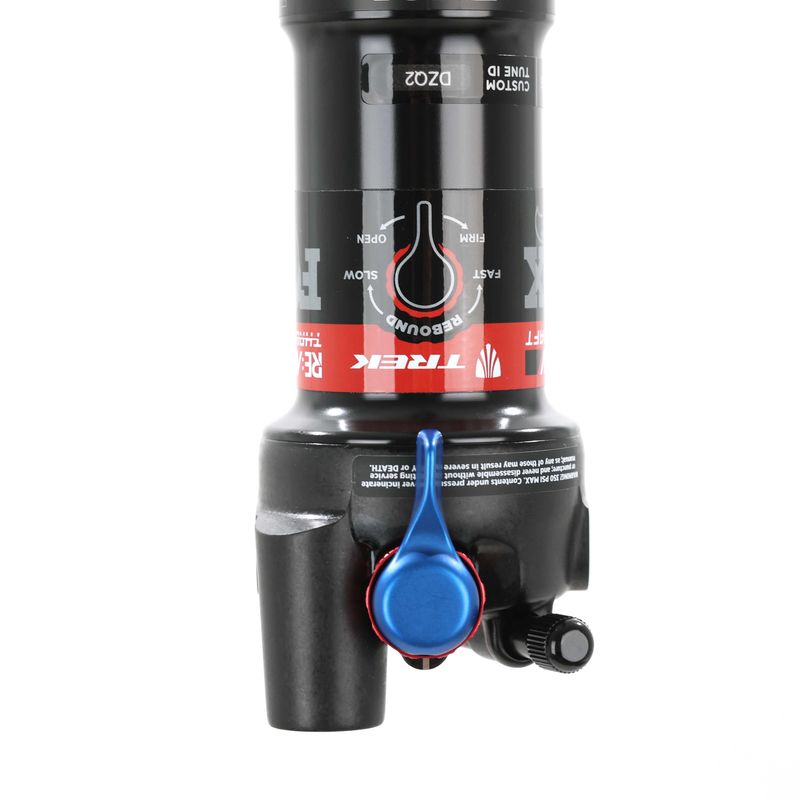

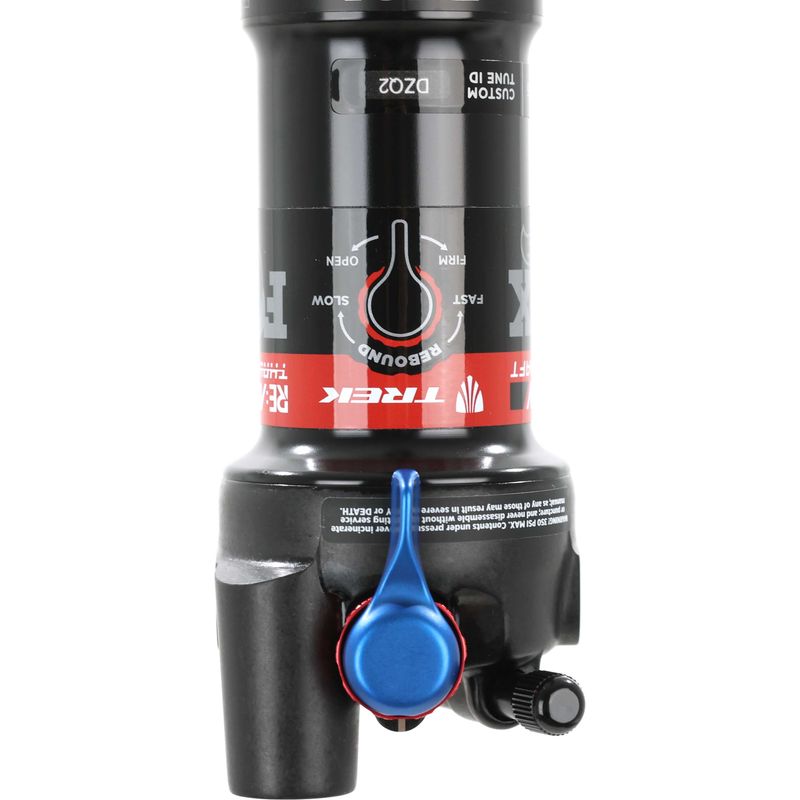

- External rebound adjustment
- Three-position damper
- Trek-specific trunnion mounting configuration
- Factory 0.4 volume spacer

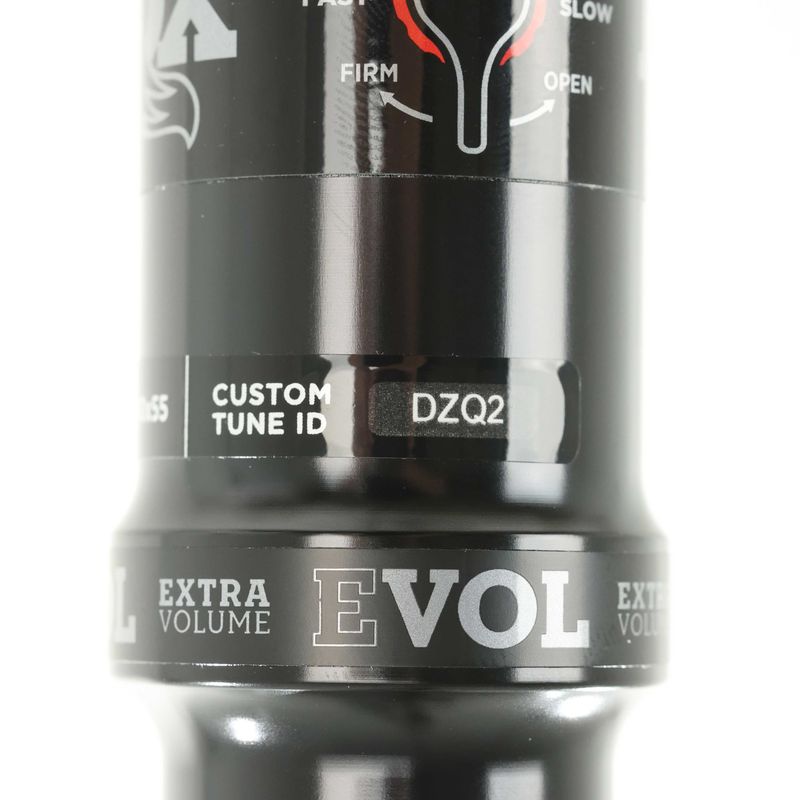

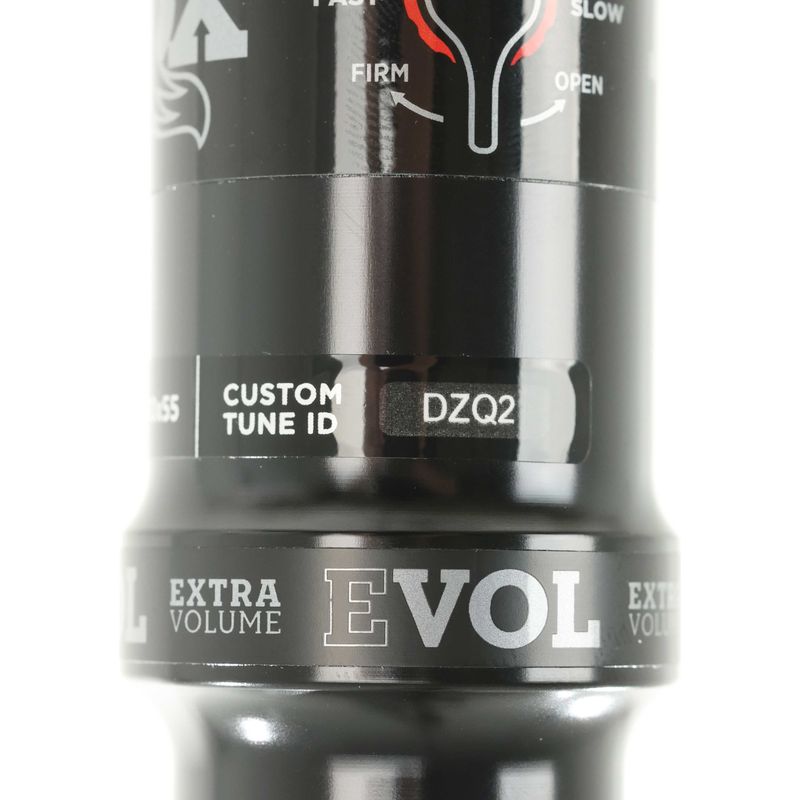

- Tune ID: DZQ2
- New
Specifications
- Brand: FOX
- Model: Performance RE:aktiv Thru Shaft
- Series: 2022_20 Series
- Product Type: Rear Air Shock
- Eye-to-Eye Length: 210mm
- Stroke: 55mm
- Configuration: 210 x 55mm
- Air Sleeve: EVOL LV
- Spring Type: Air
- Damper: RE:aktiv Thru Shaft
- Thru Shaft Diameter: 9mm
- Compression Adjustment: Three-Position
- Rebound Adjustment: External
- Remote: No
- Volume Spacer: 0.4
- Trek Designation: EX130
- Tune ID: DZQ2
- FOX Part Number: 972-61-245
- Finish: Black
FOX Description Code
- 2022_20
- 9mm Thru Shaft
- A
- 3-Position
- Trunnion
- EVOL LV
- Trek
- EX130
- 210mm
- 55mm
- 0.4 Spacer
- CL
- RM
- RaM
Mounting Dimensions

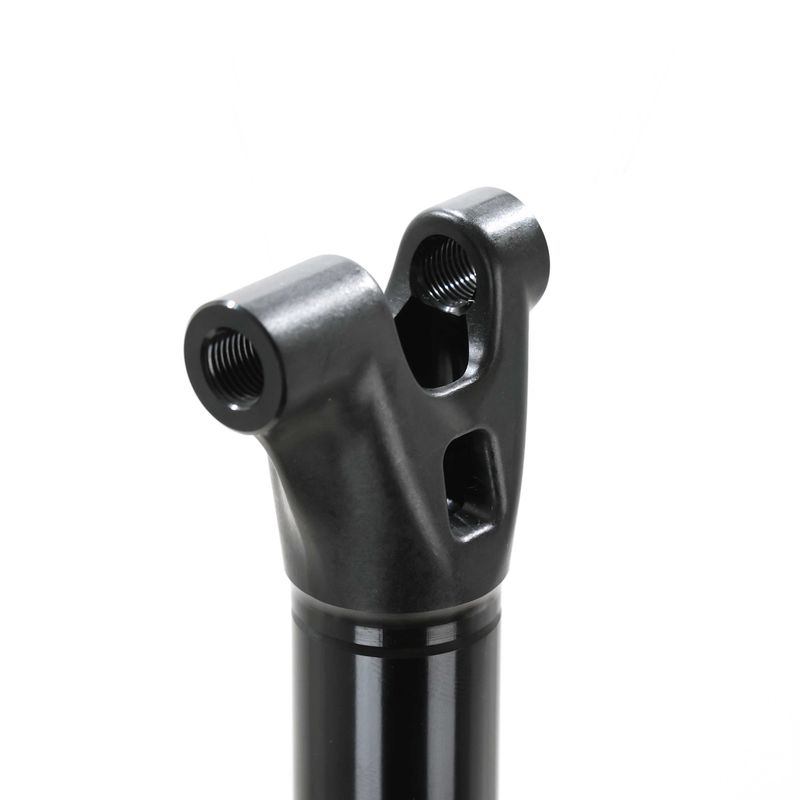

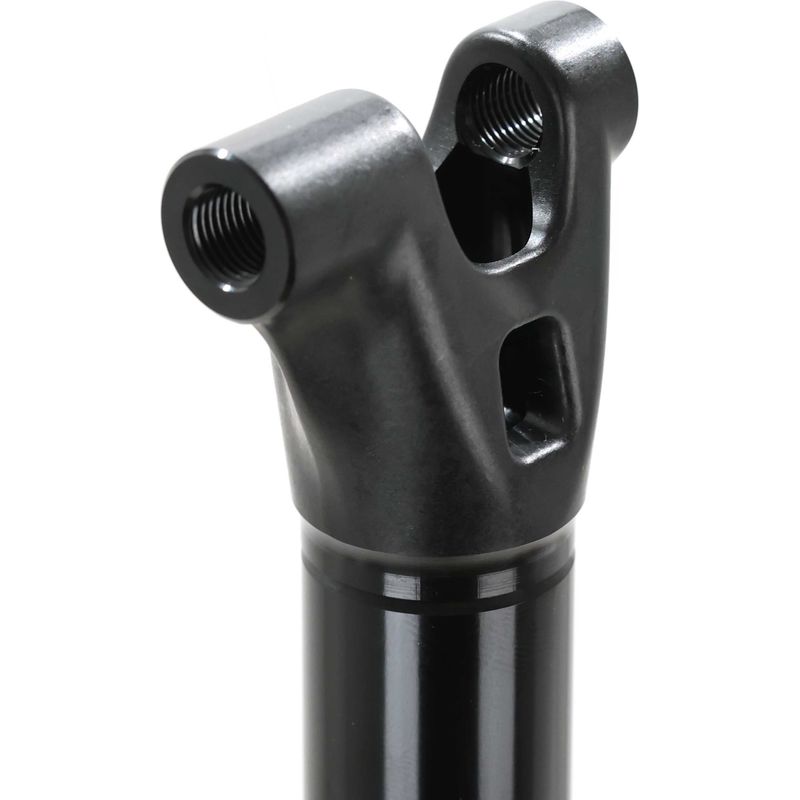

Upper Mount
- Mount Type: Trunnion
- Width: 54mm
- Hardware Diameter: 10mm
Lower Mount
- Mount Type: Trunnion
- Width: 50mm
- Hardware Diameter: 10mm
Compatibility
Designed for compatible Trek Fuel EX frames requiring:
- 210mm eye-to-eye length
- 55mm stroke
- Trek RE:aktiv Thru Shaft suspension design
- 54mm upper trunnion mounting width
- 10mm upper hardware diameter
- 50mm lower mounting width
- 10mm lower hardware diameter
- Compatible Trek Suspension Lab tune
- FOX Tune ID DZQ2
This is a specialized Trek-specific Thru Shaft shock. A standard 210 x 55mm rear shock should not automatically be considered interchangeable.
The 55mm-stroke version should also not be substituted for a 210 x 52.5mm shock unless Trek specifically approves the change for the exact bicycle model and frame configuration. Additional stroke may affect suspension travel and frame, linkage, or tire clearance.
Please compare the FOX part number, Tune ID, dimensions, bicycle model, model year, and original shock specifications before purchase.
Included
- FOX Performance RE:aktiv Thru Shaft 210 x 55mm rear shock
- Factory-installed 0.4 volume spacer
- Includes only what is pictured and described
Warranty and Notes
- Genuine FOX and Trek replacement component
- Custom tuned by Trek Suspension Lab
- Frame mounting bolts and additional hardware are included only when pictured or stated
- Professional installation and suspension setup are recommended
- Confirm exact Trek Fuel EX compatibility before ordering
Condition
- New
- Genuine FOX and Trek product
- Includes only what is pictured and described
