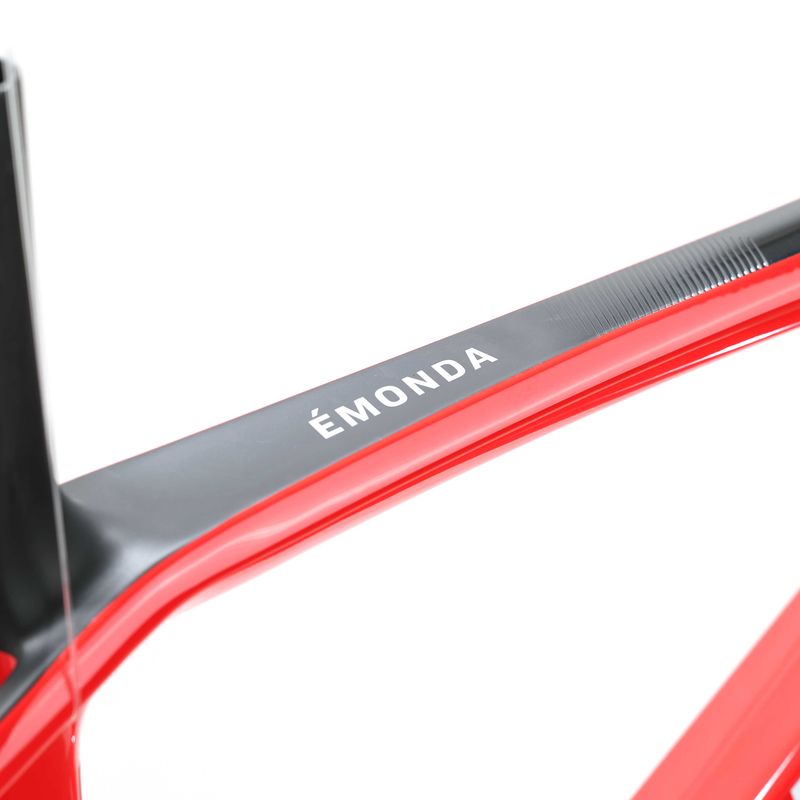

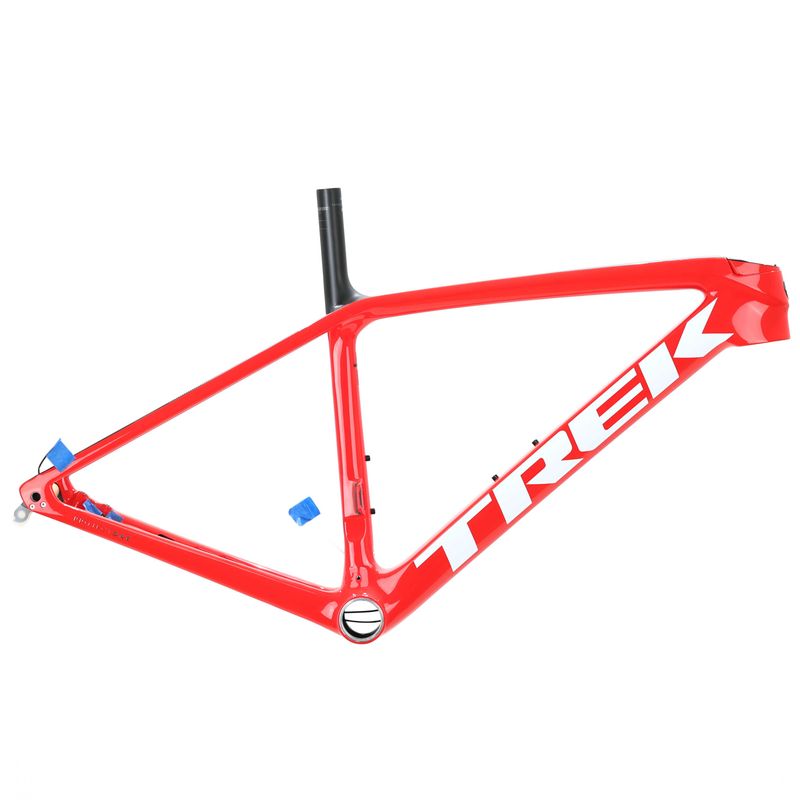

Introducing the Émonda SLR Frameset: Your Gateway to Ultralight, Aero Road Excellence
The Émonda SLR Frameset is the epitome of ultralight, aerodynamic carbon road frames, meticulously engineered for blazing climbs with unmatched speed. Crafted from our advanced 800 Series OCLV Carbon, it combines exceptional ride quality with aerodynamic prowess, providing the free speed you crave on every gradient.
Is It Right for You?
- If you demand more than just an ultralight road frame — if you seek impeccable handling, balance, enhanced aero performance, and the freedom to create your dream bike with your preferred components, then this frameset is your canvas.
Cutting-Edge Technology:
- Boasts an ultralight and aerodynamic 800 Series OCLV Carbon frame, tipping the scales at under 700 grams.
- Designed for a T47 bottom bracket and flat-mount disc brakes for precision and power.
The Final Word The Émonda SLR is not just incredibly lightweight and fast; it's a harmonious masterpiece. It serves as the perfect starting point for crafting your dream lightweight road bike.
Why You'll Love It
- This road rocket excels in rapid climbs, offering both aerodynamics and a weight under 700g.

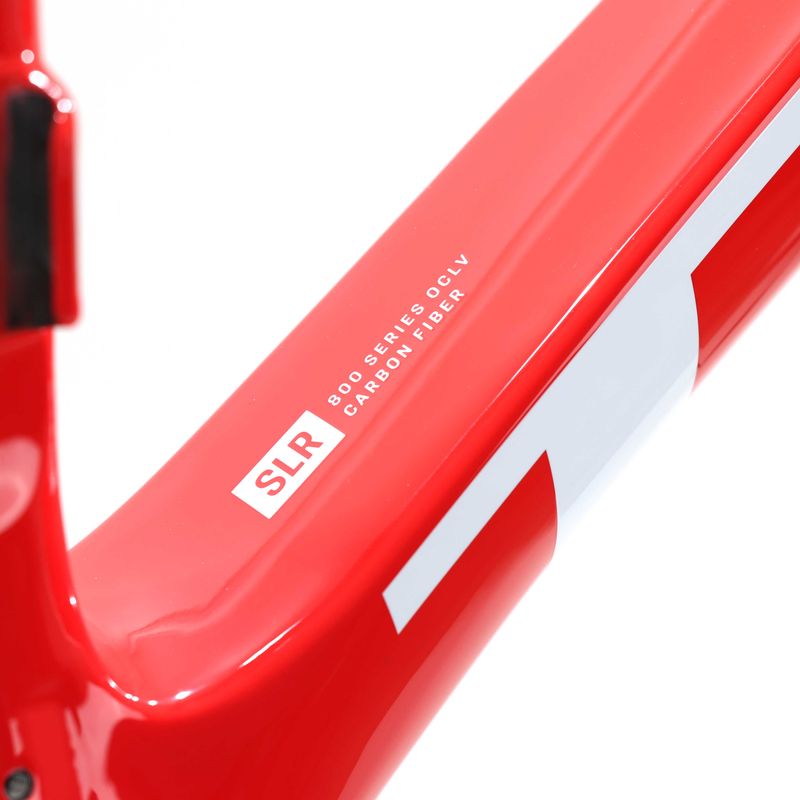

- The 800 Series OCLV Carbon frame is astonishingly lightweight and meticulously engineered for exceptional performance.
- Its aerodynamic tube shaping ensures wicked speed, whether you're conquering flats or ascents.
Specifications:
-

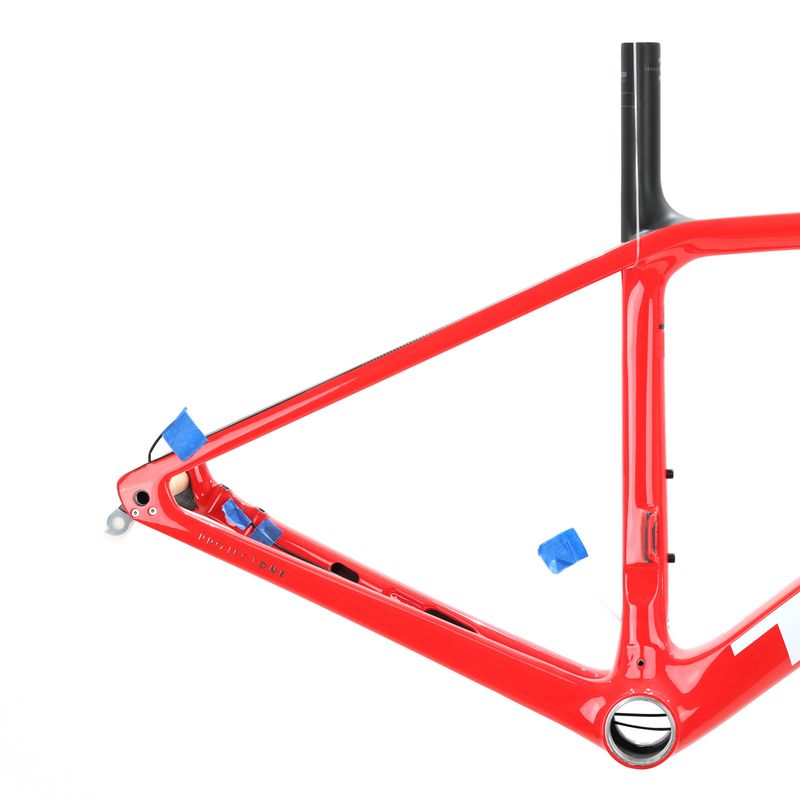

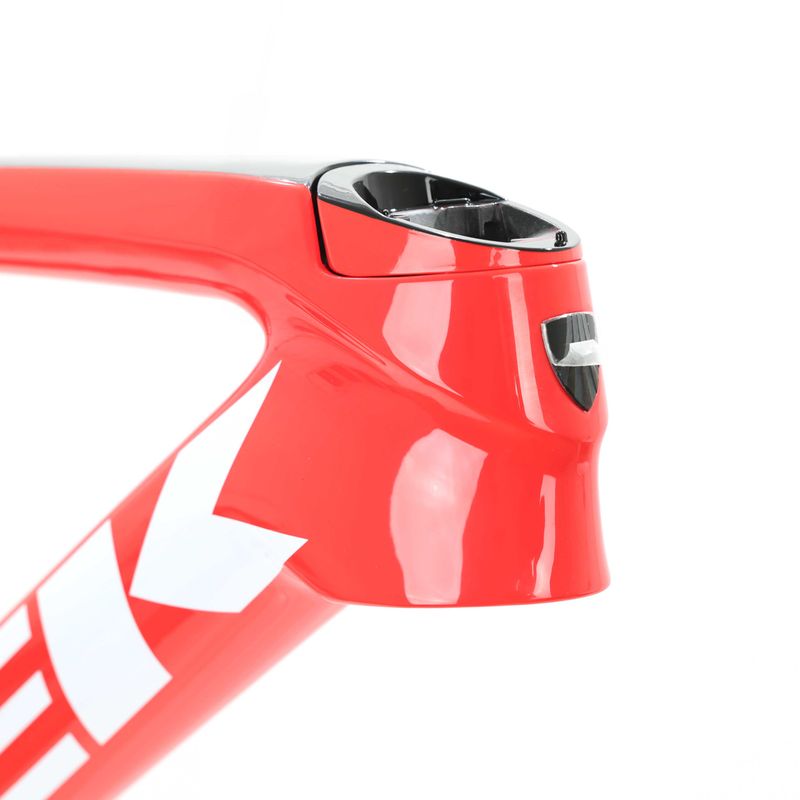

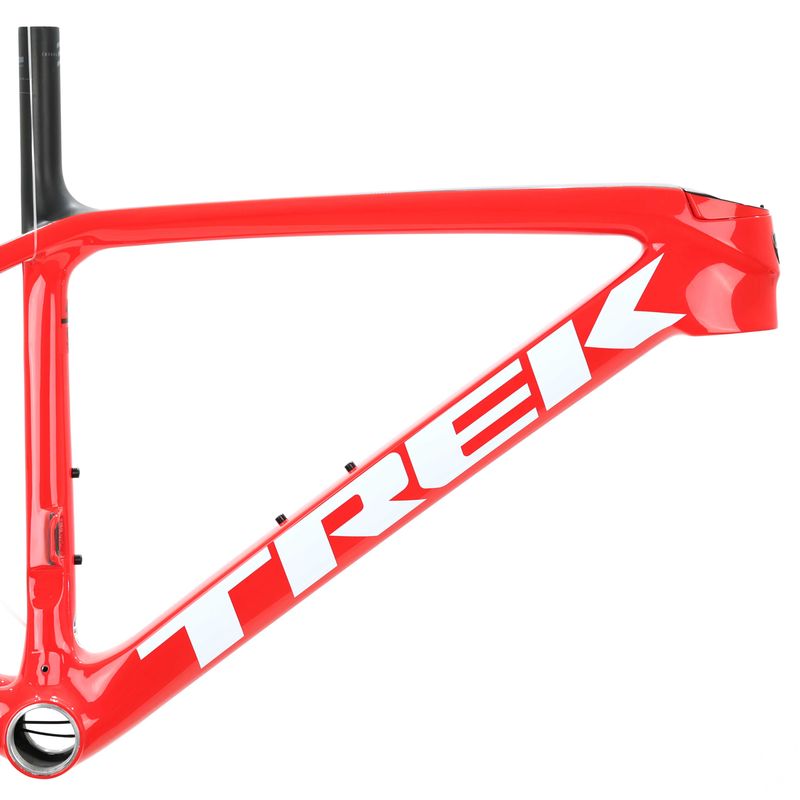

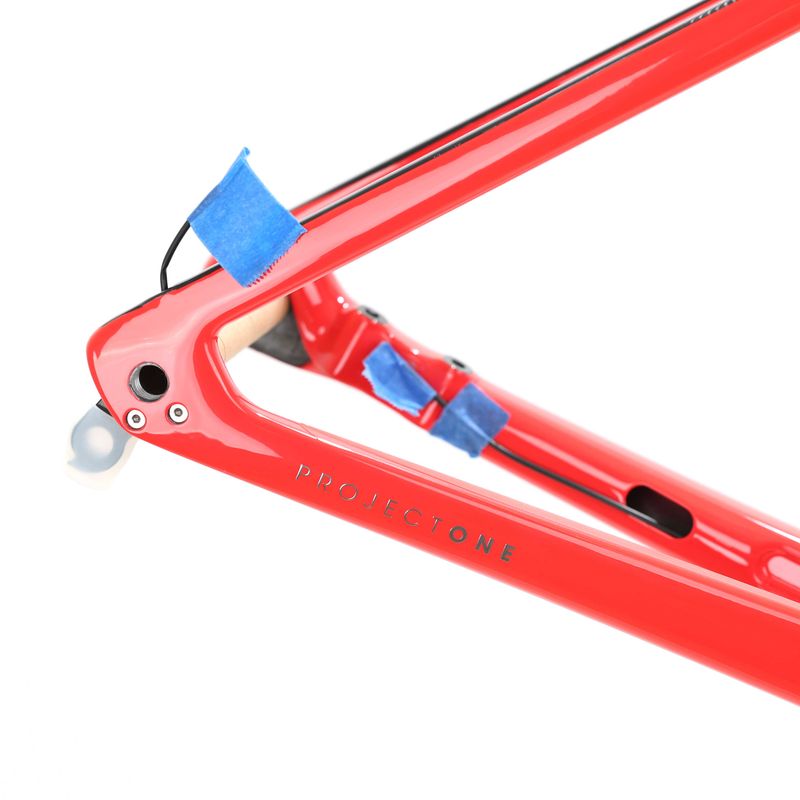

Frame: Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle.
-
Fork: Émonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle.
-
Frame Fit: H1.5 Race.
-
Max Tire Size: 28mm.
-
Front Derailleur: Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs).
-
Max Chainring Size: 1x: 50T, 2x: 53/39.
-

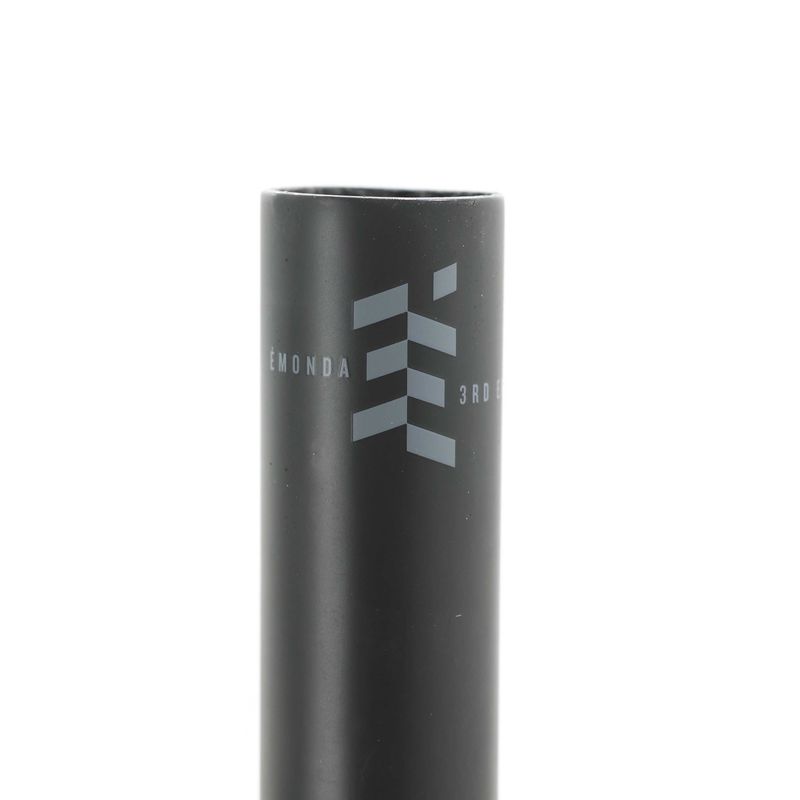

Seatpost: Not included.
-
Rotor Size: Max brake rotor sizes: 160mm front & rear.
Weights:
- 760g - 56cm (frame-only, painted).
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Please Note:

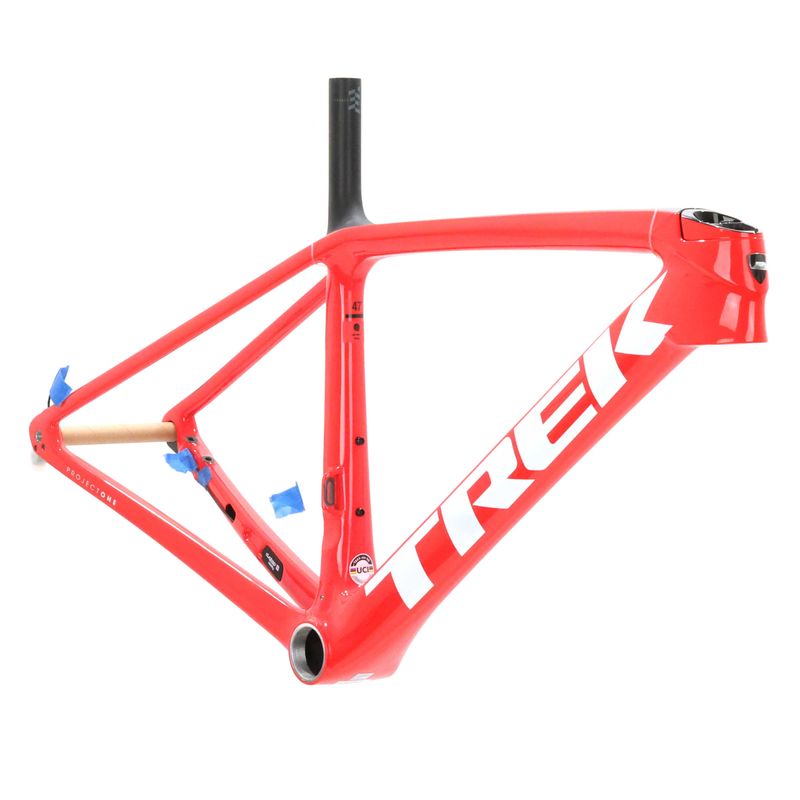

- This frameset is precisely as depicted in the pictures and does not include additional components required for a complete bike assembly. FORK NOT INCLUDED
- Excluded items: Hardware, grommets/cable stops, seatpost, axles, headset, etc
- For expert advice on sourcing the necessary parts and accessories, we recommend consulting your local Trek dealer. Their expertise will help you select the right components based on your specific fit needs and groupset preferences, ensuring a successful and seamless bike build experience.
Warranty Assurance:
- This frame is an authentic Trek product, backed by a comprehensive factory warranty when assembled at an authorized Trek dealer.
- Keep the build invoice and proof of purchase for future reference in case of warranty claims.
|
