Product Description

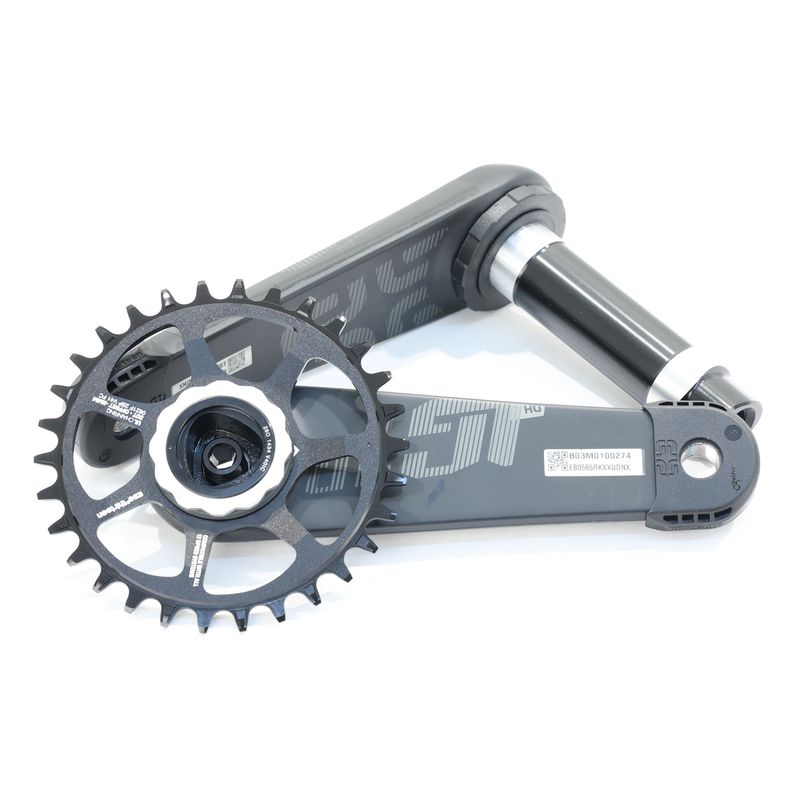

The e*thirteen LG1 Race Carbon Gen 4 crankset is built for aggressive enduro, downhill, and gravity riding where strength, stiffness, and low weight all matter.
This 170mm configuration uses a World Cup DH-rated carbon layup with additional 3K carbon reinforcement, a 30mm P3 Connect spindle, and an included 30T UL chainring. The Gen 4 design reduces overall profile and Q-factor while moving the spindle connection to the non-drive side for easier chainguide setup and drivetrain service.
This crankset is configured with a 55mm chainline and a -5mm offset UL chainring.
Key Features
- Gen 4 LG1 Race Carbon platform
- World Cup DH-rated carbon construction
- Additional 3K carbon reinforcement for impact resistance
- 170mm crank arms
- 30T UL chainring included
- 30mm P3 Connect spindle
- Reduced-profile crank design
- Smaller Q-factor
- Non-drive-side spindle connection simplifies chainguide setup
- Adjustable chainline platform
- 8mm self-extracting crank hardware
Specifications
- Brand: e*thirteen
- Model: LG1 Race Carbon
- Generation: Gen 4
- Crank Length: 170mm
- Chainring: 30T
- Chainring Type: UL
- Chainring Offset: -5mm
- Chainline: 55mm
- Bottom Bracket Shell Width: 73mm
- Spindle Diameter: 30mm
- Spindle Interface: P3 Connect
- Crank Material: Carbon
- Claimed Weight: 444g
Compatibility
Designed for compatible frames using a 73mm bottom bracket shell and an appropriate bottom bracket for the e*thirteen 30mm spindle system.
The Gen 4 platform supports chainline adjustment for applicable non-Boost, Boost, and Super Boost configurations. This crankset is supplied in the 55mm chainline / -5mm chainring offset configuration listed above.
Confirm bottom bracket compatibility, required chainline, chainring clearance, and frame clearance before installation.
Included
- e*thirteen LG1 Race Carbon crankset
- 30T UL chainring
- Crank boots
- APS adjuster
- 8mm self-extractor
