Product Description

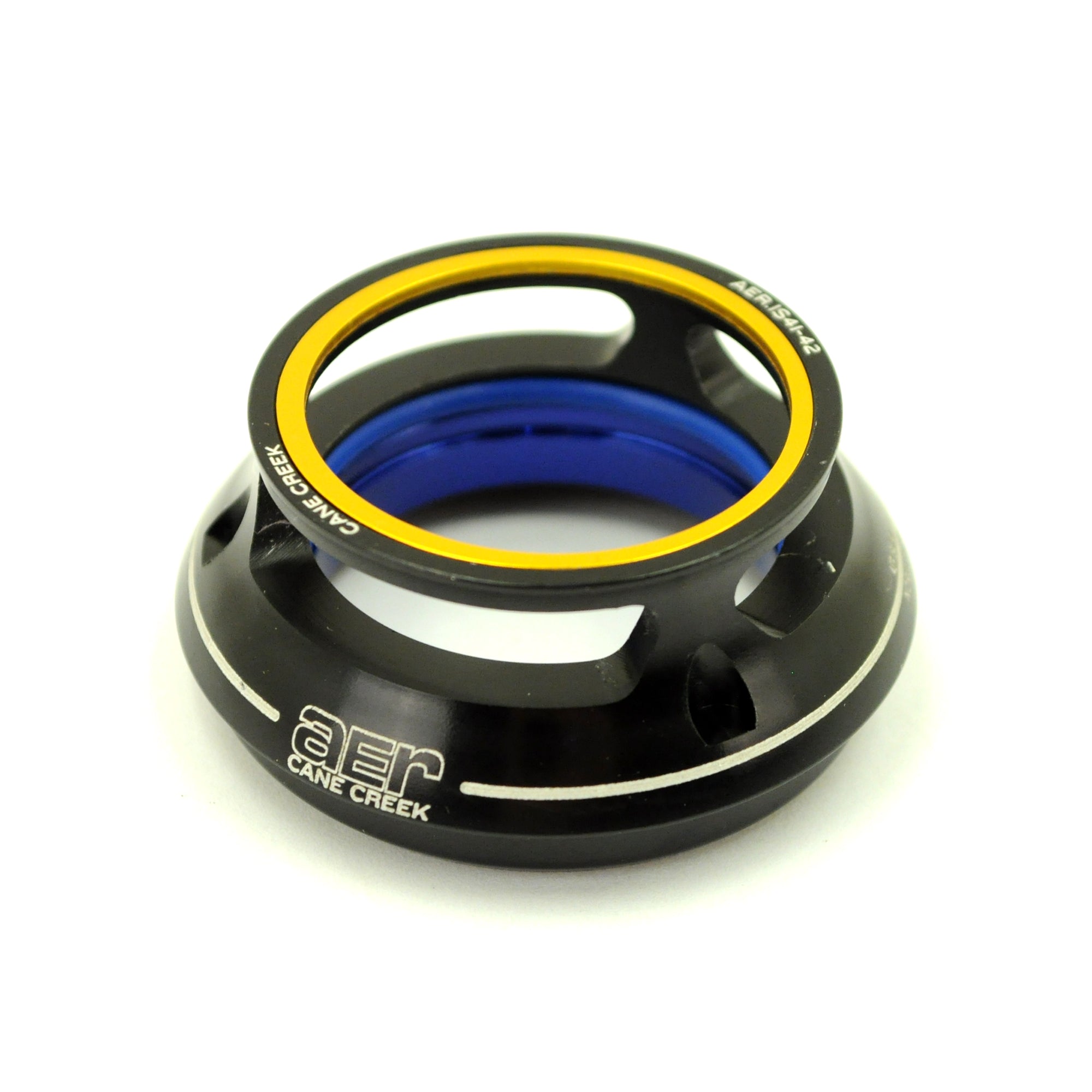

The Cane Creek AER integrated upper headset assembly is an ultralight option designed for riders looking to reduce weight without giving up dependable headset performance.
This IS41 / 28.6mm upper assembly uses Cane Creek’s lightweight Norglide upper bearing system and a precision-machined aluminum upper cover. With a 15mm top stack height and claimed weight of only 17g, it is well suited to lightweight road, gravel, XC, and race-oriented builds using the correct integrated headset standard.
This is an upper headset assembly only, not a complete upper/lower headset.
Key Features
- Cane Creek AER lightweight headset component
- IS41 integrated upper
- Designed for 1-1/8" / 28.6mm fork steerers
- Norglide upper bearing system
- Precision-machined aluminum upper cover
- 15mm stack height
- Integrated headset design
- Extremely lightweight at approximately 17g
- Suitable for road, gravel, XC, and other lightweight builds
Specifications
- Brand: Cane Creek
- Series: AER
- Model: AER IS41
- Product Type: Upper Headset Assembly
- Headset Type: IS / Integrated
- SHIS Upper Standard: IS41 / 28.6
- Steerer Diameter: 28.6mm / 1-1/8"
- Head Tube Inside Diameter: 40mm
- Head Tube Outside Diameter: 45mm
- Top Stack Height: 15mm
- Upper Cover Material: Aluminum
- Upper Cover Color: Black
- Upper Bearing Type: Norglide
- Bearing Outside Diameter: 41mm
- Bearing Inside Diameter: 30mm
- Bearing Inner Angle: 36°
- Bearing Outer Angle: 45°
- Bearing Height: 7.5mm
- Claimed Weight: 17g
Compatibility
Designed for frames using an IS41 integrated upper headset interface with a 1-1/8" / 28.6mm fork steerer.
Headset standards that look similar are not necessarily interchangeable. Confirm your frame’s upper headset specification, bearing diameter, and bearing angles before ordering.
Important Note
This component should not be confused with the small preload stem top cap that bolts into a star nut or expander plug. This is the upper integrated headset cover/bearing assembly that sits between the frame and stem/spacer stack.

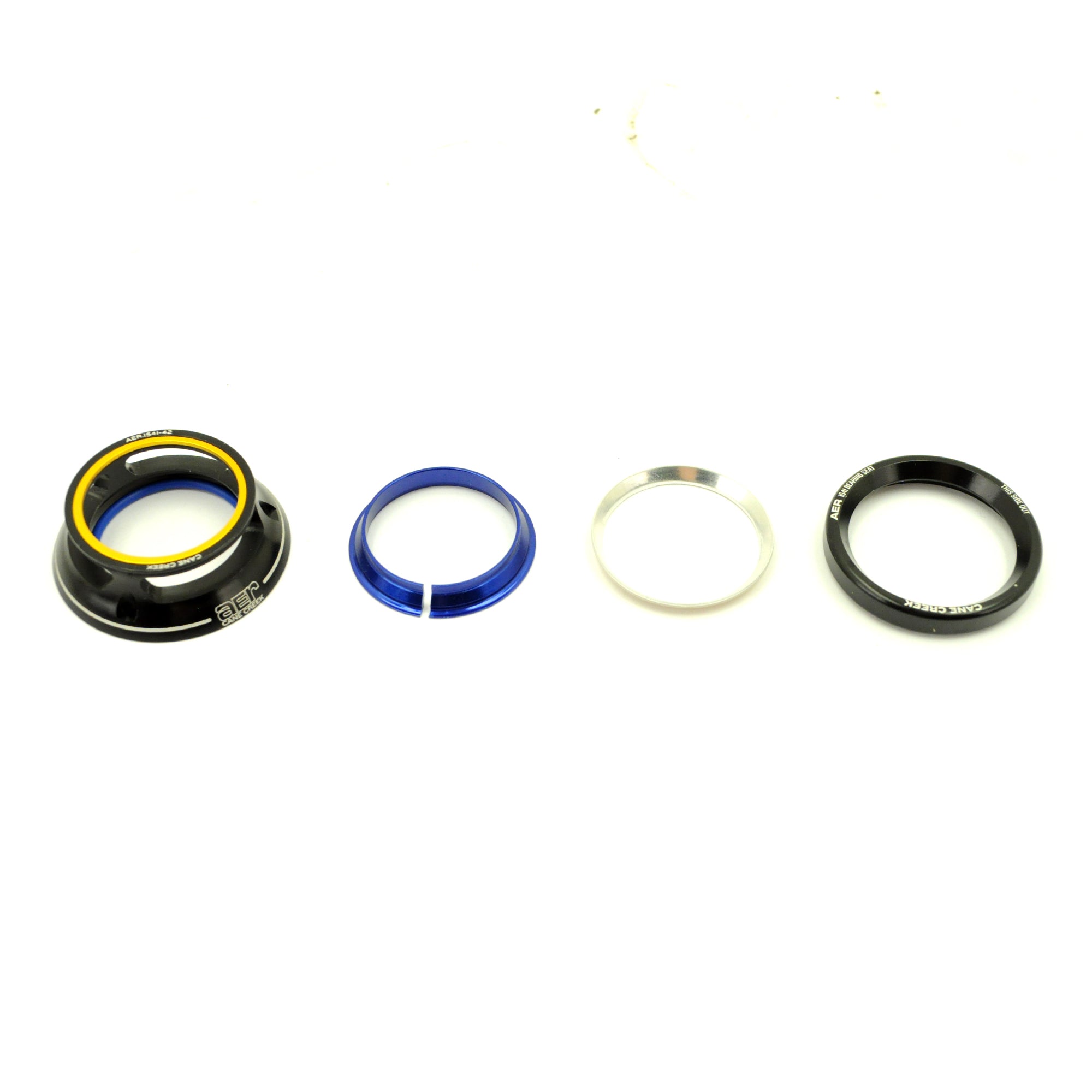

Included
- Cane Creek AER aluminum upper headset cover
- Norglide upper bearing/component assembly
Not Included
- Lower headset assembly
- Crown race
- Star nut or expander plug
- Preload top cap and bolt
- Additional headset hardware unless pictured
Condition
- New
- Never used
- Non-retail / OEM packaged
