CeramicSpeed T47/86 Coated Bottom Bracket SRAM GXP 24/22mm Trek 85.5mm

SKU:

5711050040827

$149.95 $505.99
by CeramicSpeed
Default

Product Description
The CeramicSpeed T47/86 Coated Bottom Bracket combines the security of a threaded T47 interface with premium CeramicSpeed bearings for reduced friction, improved durability, and smooth drivetrain performance.

Designed for SRAM and Quarq GXP cranksets with 24mm drive-side / 22mm non-drive-side spindles, this inboard T47 bottom bracket is compatible with standard 86mm T47 inboard shells as well as applicable Trek 85.5mm T47 frames.

The Coated version features a thin metallic coating applied to the hardened-steel bearing races, creating a harder, smoother surface designed to further reduce drag and wear.

Key Features

  • Genuine CeramicSpeed bottom bracket

  • Premium Coated CeramicSpeed bearings

  • Designed for SRAM / Quarq GXP cranksets

  • 24mm drive-side / 22mm non-drive-side spindle compatibility

  • T47 threaded inboard design

  • Compatible with applicable 85.5mm Trek T47 frames

  • Compatible with standard 86mm T47 inboard frames

  • Grade 3 silicon nitride ceramic bearing balls

  • Hardened-steel bearing races

  • 3-micron metallic coating on bearing races

  • Bearings supplied installed in threaded cups

  • Serviceable design

  • Installation uses compatible BBT-47 style bottom bracket tool

Specifications

  • Brand: CeramicSpeed

  • Manufacturer Part Number: 107334

  • Product Type: Bottom Bracket

  • BB Standard: T47 / T47-86 Inboard

  • Crank Compatibility: SRAM / Quarq GXP

  • Spindle Diameter: 24mm Drive Side / 22mm Non-Drive Side

  • Bearing Type: CeramicSpeed Coated

  • Ceramic Material: Grade 3 Silicon Nitride

  • Frame Compatibility: Applicable 85.5mm Trek T47 and 86mm T47 inboard shells

  • Crank Width: 92mm

  • Axle Included: No

  • Net Weight: 116g

  • Gross Weight: 187g

Compatibility
Compatible with applicable SRAM and Quarq GXP cranksets using the stepped 24mm/22mm spindle standard.

Designed for:

  • T47/86 inboard bottom bracket shells

  • Standard 86mm T47 frame designs

  • Applicable Trek 85.5mm T47 frames

This bottom bracket is not for SRAM DUB, straight 24mm Shimano-style, or 30mm crank spindles.

Confirm both your frame's T47 shell configuration and your crank spindle standard before ordering.

Included

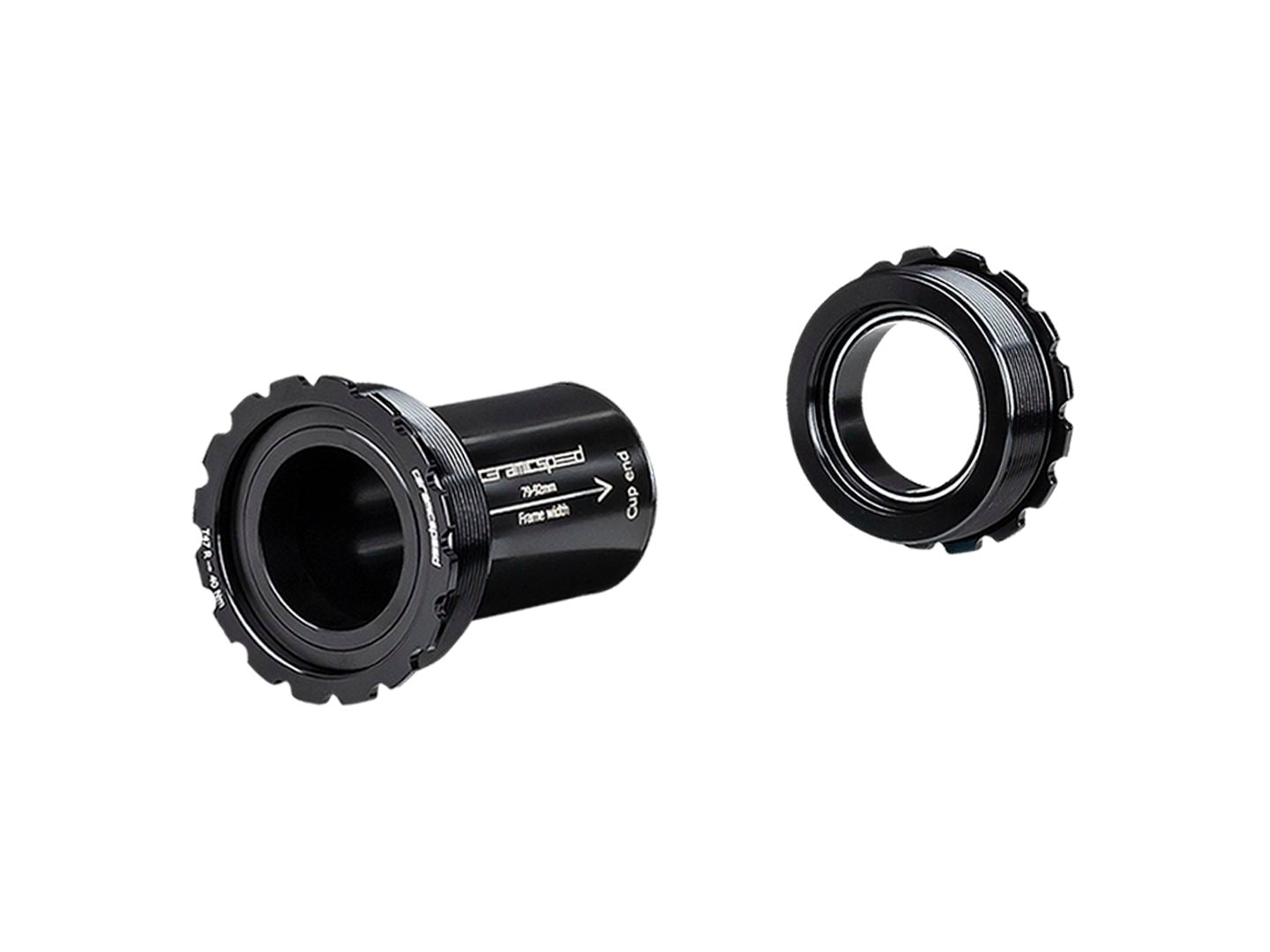

  • 2 threaded bottom bracket cups with CeramicSpeed Coated bearings installed

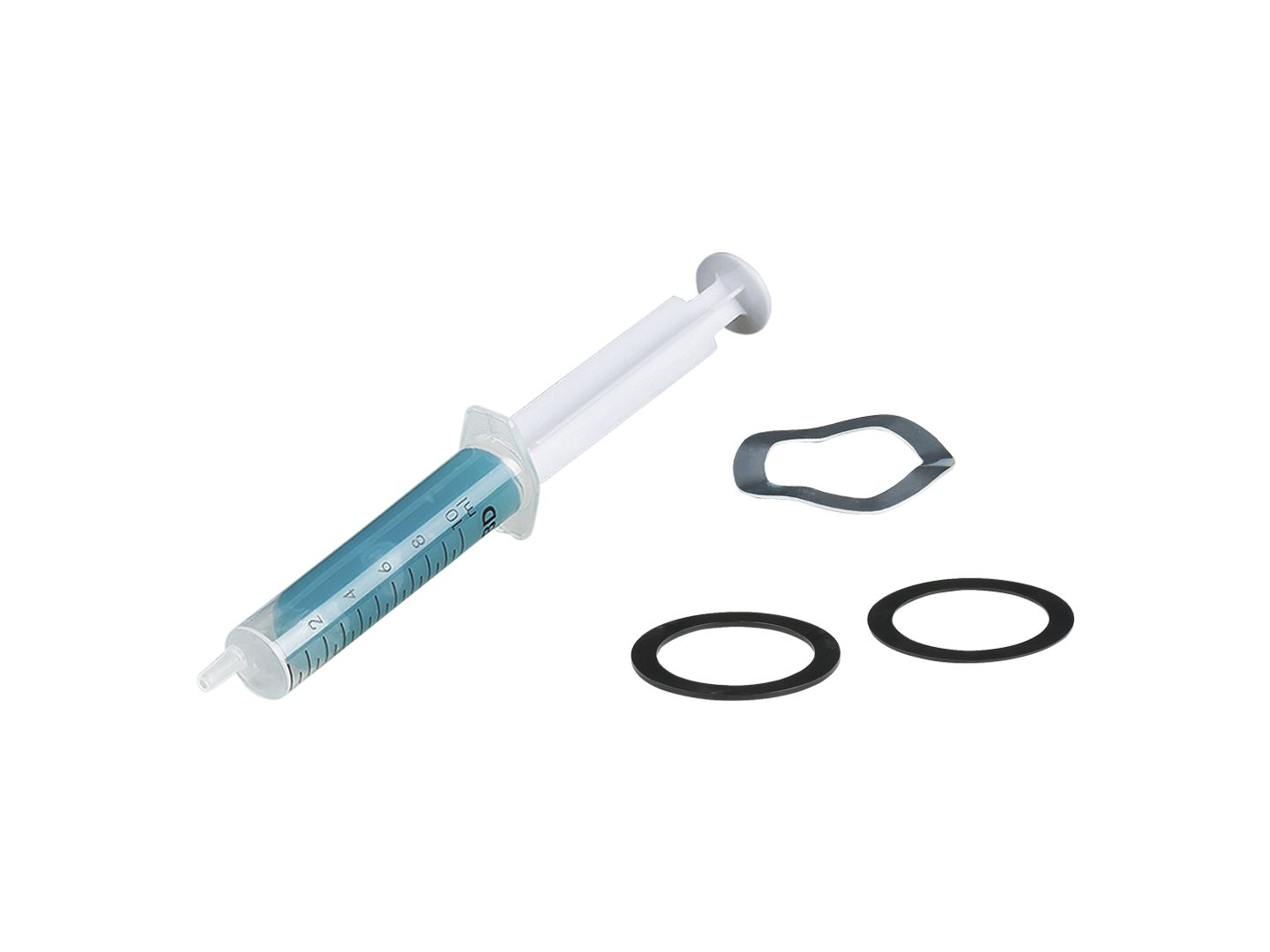

  • 2 dust covers

  • 1mm spacer

  • 0.5mm spacer

  • GXP wave washer

  • Spacer tube

  • CeramicSpeed All Round Grease

Condition

  • New

  • Genuine CeramicSpeed component

  • Retail packaged
