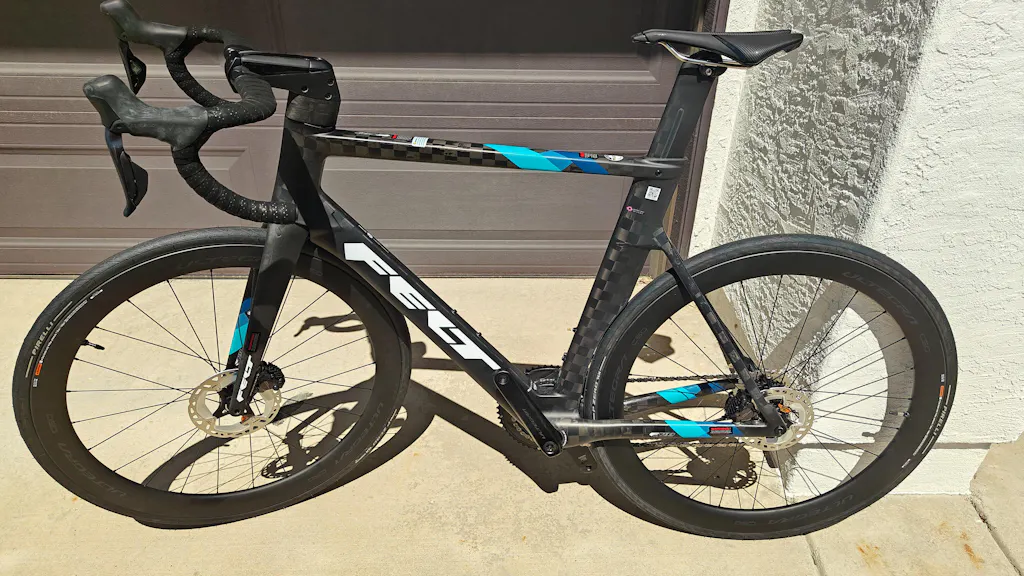

Felt AR FRD Ultimate Road Bike, Ultegra Di2, Model Year 2022

SKU:

9010654081851

$3,999.95 $8,999.00
by Felt
Size

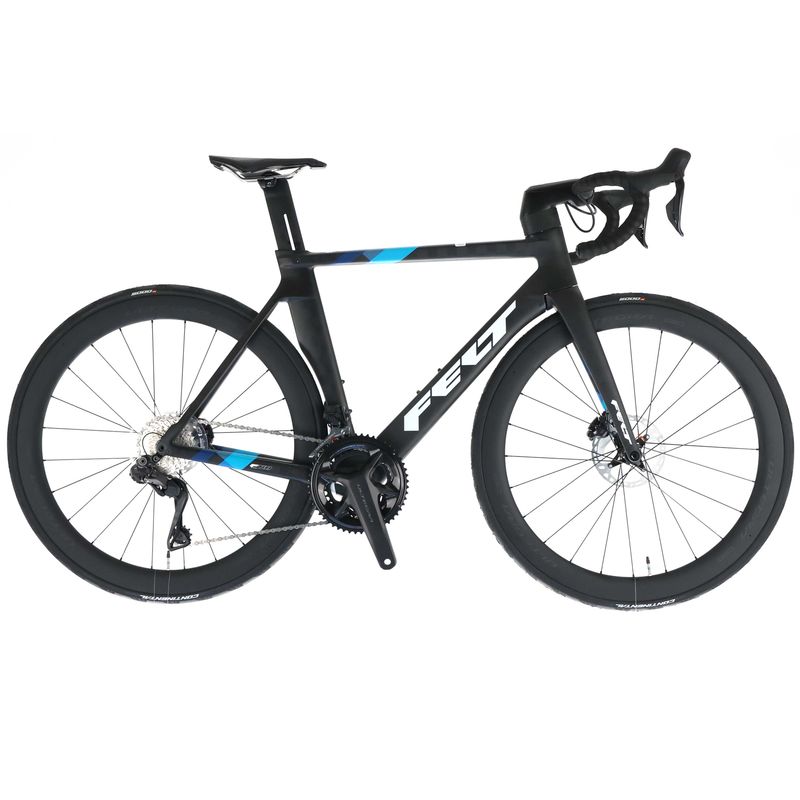

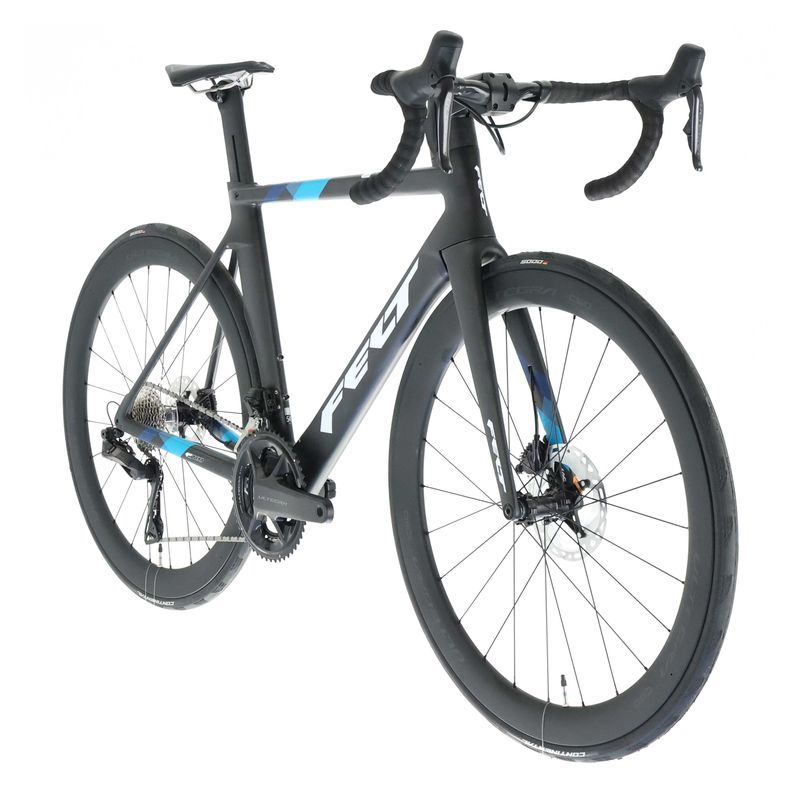

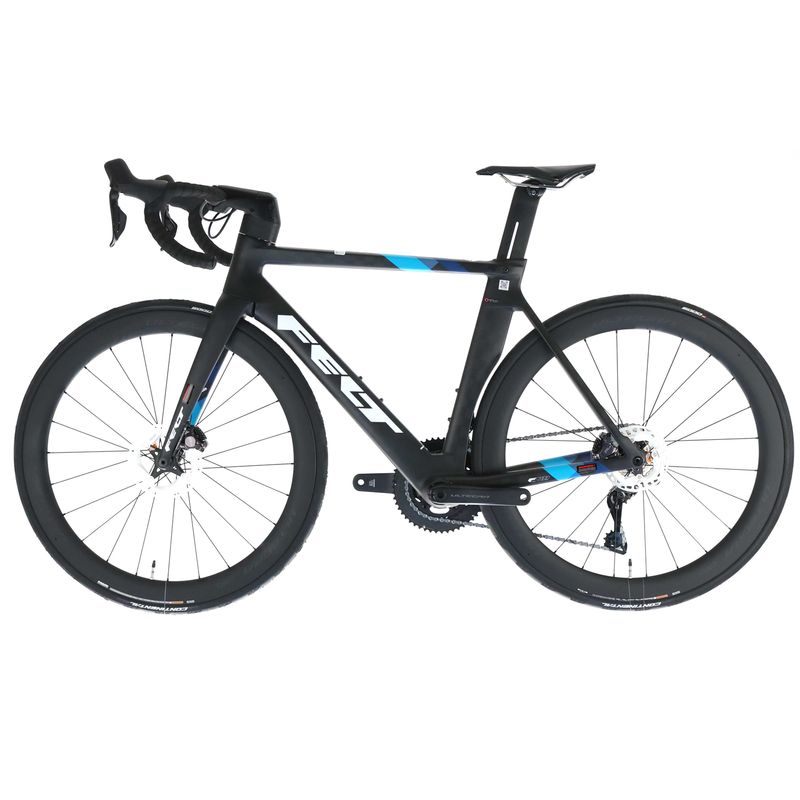

Felt AR FRD Ultimate | Shimano Ultegra Di2 | Carbon Aero Road Bike

The Felt AR FRD Ultimate brings world-class aerodynamics and stiffness to riders who want elite performance in a race-ready platform. Built with the UHC Ultimate + TeXtreme carbon frameset and equipped with a full Shimano Ultegra Di2 12-speed electronic drivetrain, this model delivers crisp shifting, powerful hydraulic braking, and efficient road handling.

Paired with a Shimano Ultegra carbon wheelset, Continental GP5000 tires, and a PRO Vibe Aero carbon handlebar, this AR FRD build offers speed, stability, and adjustability in a refined package. It is an ideal choice for dedicated road riders and racers seeking premium performance from a proven aero platform.

Key Features

  • UHC Ultimate + TeXtreme carbon frame and fork for maximum aerodynamic efficiency

  • Shimano Ultegra Di2 12-speed drivetrain with precise electronic shifting

  • Shimano Ultegra hydraulic disc brakes with MT800 rotors for consistent braking

  • Shimano Ultegra WH-R8170 tubeless-ready carbon wheels

  • PRO Vibe Aero carbon handlebar for stiffness and aerodynamic advantage

  • Continental Grand Prix 5000 TR tires for modern tubeless performance

  • Semi-integrated front end for easy fit adjustments and cleaner maintenance

  • 129 kg permissible system weight (rider, bike, cargo)

Detailed Specifications

Frameset

  • Frame: Felt AR 3.0, UHC Ultimate + TeXtreme carbon

  • Fork: Felt AR 3.0, UHC Ultimate + TeXtreme carbon

Brakes and Drivetrain

  • Front Brake: Shimano BR-R8170 hydraulic disc, 2-piston

  • Front Rotor: Shimano RT-MT800, 160 mm, CenterLock

  • Rear Brake: Shimano BR-R8170 hydraulic disc, 2-piston

  • Rear Rotor: Shimano RT-MT800, 140 mm, CenterLock

  • Front Derailleur: Shimano Ultegra Di2 FD-R8150

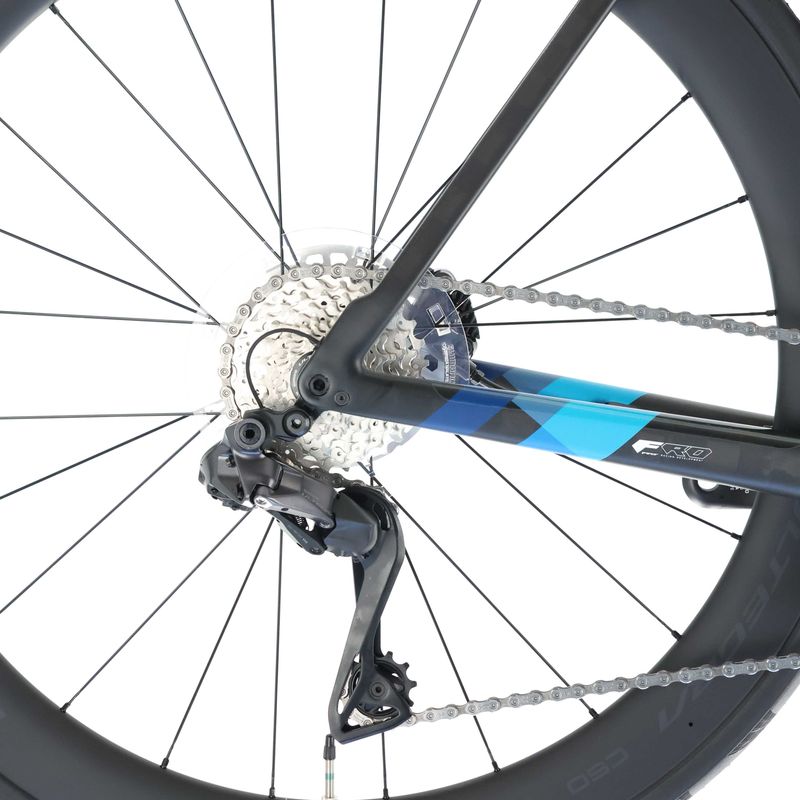

  • Rear Derailleur: Shimano Ultegra Di2 RD-R8150, Shadow

  • Cassette: Shimano CS-R8100, 11 to 30T

  • Chain: Shimano CN-M8100

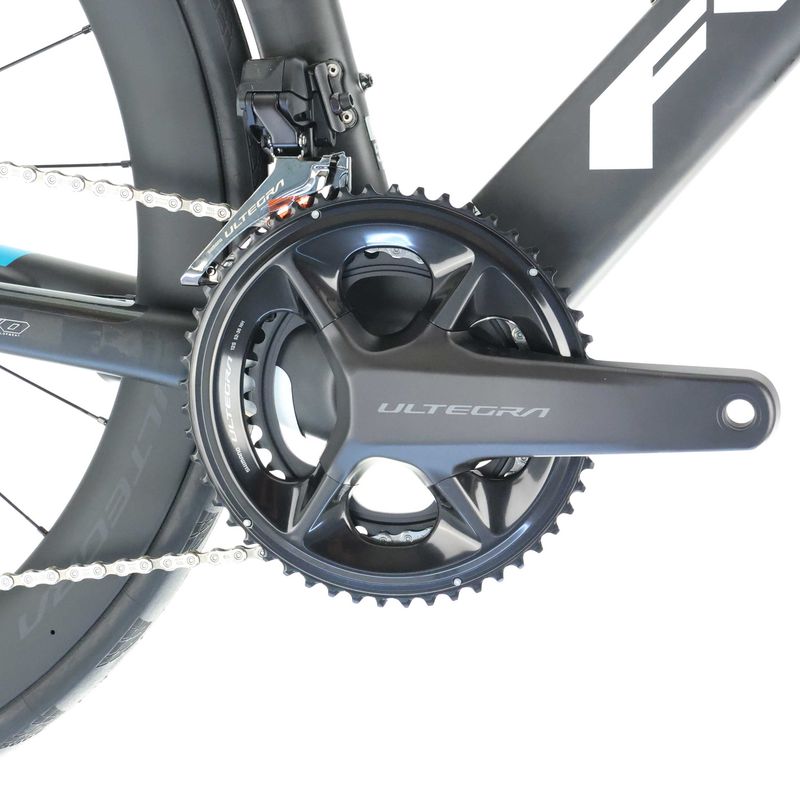

  • Crankset: Shimano Ultegra FC-R8100, 52 to 36T

  • Shift Levers: Shimano Ultegra Di2 ST-R8170

Wheels and Tires

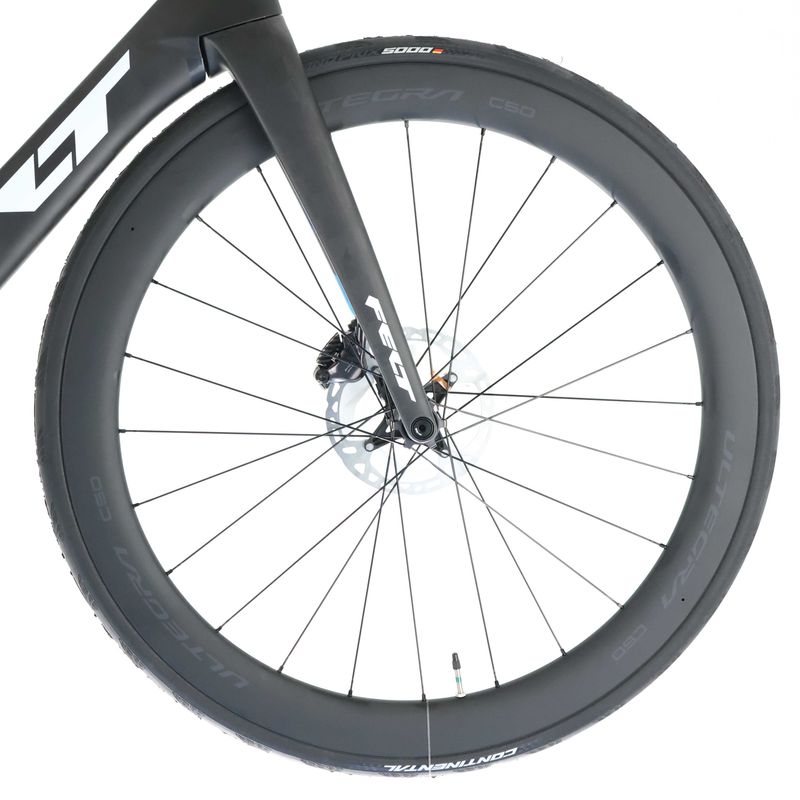

  • Wheelset: Shimano Ultegra WH-R8170, tubeless ready, CenterLock, 12x100 front / 12x142 rear

  • Tires: Continental Grand Prix 5000 TR, 700x25

Cockpit

  • Stem: Felt Sprint, –6 degrees

  • Headset: IS (NO.44)

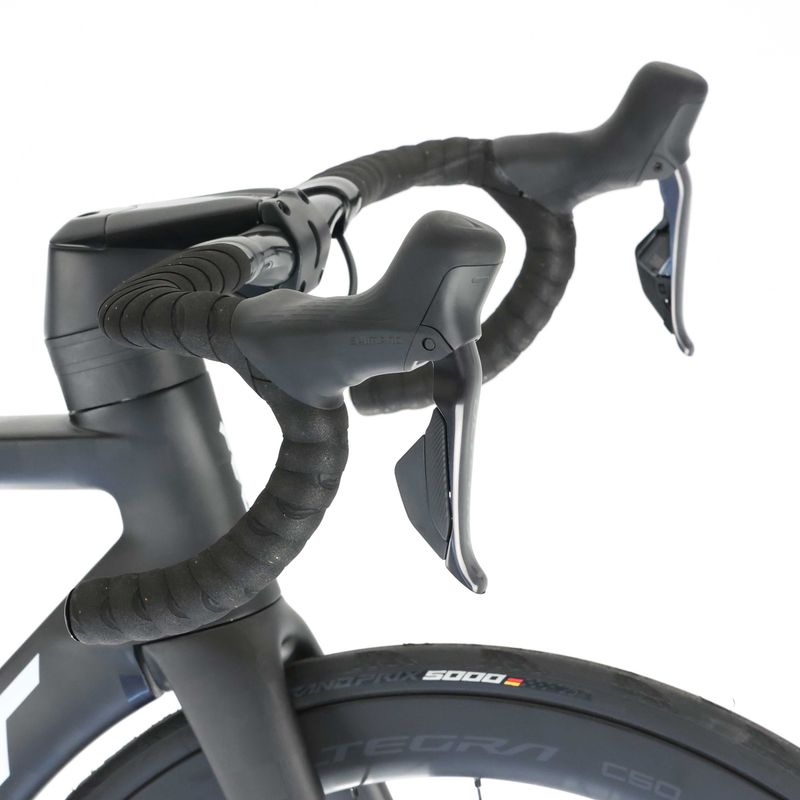

  • Handlebar:

    • 48 cm: PRO Vibe Aero, 380 mm

    • 51 cm: PRO Vibe Aero, 400 mm

    • 54, 56, 58, 61 cm: PRO Vibe Aero, 420 mm

  • Bar Tape: Felt VelvetGel tape with reflective 3M base and Felt Bubble-Tech F-Wing bar end plugs

Seating

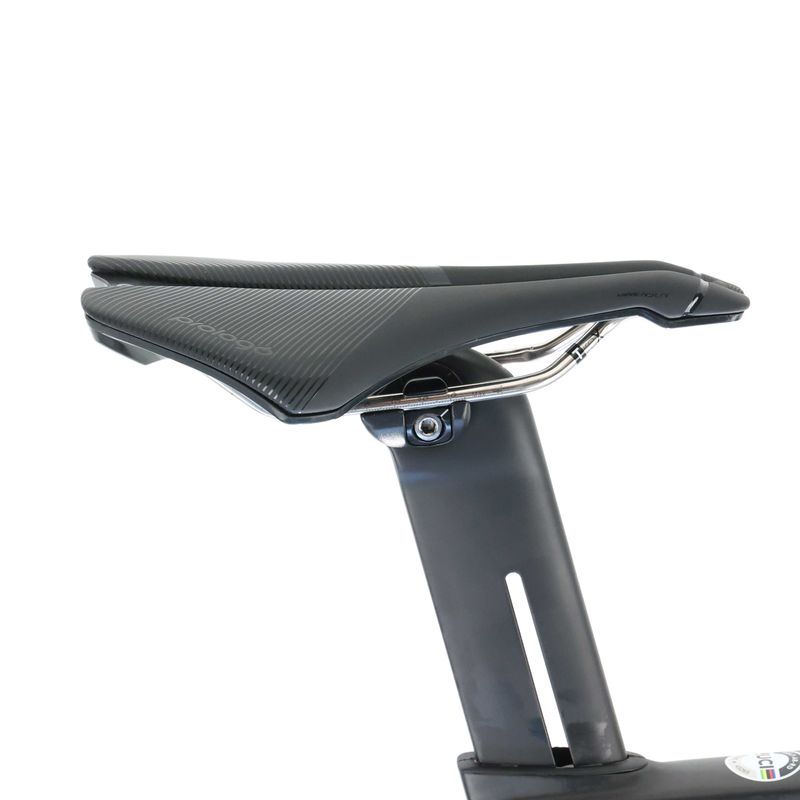

  • Saddle: Prologo Dimension 143 TIROX

  • Seatpost: Felt AeroRoad IL 2.0, 350 mm

Additional Information

  • Permissible System Weight: 129 kg
