Product Description
This Shimano Dura-Ace R9270 Di2 complete groupset is Shimano’s flagship 12-speed electronic road kit, built for riders who want the lightest, fastest, and most refined mechanical advantage Shimano offers. It brings together pro-level Di2 electronic shifting, top-tier braking, and elite drivetrain efficiency in one complete system for a no-compromise road bike build.
Dura-Ace Di2 delivers Shimano’s fastest-ever shifting with instant, precise gear changes at the push of a button. The semi-wireless cockpit keeps the front end exceptionally clean while preserving Shimano’s renowned reliability. Paired with HYPERGLIDE+ drivetrain technology and ICE TECHNOLOGIES FREEZA braking performance, this kit is built for riders chasing the best possible road feel, race performance, and long-term refinement.
Key Features
- Complete Shimano Dura-Ace R9270 Di2 12-speed groupset
- Premium electronic shifting with Shimano Di2 technology
- Semi-wireless cockpit for a cleaner front-end setup
-
HYPERGLIDE+ cassette technology for smoother shifting under load
- Hydraulic disc brakes with top-level modulation and control
-
ICE TECHNOLOGIES rotors for improved heat management and more consistent braking
- Includes crankset, cassette, chain, derailleurs, battery, wires, charger, brakes, and rotors
- Ideal for high-end road bike builds using a 2x12 Shimano electronic drivetrain
Groupset Highlights
-
Di2 Shifting: Shimano’s fastest electronic shifting with precise, instant response
-
E-Tube Project Cyclist App: Wireless smartphone connectivity for customization, setup, maintenance, and firmware updates
-
HYPERGLIDE+: Smooth, stable shifting up and down the cassette, even while pedaling hard
-
ICE TECHNOLOGIES: Improved heat dissipation for quieter, more consistent braking performance

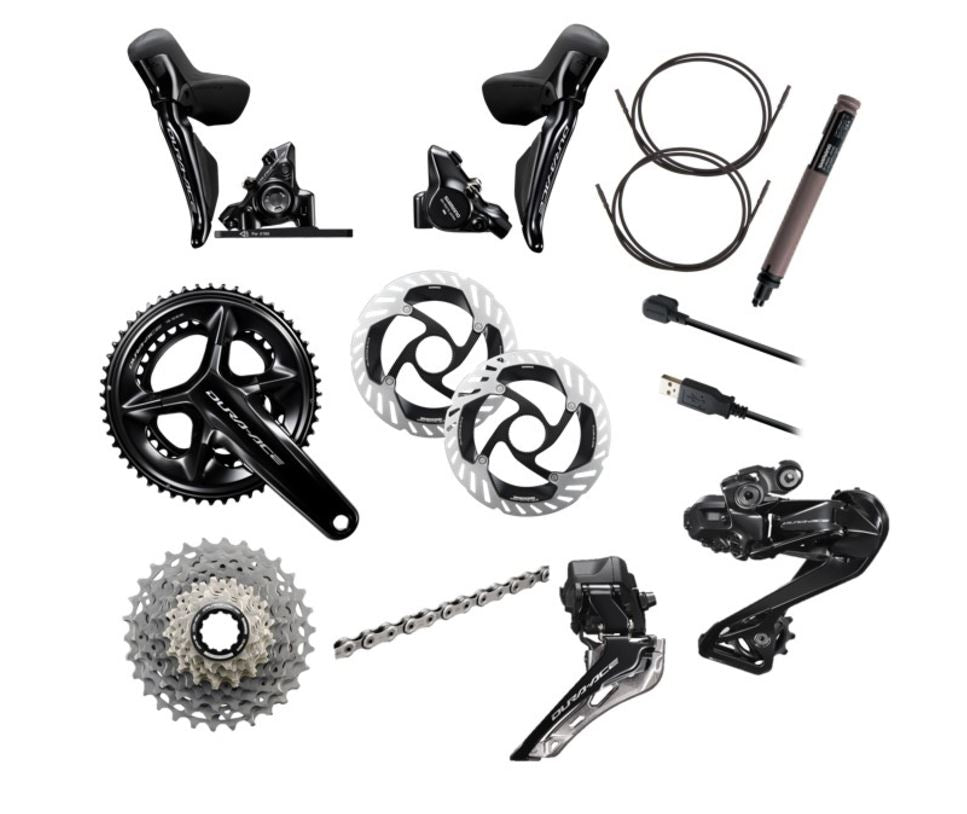

Included in This Kit
Each kit includes one each of the following:
-

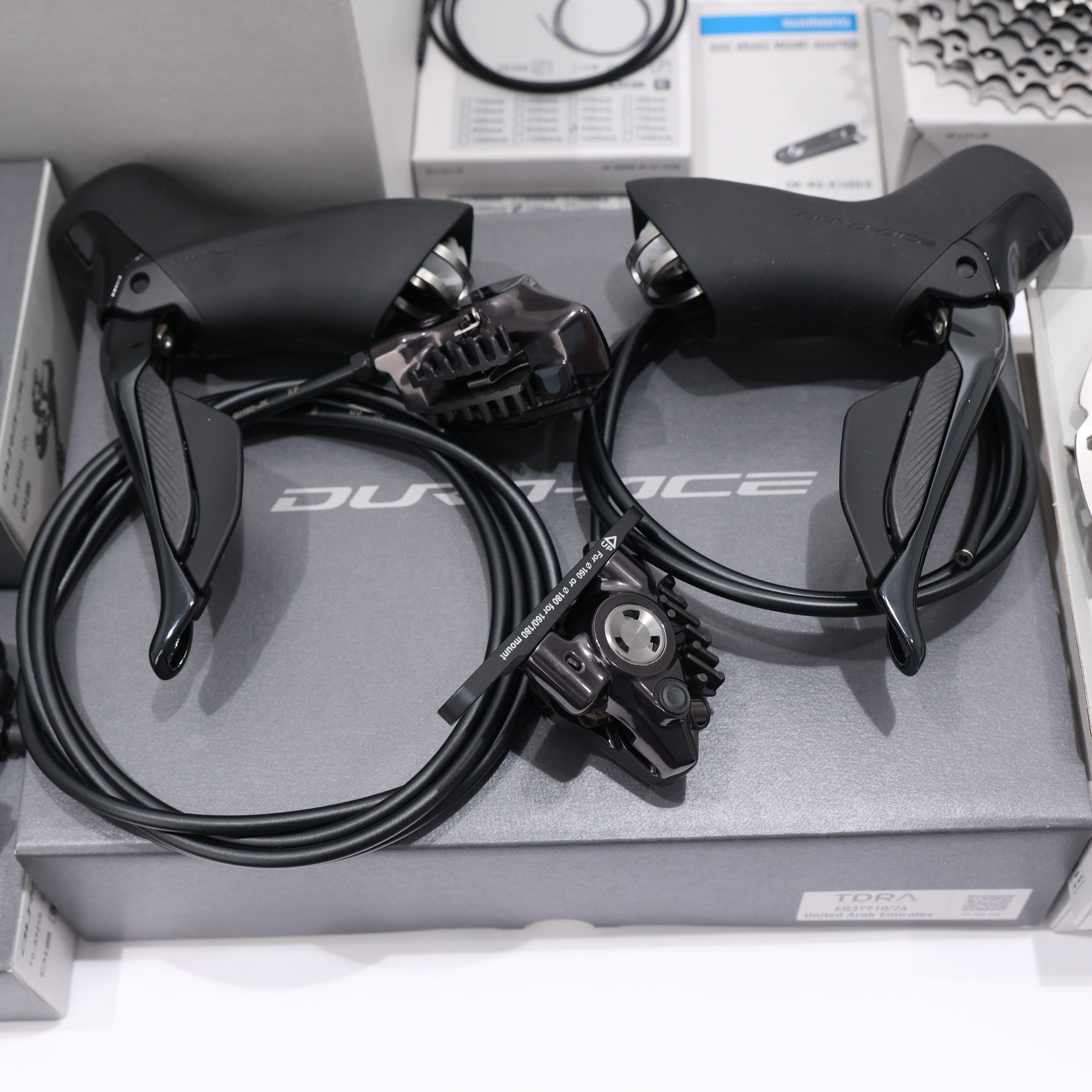

ST-R9270 hydraulic Di2 shift/brake levers, pair
-
BR-R9270 hydraulic flat mount disc brake calipers, front and rear
-
SM-BH90 brake hoses, 1000mm front and 1700mm rear
-

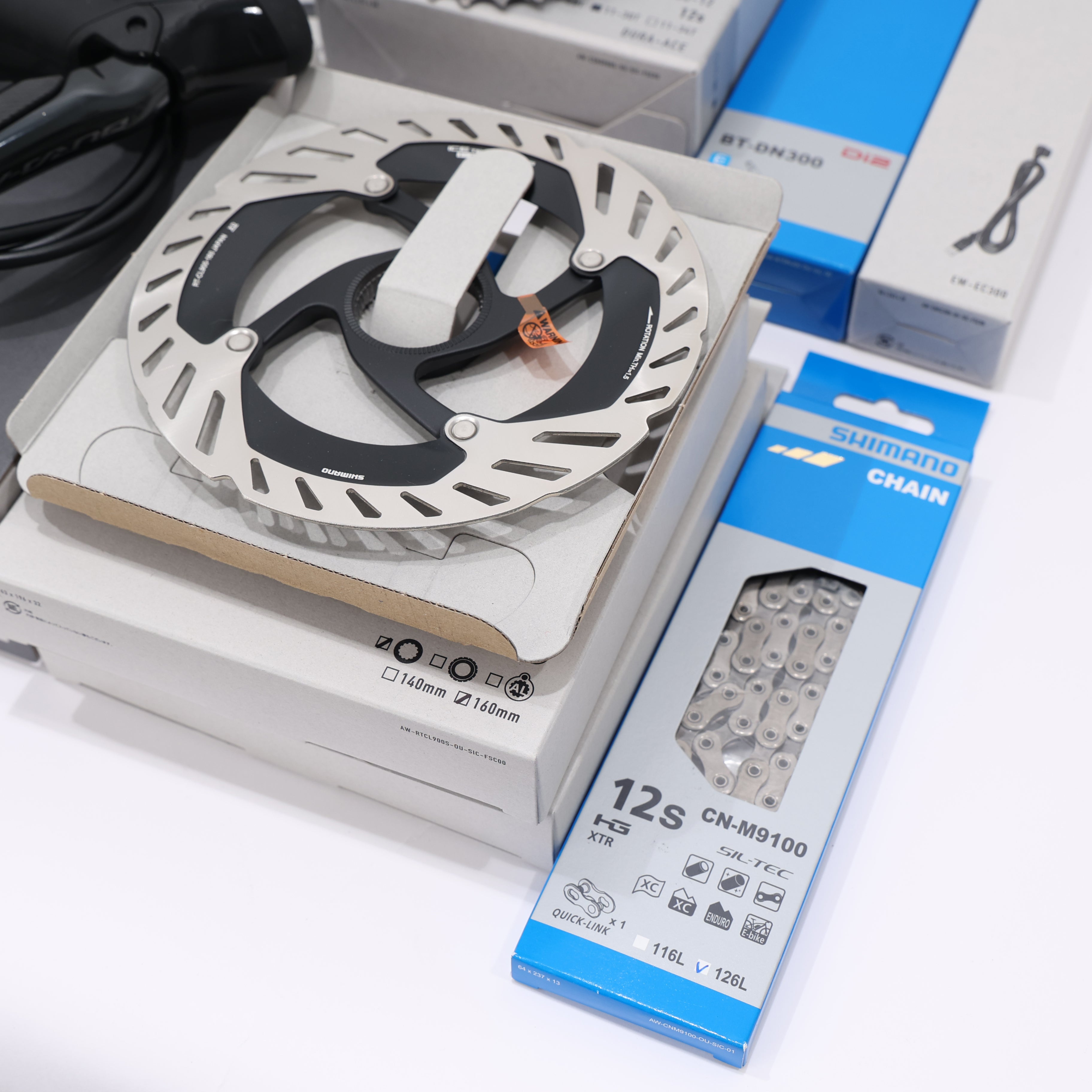

RT-CL900 Center Lock brake rotors, 160mm front and rear
-

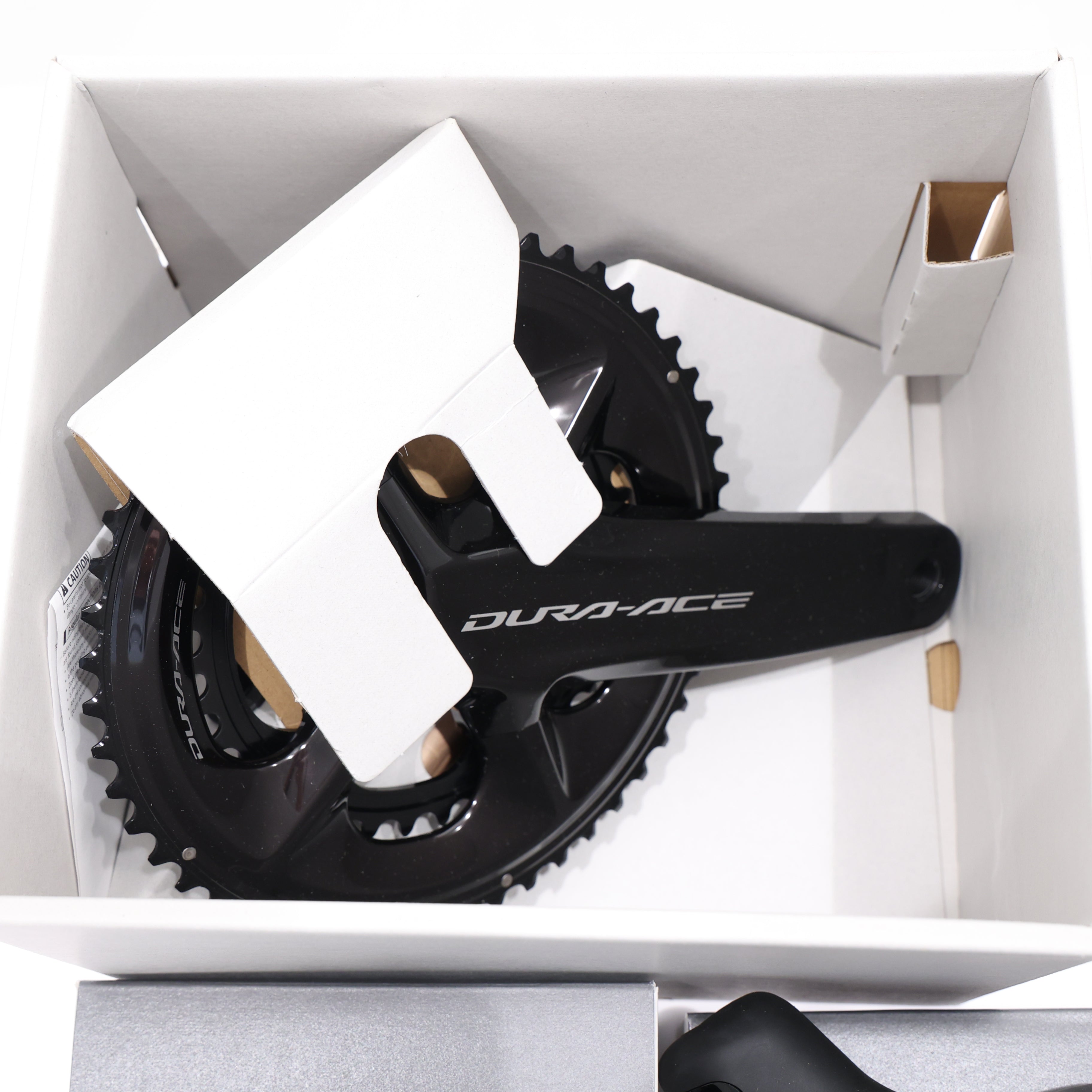

FC-R9200 crankset, 170mm, 52/36T
-

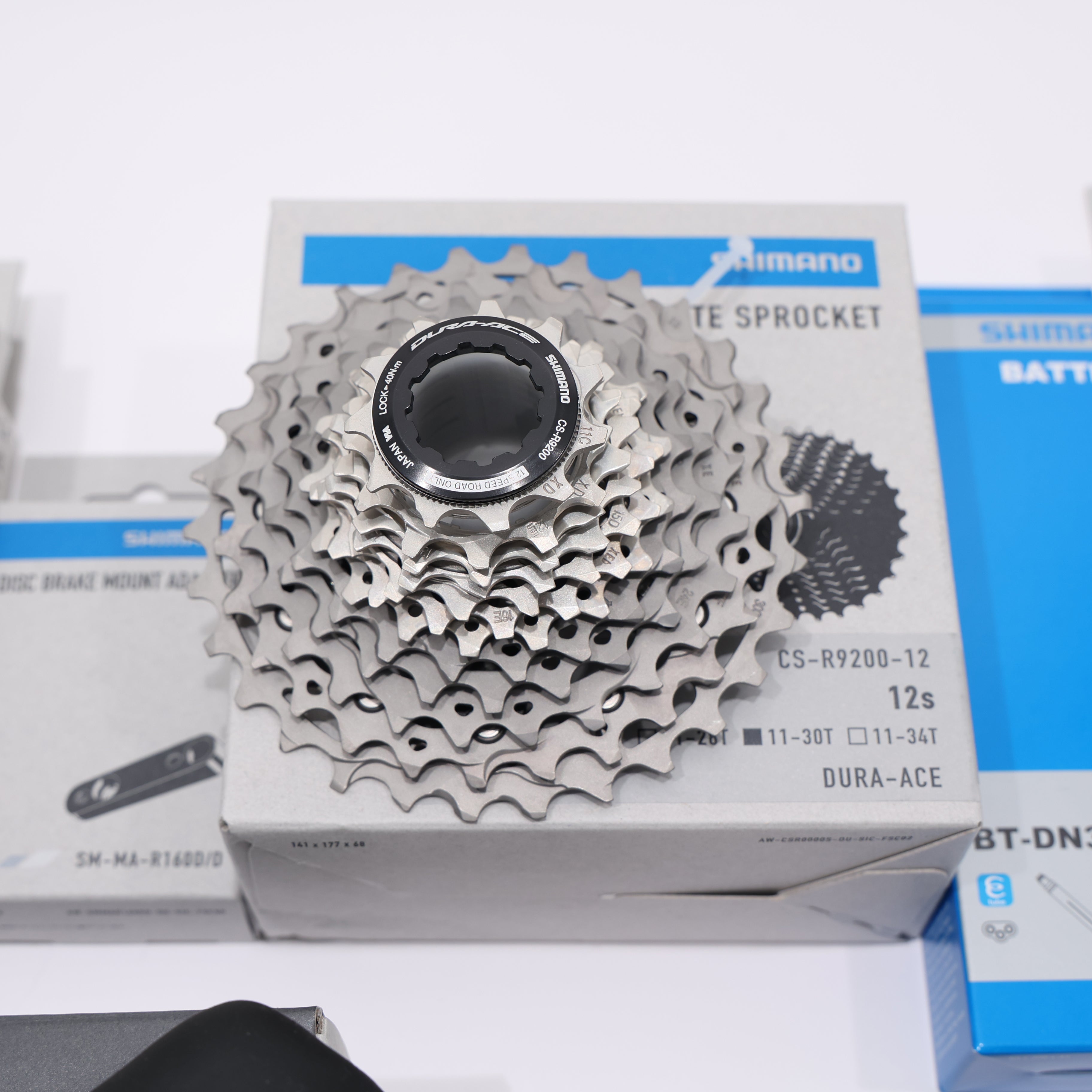

CS-R9200 cassette, 11-30T, 12-speed
-

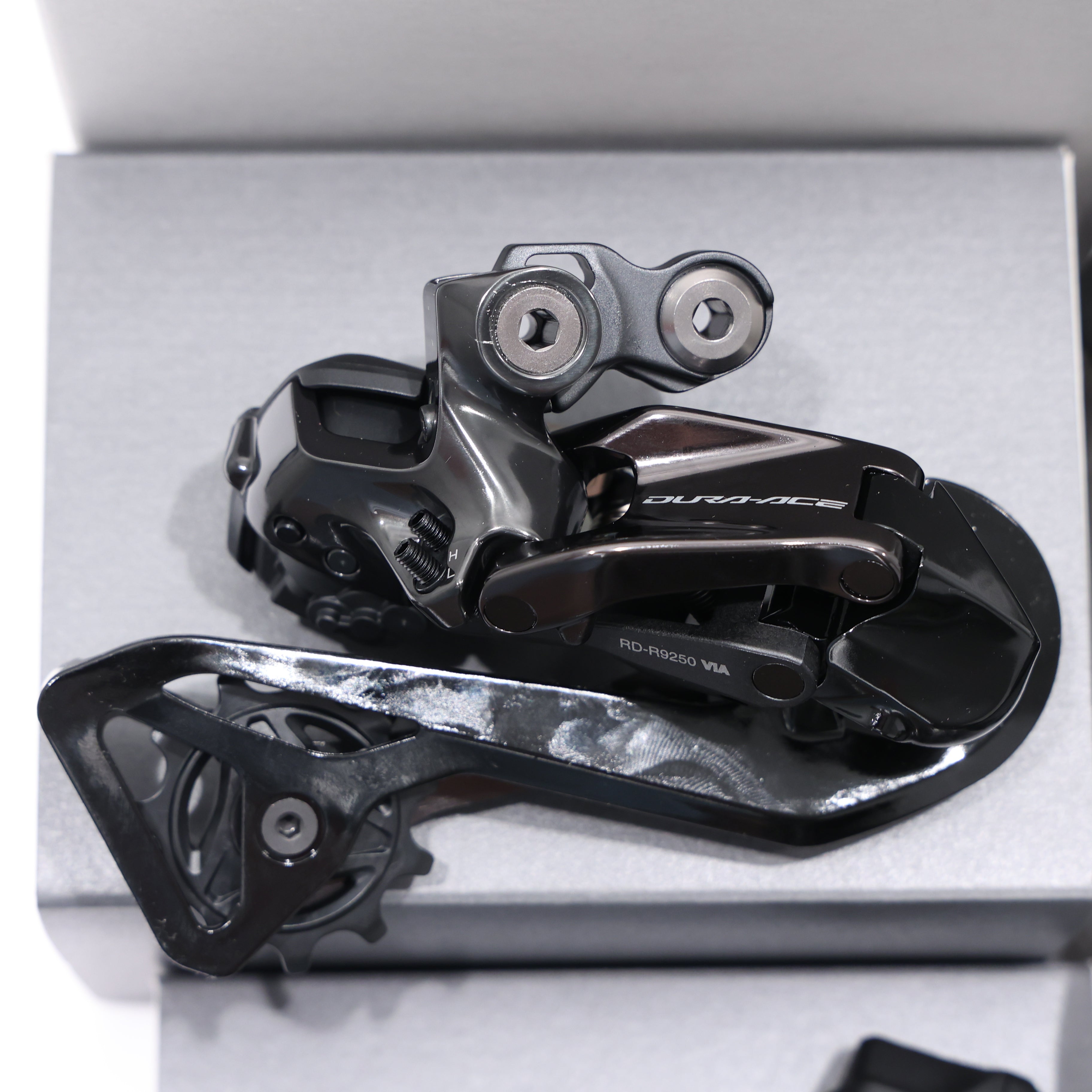

RD-R9250 Di2 rear derailleur
-

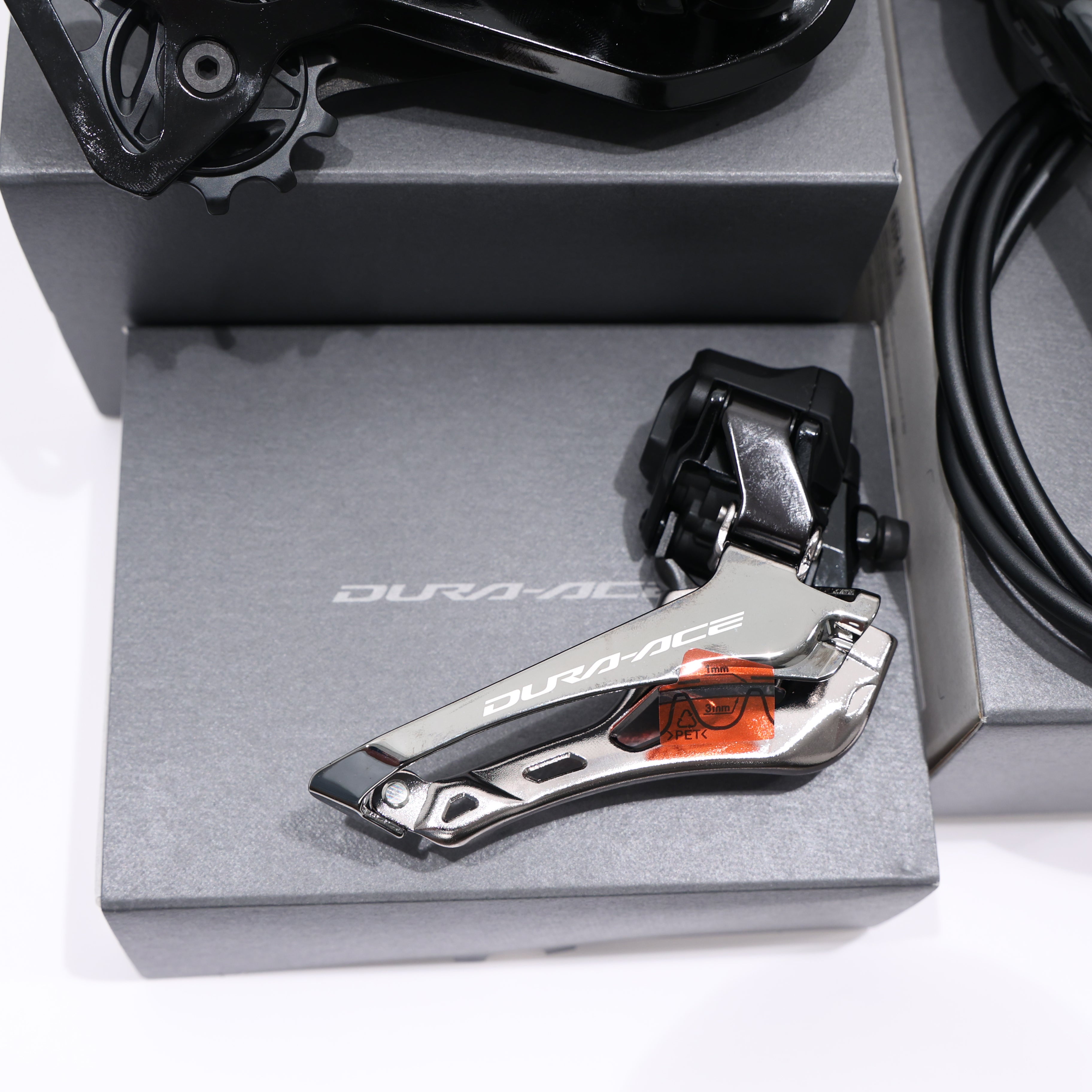

FD-R9250 Di2 front derailleur
-

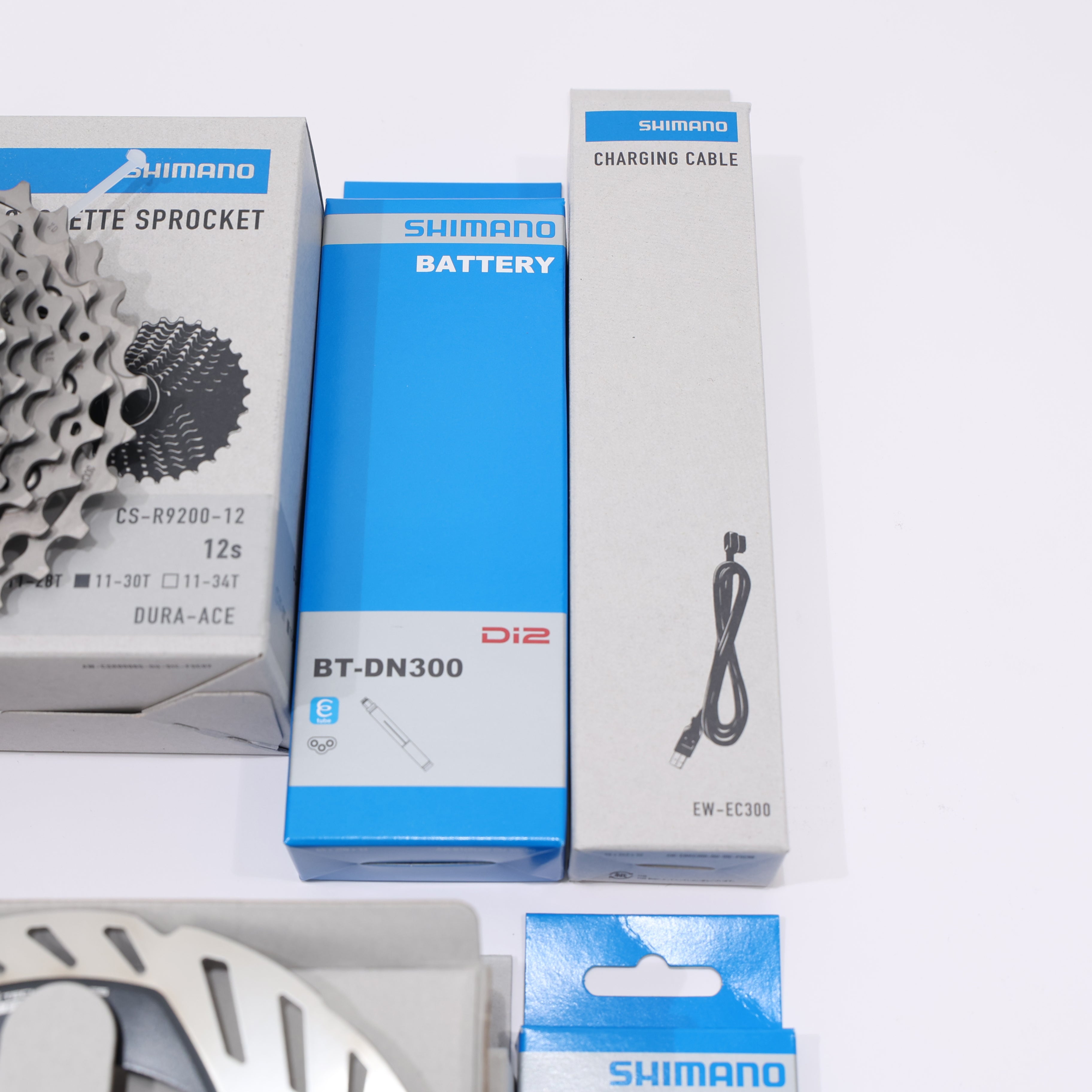

BT-DN300 Di2 battery
-
CN-M9100 12-speed chain
-
EW-SD300 wires, 900mm and 1200mm
-
EW-EC300 Di2 battery charger
-
SM-MA-R160 rear brake adapter for 140mm to 160mm rear setup
Specifications
Shifters / Brake Levers
- Model: Shimano Dura-Ace ST-R9270
- Type: Di2 hydraulic disc shift/brake levers
- Speed: 12-speed
- Position: Front and rear pair
Brake Calipers
- Model: Shimano Dura-Ace BR-R9270
- Type: Hydraulic disc, flat mount
- Position: Front and rear pair
Brake Hoses
- Model: SM-BH90
- Lengths: 1000mm front, 1700mm rear
Rotors
- Model: Shimano RT-CL900
- Mount: Center Lock
- Size: 160mm front, 160mm rear
Crankset
- Model: Shimano Dura-Ace FC-R9200
- Length: 170mm
- Chainrings: 52/36T
- Speed: 12-speed
Cassette
- Model: Shimano Dura-Ace CS-R9200
- Range: 11-30T
- Speed: 12-speed
Rear Derailleur
- Model: Shimano Dura-Ace RD-R9250
- Type: Di2 electronic
Front Derailleur
- Model: Shimano Dura-Ace FD-R9250
- Type: Di2 electronic
Battery
Chain
- Model: CN-M9100
- Speed: 12-speed
Di2 Wires
- Model: EW-SD300
- Lengths: 900mm, 1200mm
Charger
Brake Adapter
- Model: SM-MA-R160
- Application: Rear 140mm to 160mm
Compatibility
Compatible with:
- Road frames designed for Shimano 2x12 Di2 drivetrains
-
Flat mount disc brake road frames and forks
-
Center Lock rotor-compatible hubs
- Frames accommodating internal Di2 battery
- Rear wheel setups compatible with 11-30T 12-speed Shimano road cassette
Please confirm frame, bottom bracket, rotor mount, wire length, and axle/brake compatibility before purchase.
Warranty and Notes
- Premium Shimano Dura-Ace Di2 12-speed electronic disc road groupset
- Substitutes NOT AVAILABLE
- Includes only the parts listed above
- Please review all included items and compatibility needs before purchase
- Direct From Shimano North America
Condition
- New
- Genuine OEM product
- Includes only what is shown or described
- NON Retail Packaged
